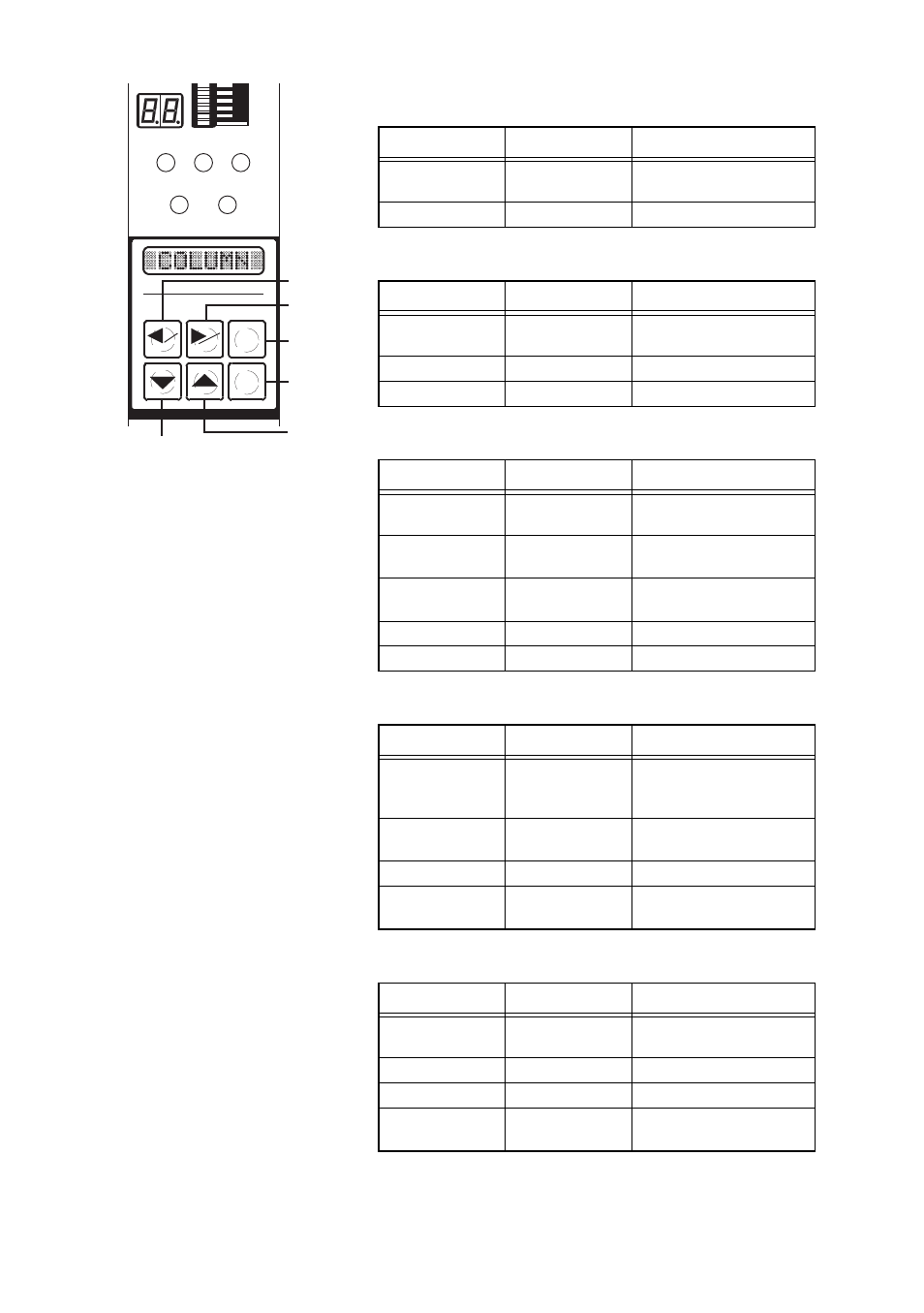

[7] Panel switches
(a) Left arrow key (SET key)
(b) Right arrow key (MAS key)
(c) Reset key
(d) ENTER key
(e) Up arrow key
Mode Key action Status
Measurement Hold down for two
seconds Switches to master matching
Setting Press once Select setting parameter
Mode Key action Status
Measurement Hold down for two
seconds Switches to master matching
Setting Press once Select setting parameter
Master matching Press once Switch displayed information
Mode Key action Status
Hold setting value Press once Switches to measurement
mode
Setting (settings
being input) Press once Returns settings to their
previous values
Setting (item being
selected) Press once Cancel settings (Write/
Cancel)
Master matching Press once Returns to previous display
ADJ Press once Returns to previous display
Mode Key action Status
Measurement Press once Holds the measured values
(If master matching was
successful)
Setting Press once Decide setting item and
setting value
Master matching Press once Read in master values
ADJ Press once Decide adjustment item and
adjustment value
Mode Key action Status
Measurement Press once Switch which information is
displayed
Setting Press once Enter setting values
Master matching Press once Switch display masters
ADJ Press once Switch detector that is
displayed
SET MAS
RST
ENT
1 2 3
SET MAS
(a)
(d)
(b)
(e)
(f)
(c)
