-2-

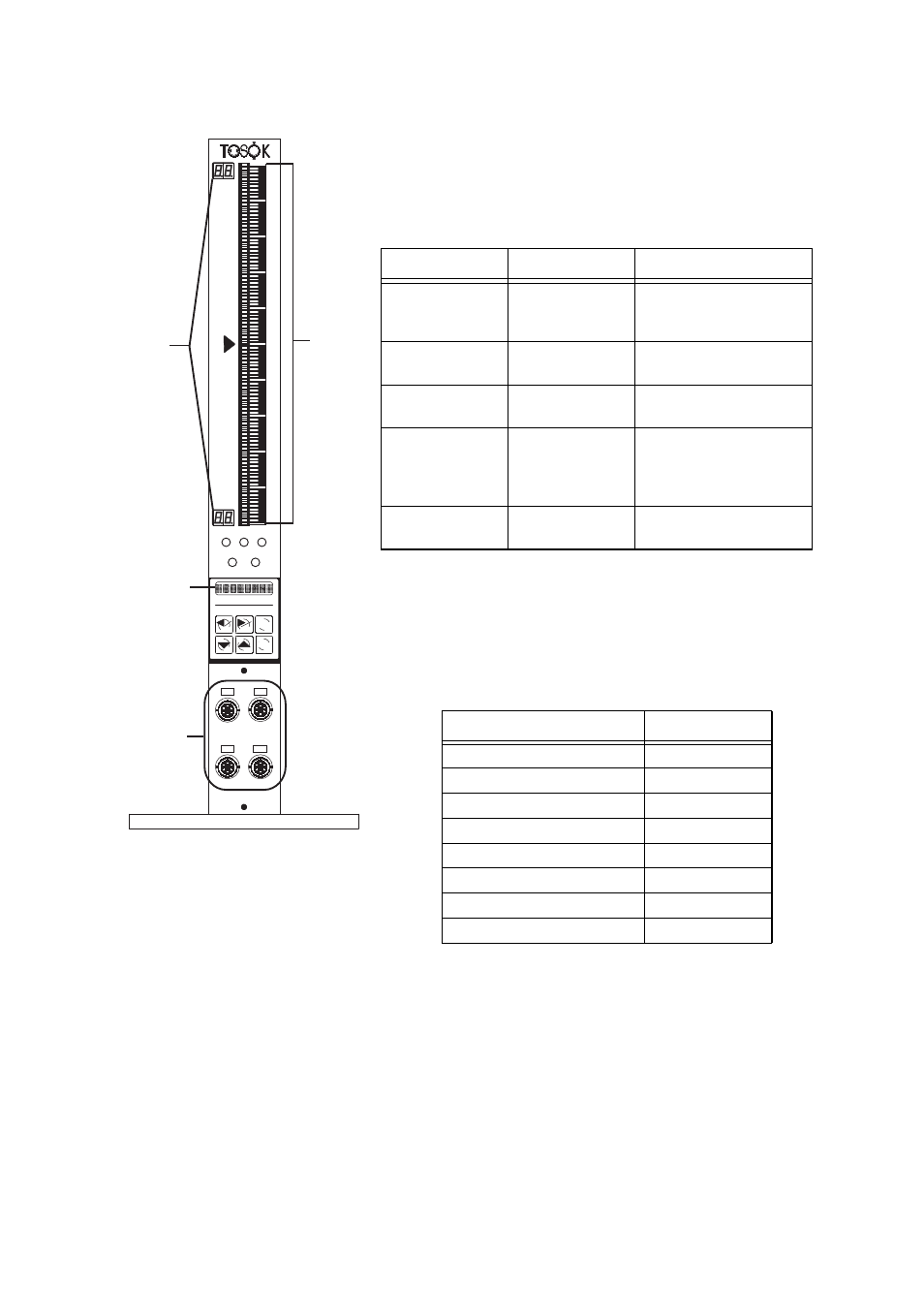

4 Names and functions of the parts
[1] Bar graph display
Displays a 101-dot, three-color bar graph.
Table 1: Bar color and information displayed in each
mode
[2] Range display
The upper and lower measurements of the bar are given
with a two-digit display. The display is the same for
items 1-3 as shown in Table 2 below.
Table 2: Range display
[3] Display
A 7 × 5 dot character, eight-digit display can show
measured values, set values, setting names, and other
information.
[4] Measurement device ports
Measurement devices can be connected as follows: A
and B for two-channel type devices, and A-D for four-
channel type devices.
Mode Bar color Information displayed
Measurement Green (bright)
Red (bright)
Orange (dotted) Value measured was OK.
Value measured not OK.
Upper or lower limit value.
Hold
measurement Green (dark)
Red (dark) Value measured was OK.
Value measured not OK.
Setting Orange (bright)
Green (dotted) Current setting value
Previous setting value
Master matching Green (bright)
Red (bright)
Orange (dotted) Master matching possible
Master matching not
possible
Master setting value
ADJ Orange (bright)
Green (dotted) Value measured
Master setting value
Measured range (microns) Digital display
5 2.5
10 5.0
20 10.
50 25.
100 50.
200 10
500 25
1000 50
1 2 3
SET MAS
B D
A C
RST
ENT
SET MAS
[1]
[2]
[3]
[4]
