If the AP or Approaching distance is set wrong and the force gauge detects a
force prior to its completion. The test sand will terminate and end the program
and will stop.

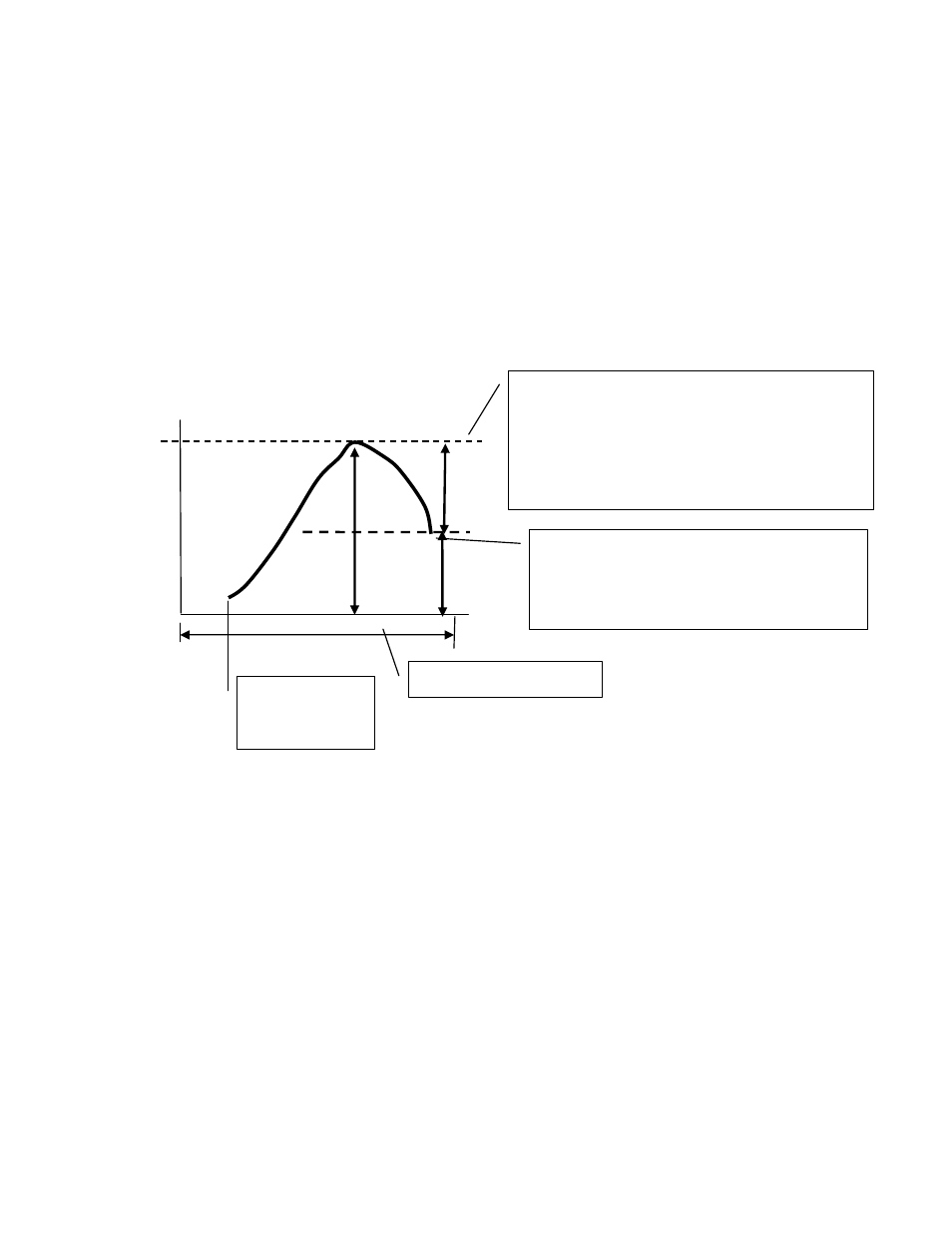

BREAK or Break Mode
The way the test stand determines the break point is to it detects the percent
drop from the Maximum peak value recorded.

From the diagram above the settings are as follows
Percent drop is set to 10 percent
Detected max value to be 100g

NOTE: Recommend not to set the percent drop less than 0.5%, this may trigger
false detection of the break point (Noise and vibration from the movement).






Force

Distance

Tare ON/OFF
avairable.

Operating Distance;

100g – 10g = 90g, so after detect
below 90g, test is finished. and
then, go back to start point
automatically.

MAXforce: 100g

final_force is based on percentage of

MAXforce

Setting range : 0.5 – 100 %
MAXforce×final_force[%] = 100g x 10% = 10g

10g

90g

100m
m
