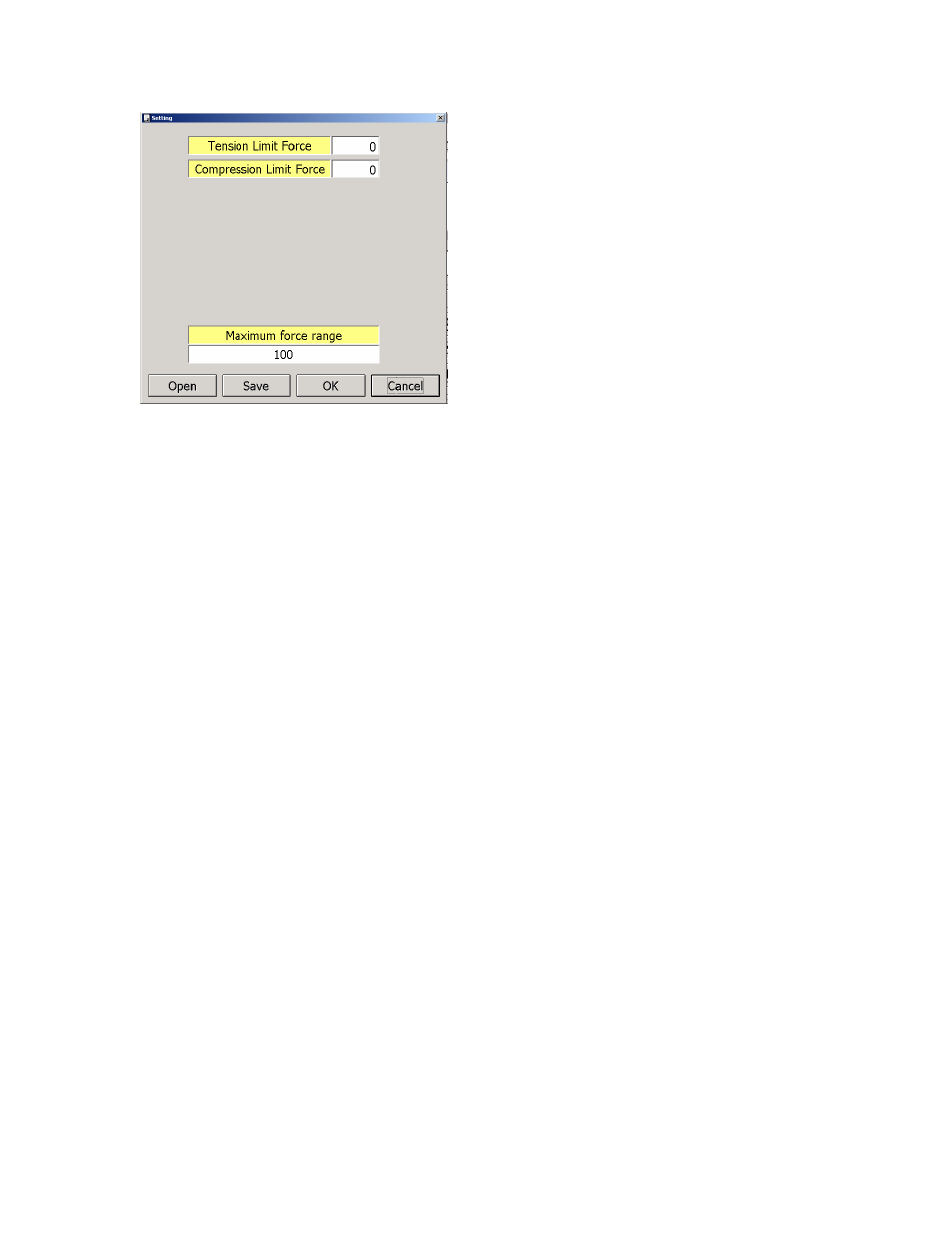

• Tension Limit force – sets the maximum amount of force allowed for pull
or tension test. Values entered have units based from the selected units
of measure from the main Window.
• Compression Limit force – sets the maximum allowed compression or
push force.
Setting zero values on the tension and compression limit force disables this
function.
If the limits are reached the test stand will stop operation.
The UP and Down buttons allows the test stand to move in the selected direction.
It will continue to move until one or more of the following situation occurs.
• Limit Switch Activated (HI or Low).
• Stop condition is requested
• Set Limit force detected.
A warning message will appear if the entered value is set beyond what the
attached gauge can measure. Caution is required to prevent damaged on the
force gauge.
