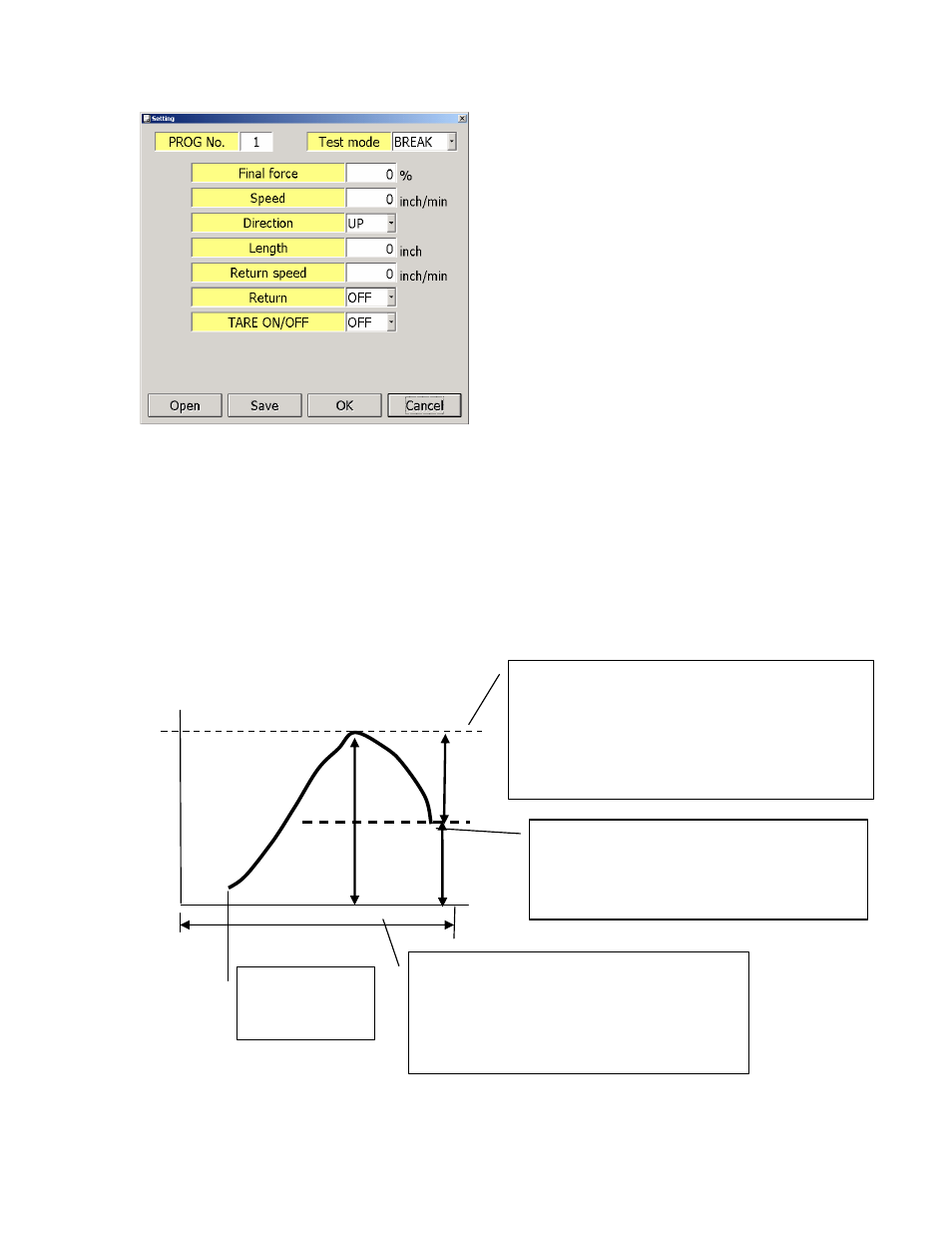

Break setting option include a length option
Priority of the test stand is Force, if no break or percent drop is detected on a
certain length the test stand stops or return to initial position.
Additional adjustments can then be made to increase the pull or decrease the
compression distance of the test sample.
Force
Distance
Tare ON/OFF
avairable.
Operating Distance;
.
100g – 10g = 90g, so after detect
below 90g, test is finished. and
then, go back to start point
automatically.
MAXforce: 100g
final_force is based on percentage of
MAXforce
Setting range : 0.5 – 100 %
MAXforce×final_force[%] = 100g x 10% = 10g
10g
90g
100m
m
