Warranty

LIMITED EXPRESS WARRANTY: Shimpo Instruments warrants, to the original purchaser of new products only, that this product shall be free from

defects in workmanship and materials under normal use and proper maintenance for one year from the date of original purchase. This warranty shall

not be effective if the product has been subject to overload, misuse, negligence, or accident, or if the product has been repaired or altered outside of

Shimpo Instruments’s authorized control in any respect which in Shimpo Instruments’s judgment, adversely affects its condition or operation.
DISCLAIMER OF ALL OTHER WARRANTIES: The foregoing warranty constitutes the SOLE AND EXCLUSIVE WARRANTY, and Shimpo Instruments

hereby disclaims all other warranties, expressed, statutory or implied, applicable to the product, including, but not limited to all implied warranties

of merchantability and fitness.
LIMITATION OF REMEDY: Under this warranty, Shimpo Instruments’ SOLE OBLIGATION SHALL BE TO REPAIR OR REPLACE the defective product or

part, at Shimpo Instruments’ option. Shimpo Instruments reserves the right to satisfy warranty obligation in full by reimbursing Buyer for all

payments made to Shimpo Instruments, whereupon, title shall pass to Shimpo Instruments upon acceptance of return goods. To obtain warranty

service, Purchaser must obtain Shimpo Instruments’s authorization before returning the product, properly repackaged, freight pre-paid to Shimpo

Instruments.
INDEMNIFICATION & LIMITATION OF DAMAGES: Buyer agrees to indemnify and hold Shimpo Instruments harmless from and against all claims and

damages imposed upon or incurred arising, directly or indirectly, from Buyer’s failure to perform or satisfy any of the terms described herein. In no

event shall Shimpo Instruments be liable for injuries of any nature involving the product, including incidental or consequential damages to person or

property, any economic loss or loss of use.
MERGER CLAUSE: Any statements made by the Seller’s representative do not constitute warranties except to the extent that they also appear in

writing. This writing constitutes the entire and final expression of the parties’ agreement.

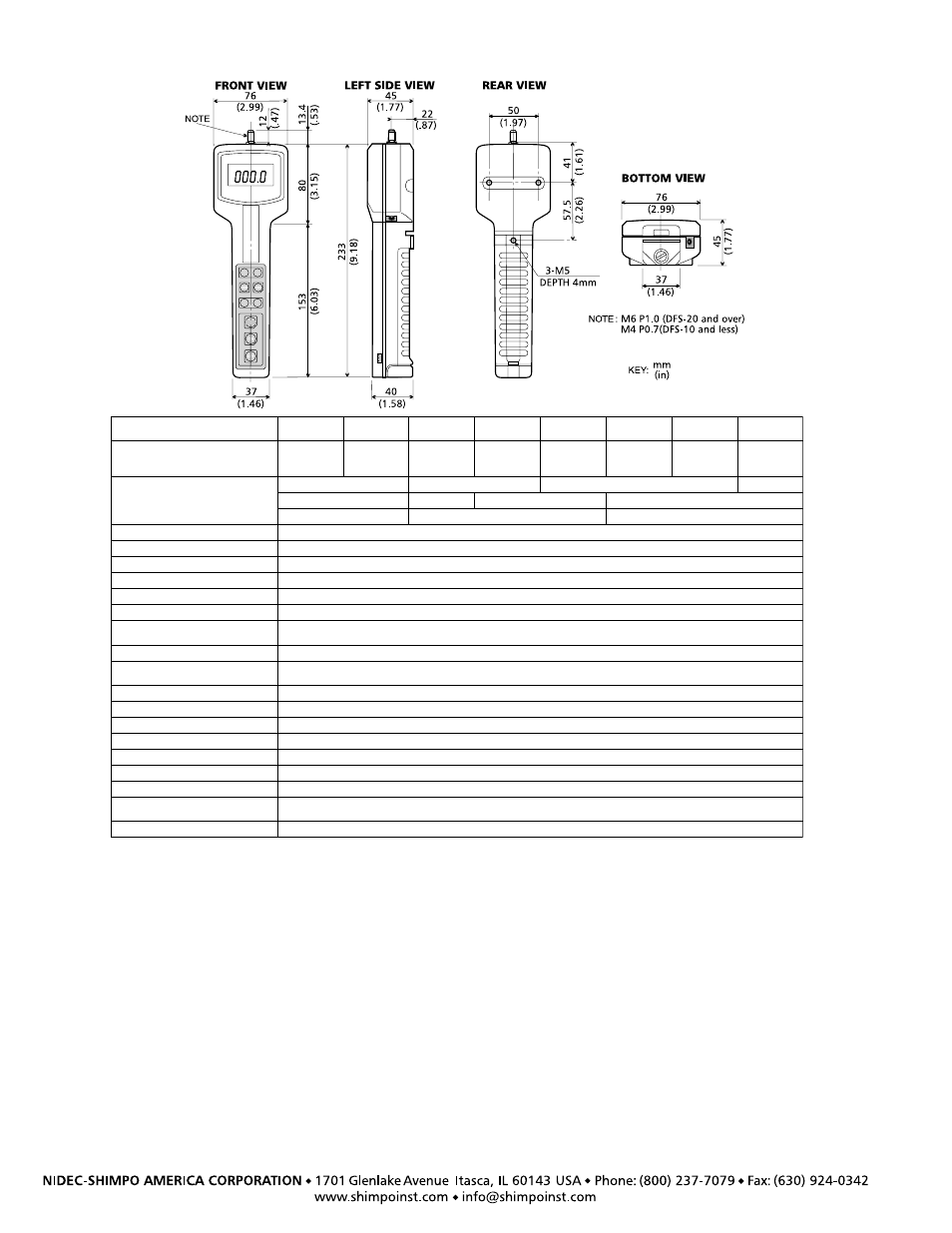

Dimensions and Specifications

MODELS

DFS-0.5

DFS-0.5R

DFS-1

DFS-1R

DFS-2

DFS-2R

DFS-5

DFS-5R

DFS-10

DFS-10R

DFS-20

DFS-20R

DFS-50

DFS-50R

DFS-100

DFS-100R

CAPACITY

8 oz

200 g

2 N

16 oz
500 g

5 N

2 lb

1000 g

10 N

5 lb

2 Kg
20 N

10 lb
5 Kg
50 N

20 lb

10 Kg
100 N

50 lb

20 Kg
200 N

100 lb

50 Kg
500 N

RESOLUTION

0.01 oz

0.001 lb

0.01 lb

0.1 lb

0.1 g

1 g

0.001 Kg

0.01 Kg

0.001 N

0.01 N

0.1 N

ACCURACY

±0.2% FS + 1/2 digit at 23°C

DISPLAY

4-Digit LCD, 11.5 mm High with various indicators including Low Battery Indication and minus sign for Tension.

MEASURING MODE

Average, Peak Compression, Peak Tension (selectable)

DISPLAY UPDATE

125 ms, 250 ms, 1 sec, 2 sec (selectable)

SAMPLING RATE

Average Mode: 125 ms, 250 ms, 1 sec, 2 sec Peak Mode: 1 ms, 125 ms, 250 ms, 1 sec, 2 sec

TEMPERATURE COEFFICIENT

Zero: ±0.02% FS/°C (max.), Span:±0.015% of reading/°C (max.)

OUTPUTS

1. RS232C 2. Digimatic: (works with Mitutoyo's printer model DP-1HS)
3. Analog: (±1VDC with load impedance of 2K or higher and tare function capability.)

OVERLOAD CAPACITY

200% of FS

COMPARATOR OUTPUT

(Set Points)

Three open collector NPN transistors for HI, GO, and LO (28VDC, 7 ma max.)

OVERLOAD OUTPUT

Two open collector NPN transistors one for Tension and one for Compression (28VDC, 5 ma max.)

TARE & HOLD CONTROL

Relay contact (selectable)

MEMORY

Holds 100 samples plus statistics (MAX, MIN, AVG, and Standard Deviation)

POWER

4 - AA Alkaline batteries. Last approx. 20hrs. in continuous operation or AC Adapter for continuous use (6VDC, 200 ma)

AUTO POWER SHUT-OFF

Selectable (3 minutes if there is no activity)

OPERATING TEMP RANGE

32 - 113°F (0 - 45°C)

DIMENSIONS/WEIGHT

3"W x 1.77"H x 9.72"L (76 x 45 x 247)mm /1.2 lbs. (550 g)

ACCESSORIES (Included)

Batteries, carrying case, overload output cable, AC adapter, 6 adapters (flat head, hook, chisel, notched head, cone &
extension rod)

ACCESSORIES (Available)

Test stands, RS232C cable, Digimatic, analog and comparator output cables.
