Communication With External Devices (continued)
External Tare
To tare, short pins 5 and 10 for at least 25mS.
External Hold

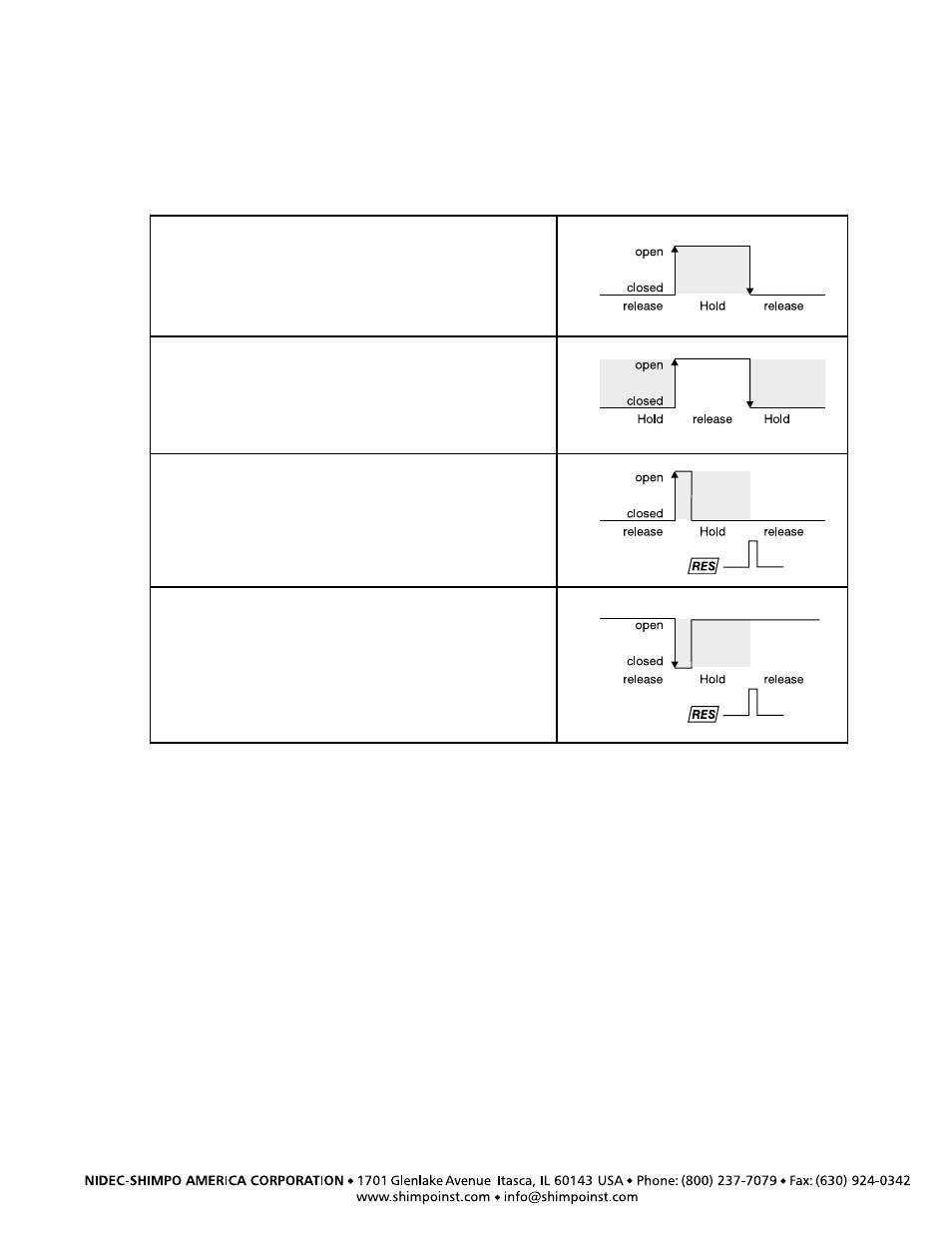

Choose edge or level trigger and also OPEN or CLOSED condition.
Level trigger: OPEN
Display holds present value when switch opens.
Level trigger: CLOSED
Display holds present value when switch closes.
Edge trigger: OPEN
Display holds present value after switch opens
until it is reset.
Edge trigger: CLOSED
Display holds present value after switch closes
unitl it is reset.
HOLD cannot be released from an external source in the edge trigger mode. To release it press RESET. Level mode
can be released externally.
