SHIMPO FG-7000-Series User Manual
Page 7
Model
mN
N
gf
kgf
ozf
lbf
FG-7001
Capacity
2000.0
2.0000
200.00
-
7.000
-
Resolution
0.5
0.0005
0.05
-
0.001
-
FG-7002
Capacity
5000.0
5.0000
500.00
-
18.000
1.1000
Resolution
0.5
0.0005
0.05
-
0.005
0.0001
FG-7003
Capacity
10000
10.000
1000.0
1.0000
35.00
2.2000
Resolution
1
0.001
0.1
0.0001
0.01
0.0005
FG-7004
Capacity
20000
20.000
2000.0
2.0000
70.00
4.400
Resolution
5
0.005
0.5
0.0005
0.01
0.001
Fg-7005
Capacity
50000
50.000
5000.0
5.0000
180.00
11.000
Resolution
5
0.005
0.5
0.0005
0.05
0.001
FG-7006
Capacity
-
100.00
10000
10.000
350.0
22.000
Resolution
-
0.01
1
0.001
0.1
0.005
FG-7007
Capacity
-
200.00
20000
20.000
700.0
44.00
Resolution
-
0.05
5
0.005
0.1
0.01
FG-7008
Capacity
-
500.00
50000
50.000
1800.0
110.00
Resolution
-
0.05
5
0.005
0.5
0.01
FG-7009
Capacity
-
1000.0
-
100.00
3500
220.00
Resolution
-
0.1
-
0.01
1
0.05

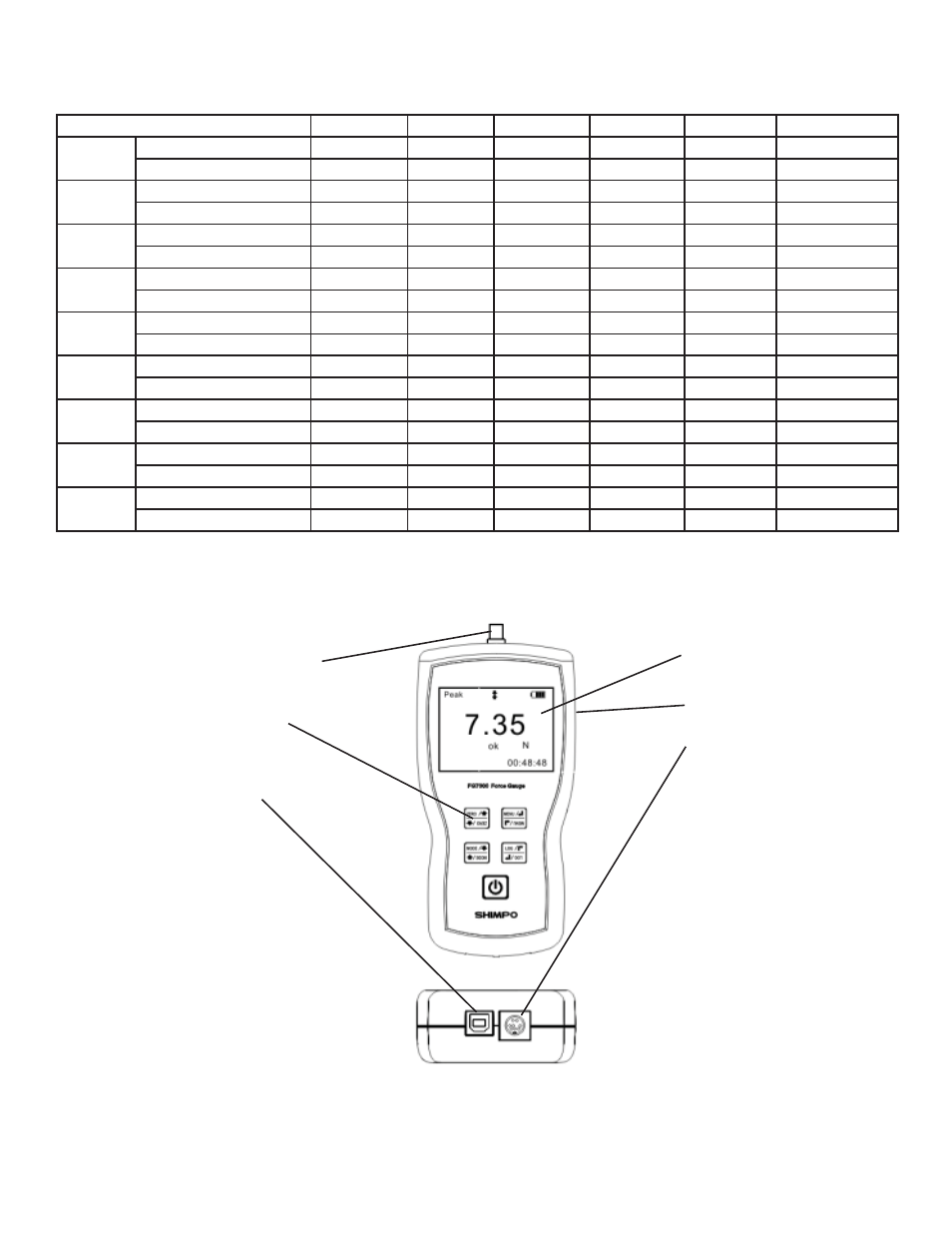

5.3 Diagram
5.2 Capacity and Resolution
Measuring Shaft:
Tension or compression forces.
Capacitive Touch Keys
(See Key Function)
USB Port: Recharge the internal
Ni-MH battery or connect to PC
160*128 Dots LCD
(See LCD Screen)
Robust Metal Housing
Communications Port
(See Figure 4-2)
7
