SHIMPO FG-7000-Series User Manual

Page 5

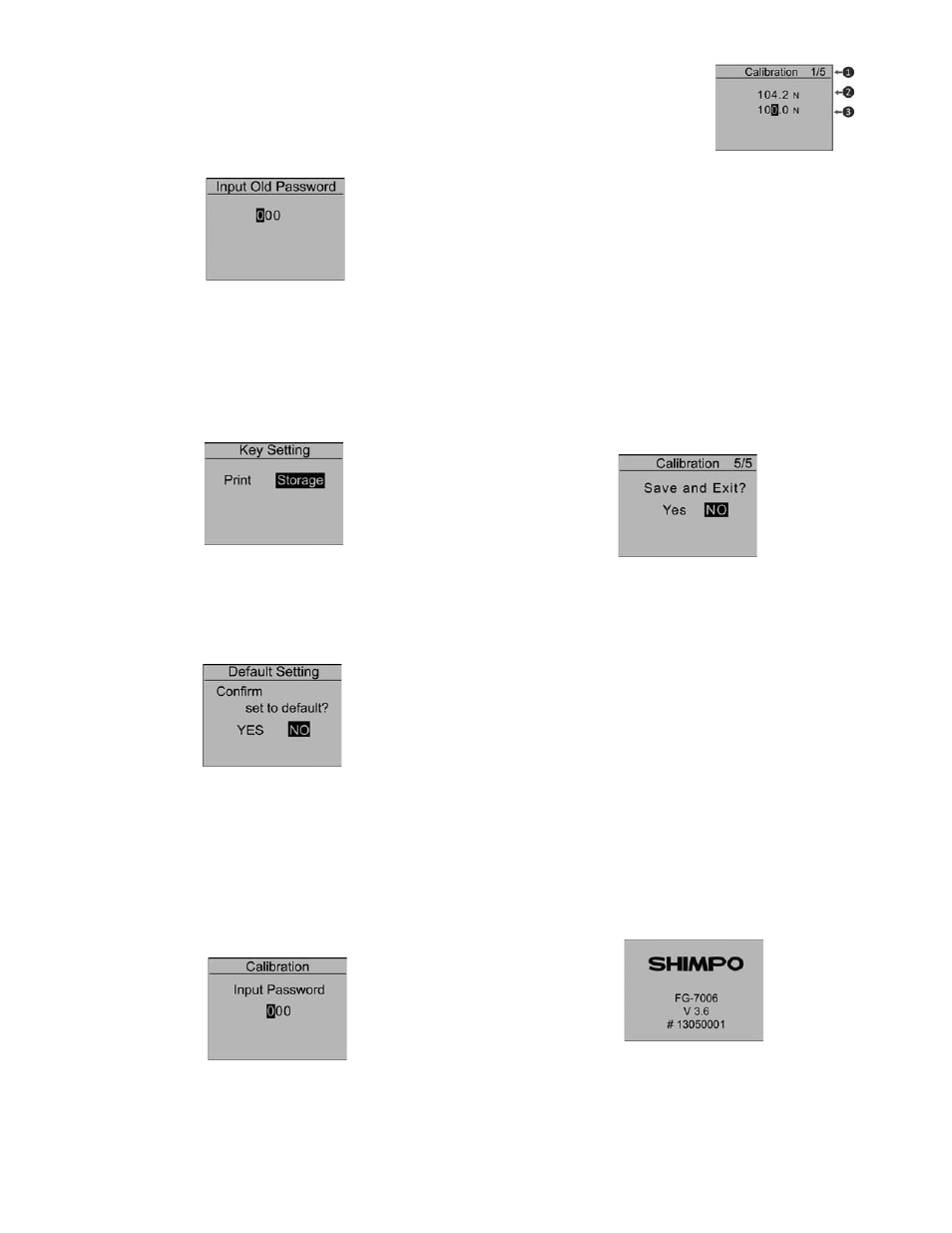

2.5.6 Password

The system password can be changed. First, enter the old
password, then enter the new password and confirm the
new password. The default System password is “123”. Touch
“ZERO” to adjust the value. Press “MODE” to shift to the next
position. Touch “LOG” to cancel; Push “MENU” to confirm and
exit. (Figure 2-28)

Figure 2-28

2.5.7 Key Setting
Set the default function of the “LOG” key from the home
screen. The function can be set to print or store the current
displayed value. Press “ZERO” or “MODE” to select the proper
setting. Press “LOG” to cancel; touch “MENU” to confirm and
exit. (Figure 2-29)

Figure 2-29

2.5.8 Default Setting
If you make a selection that you feel has caused the gauge to
operate improperly, you can restore it to the factory default set-
tings. Carefully use this function! (Figure 2-30)

Figure 2-30

2.6 Calibration

Users can field-calibrate the gauge. First, enter the system pass-

word (Default is 123) by pressing the “ZERO” and “MODE” keys.
Then press “MENU” to confirm. (Figure 2-31)

Figure 2-31

Calibration Point

Current Value

Standard Input Value

Figure 2-32

Load a standard force on the gauge. Wait a moment for the force
to stabilize. The current value (2) should equal the standard force
applied.

If the values do not match, press “ZERO” and “MODE” keys to
correct the standard input value (3).

Press “MENU” to enter the next calibration point. After any of the
calibration points have been completed, touch “LOG” to exit the
calibration mode. Then save the calibration or discard by pressing
“Yes” or “No”.

After completing the calibration of the 5th point, the confirma-
tion window will automatically ask to “Save and Exit” by selecting
“Yes” or “No”. (Figure 2-33)

Figure 2-33

Press “ZERO” or “MODE” to select, then press “MENU”. If “Yes”
is selected, “Calibration Complete!” is displayed.

NOTE:
1. Ensure that the tare of attachment has been cleared before
calibration.

2. For higher measuring precision throughout the test range,
calibrating a point with a force at full scale is recommended.

3. Compression and tension calibrations are saved separately.
The force gauge can identify the direction of the force, but each
must be completed in a separate procedure.

2.7 Information

Information includes the model, version of the software and the
serial number. (Figure 2-34)

Figure

2-34
