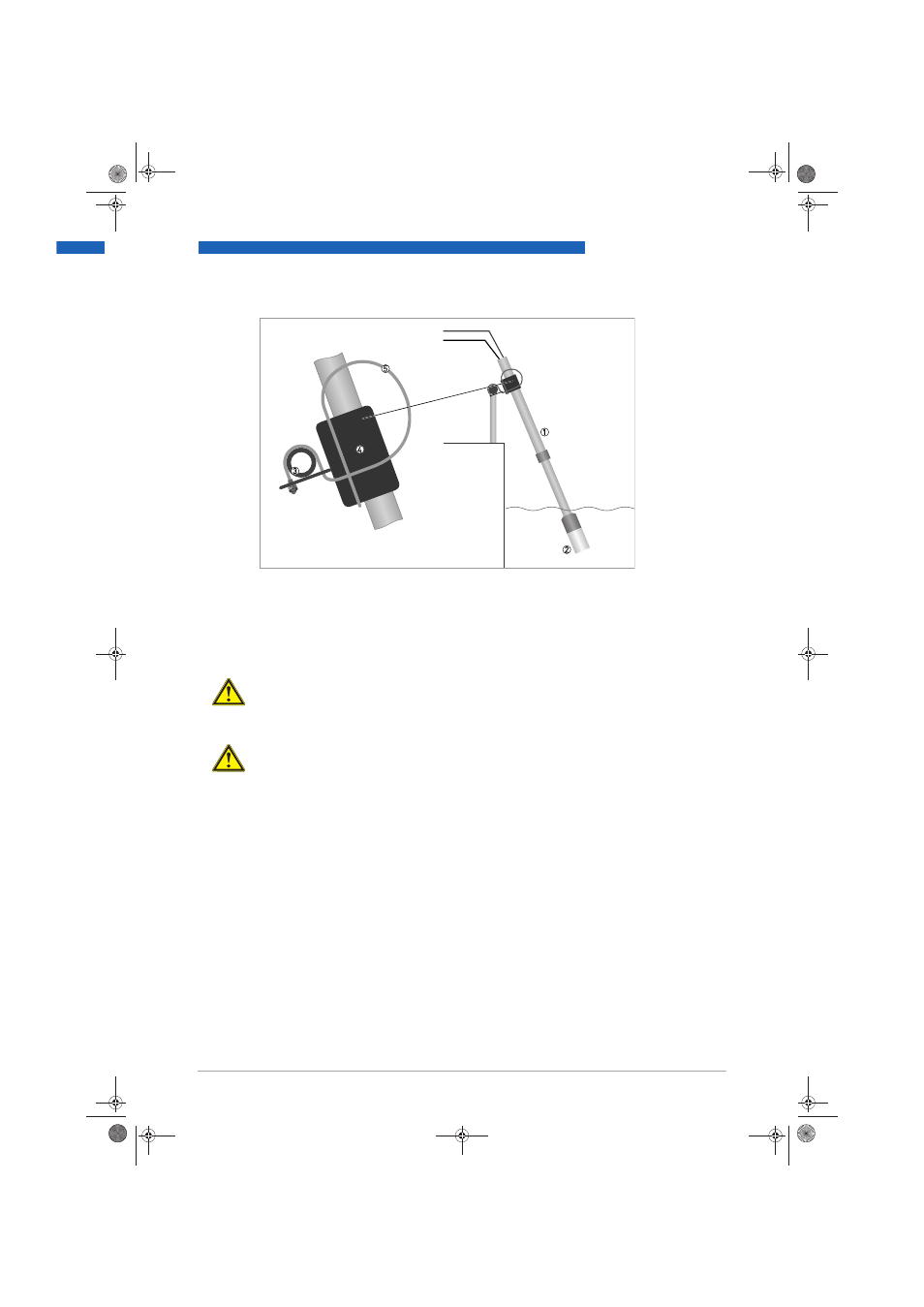

Figure 3-4: OPTISENS MAA 2000 Telescopic rod immersion holders
1 Telescopic rod
2 Sensor holder
3 Handrail with mounting bracket attached
4 Rod holder
5 Mounting bracket
CAUTION!
Do not extend the rod sections beyond the black lines. This could lead to rod damage.
CAUTION!
The sensor should be mounted in a vertical position. In some applications it may be desirable to
mount at a certain angle. In this case the angle from the horizontal plane should be greater than
or equal to 45°.
