2
DEVICE DESCRIPTION
8
TIDALFLUX 4300 F
www.krohne.com 06/2010 - 4000970001 - TIDALFLUX 4300 F R01 en
2.1 Scope of delivery
2.2 Device description
This flowmeter can measure the flow of conductive liquids, even in partially filled pipes. To be
able to do this, a capacitive height measurement has been integrated into a normal
electromagnetic flowmeter. If both the filled fraction and the velocity of the fluid are known, it is
easy to calculate the amount of fluid running through the pipe.
2.3 Nameplates

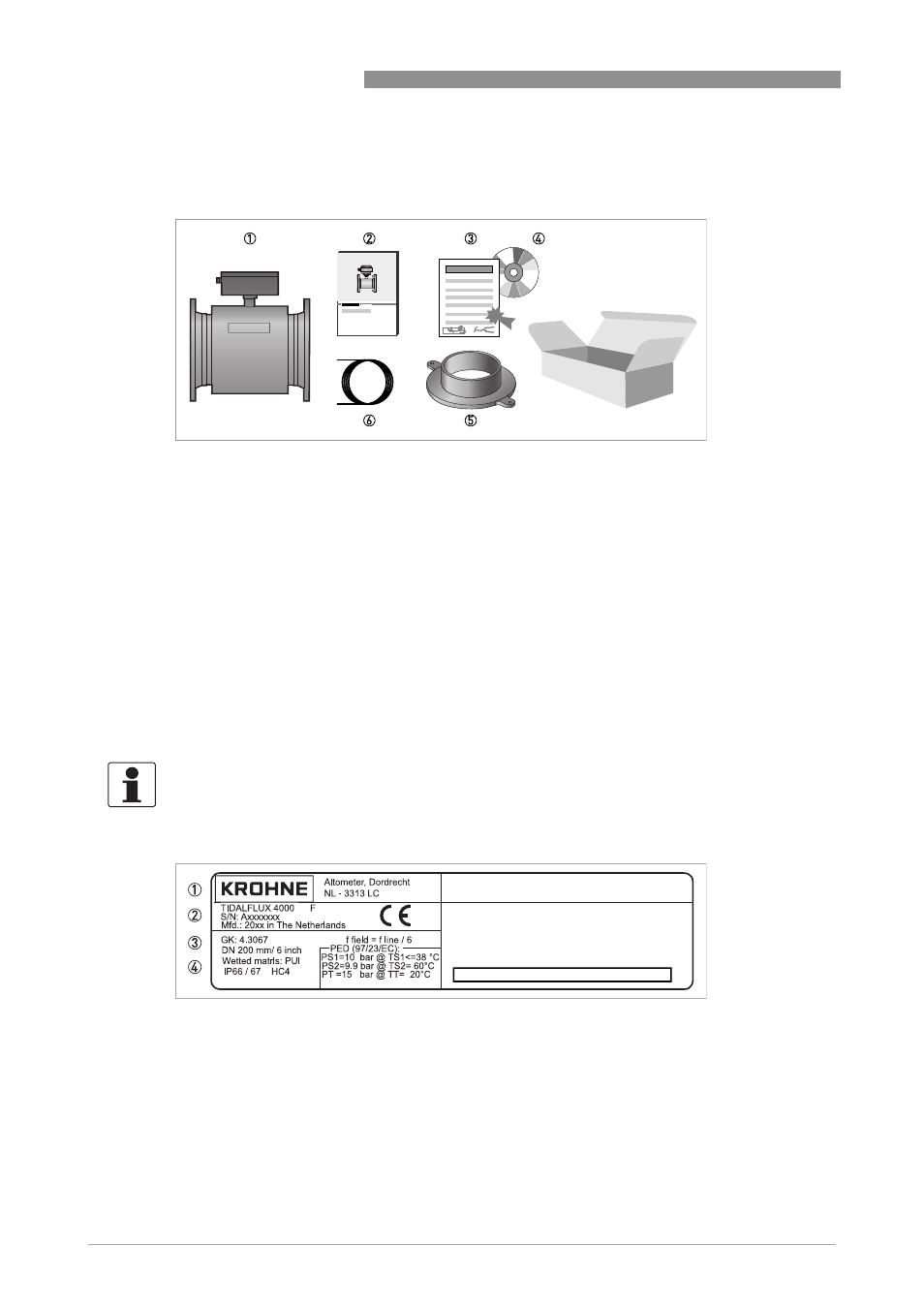

Figure 2-1: Scope of delivery
1 Ordered flowmeter
2 Product documentation
3 Factory calibration report
4 CD-ROM with product documentation
5 Grounding rings (optionally)
6 Cable
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
Figure 2-2: Example of nameplate
1 Logo and address of manufacturer
2 Type designation
3 GK/GKL values (measuring sensor constants); size (mm/inches); field frequency
4 Materials of wetted parts; protection category
