ELECTRICAL CONNECTIONS
22
TIDALFLUX 4300 F
www.krohne.com 06/2010 - 4000970001 - TIDALFLUX 4300 F R01 en
1 Strip the conductor to dimension a.
2 Cut the outer shields (60), (10), the shields around the insulated conductors (2, 3) and the
stranded drain wires (20, 30) . Make sure not to damage the stranded drain wires (1) and (6).
3 Twist the stranded drain wires (6) of the outer shield and the drain wire (1) of the inner shield
(10).
4 Slide an insulating tube over the stranded drain wires (1) and (6).
5 Crimp the wire end ferrules onto conductors 2 and 3 and the stranded drain wires (1) en (6).
6 Pull the heat-shrinkable tubing over the prepared signal cable.

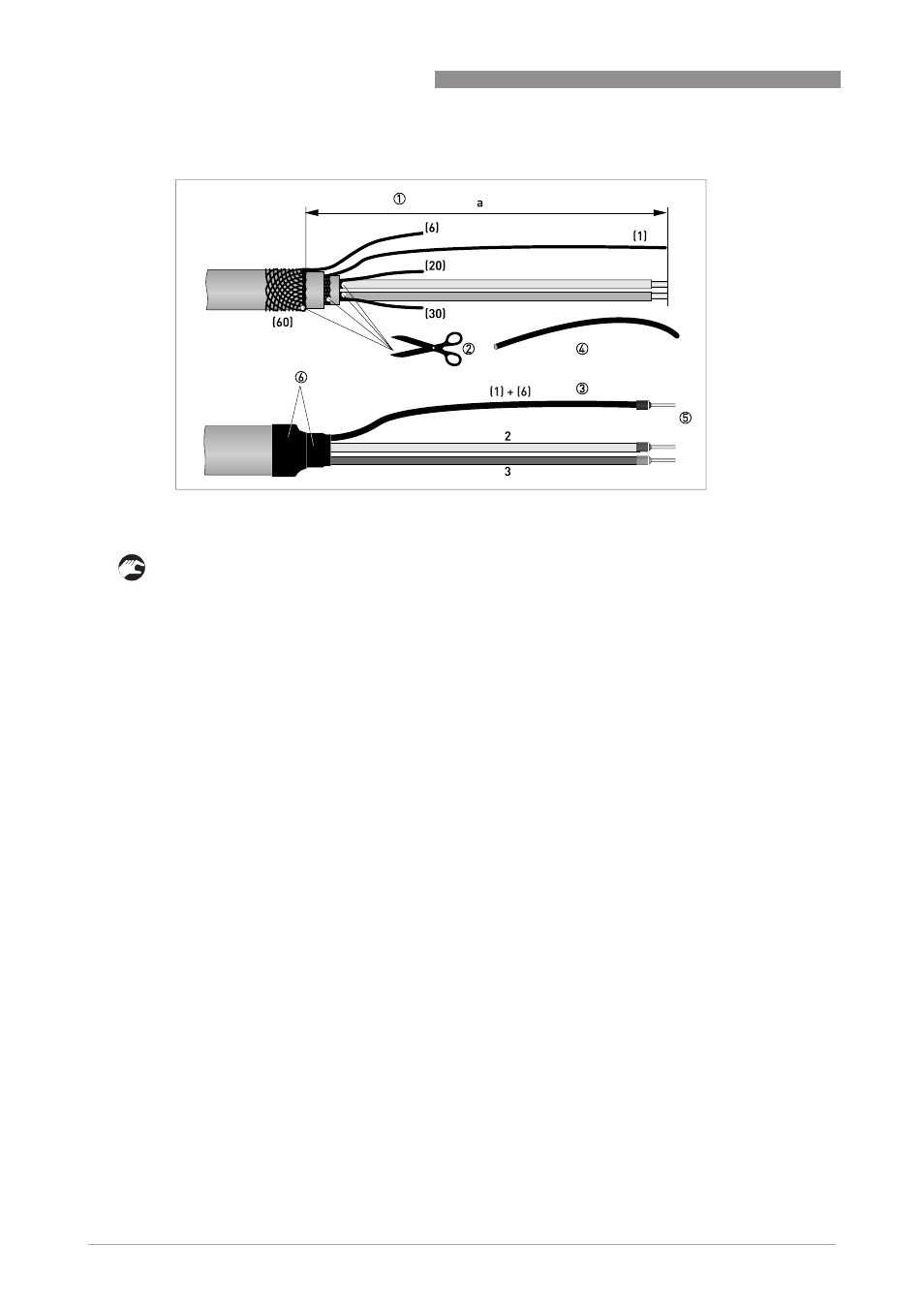

Figure 4-7: Preparing signal cable B, connection to measuring sensor
a = 50 mm / 2"
