7.6 Measuring accuracy
The measuring accuracy for partly filled pipes and completely filled pipes are different. In these
graphs it is assumed that the velocity at full scale value is at least 1 m/s (is also the standard
value for calibration, since it will result in the most accurate measurements).
Fully filled pipes

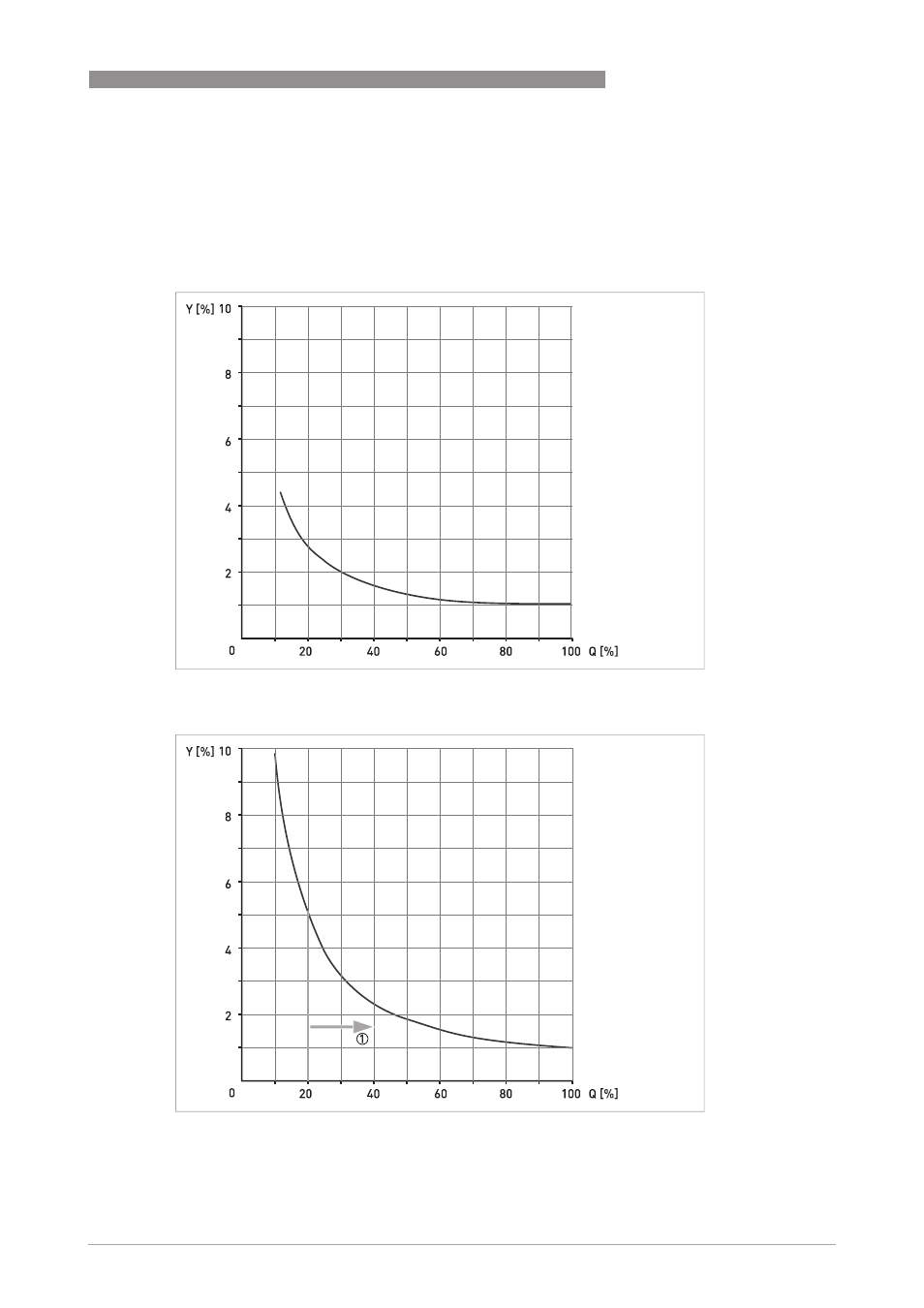

Figure 7-3: Maximum measuring error of measured value.
Partly filled pipes
Figure 7-4: Maximum measuring error of measured value.
1 Advised working area
