INSTALLATION
2
29
OPTIFLEX 2200 C/F
www.krohne.com 08/2013 - 4000622103 - QS OPTIFLEX 2200 R03 en
2.10.7 How to turn or remove the signal converter
The converter turns 360°. The converter can be removed from the process connection assembly
under process conditions.

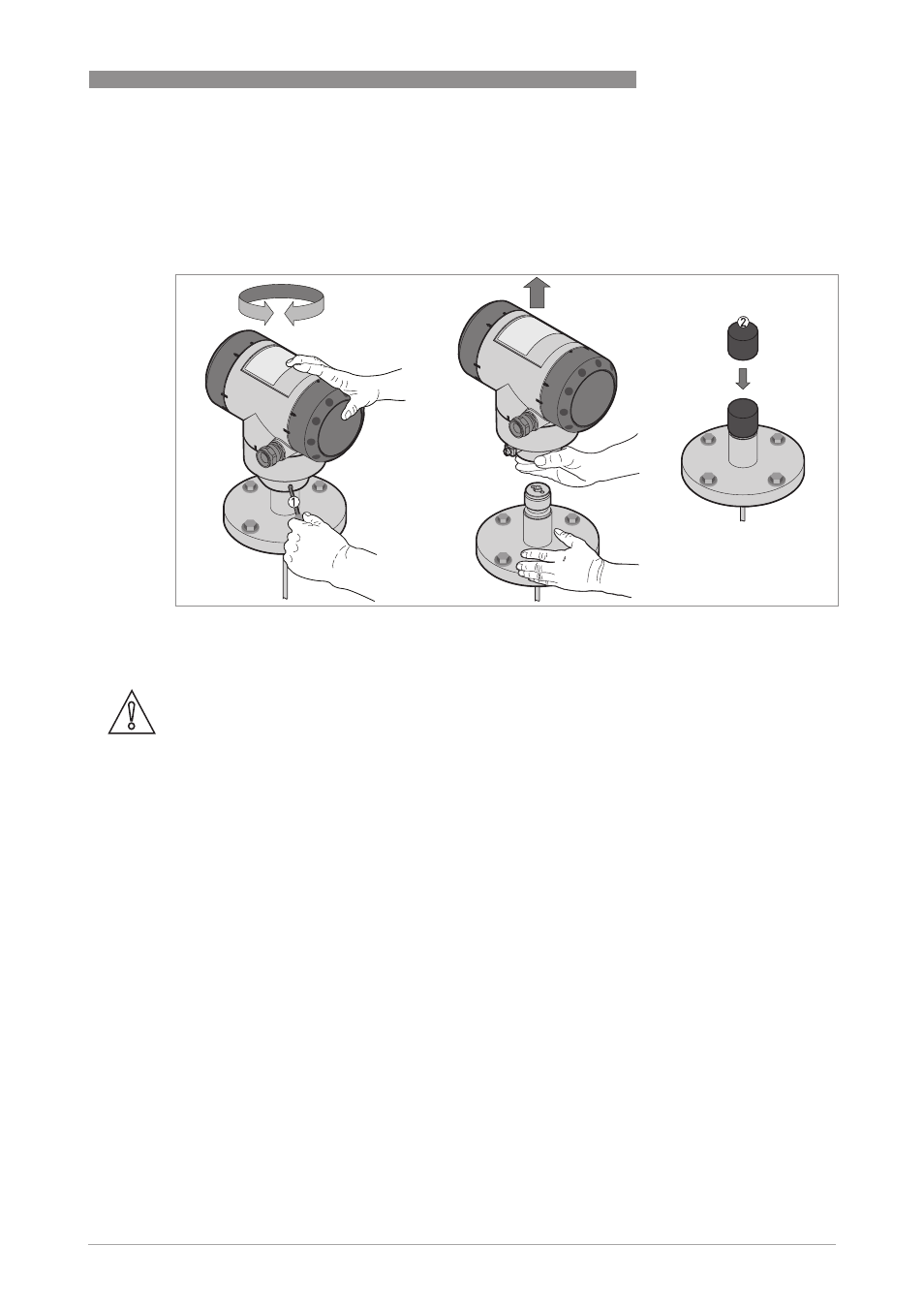

Figure 2-33: How to turn or remove the signal converter
1 Tool: 5 mm Allen wrench (not supplied) for the lock screw on the signal converter
2 Cover for the coaxial hole on top of the process connection assembly
CAUTION!
Do not loosen the 4 socket head screws on the process connection assembly.
If you remove the housing, put a cover on the the coaxial hole on top of the process connection
assembly.
When the housing is attached to the process connection assembly, tighten the lock screw with
the 5 mm Allen wrench 1.
