Figure 6. output alarm circuit optically isolated, Figure 7. rke 1500w power failure timing diagram, 2 overvoltage and overtemperature protection – KEPCO RKE 1500W Series Operator Manual User Manual
Page 10: 3 current limit/overcurrent protection, Output alarm circuit optically isolated, Rke 1500w power failure timing diagram

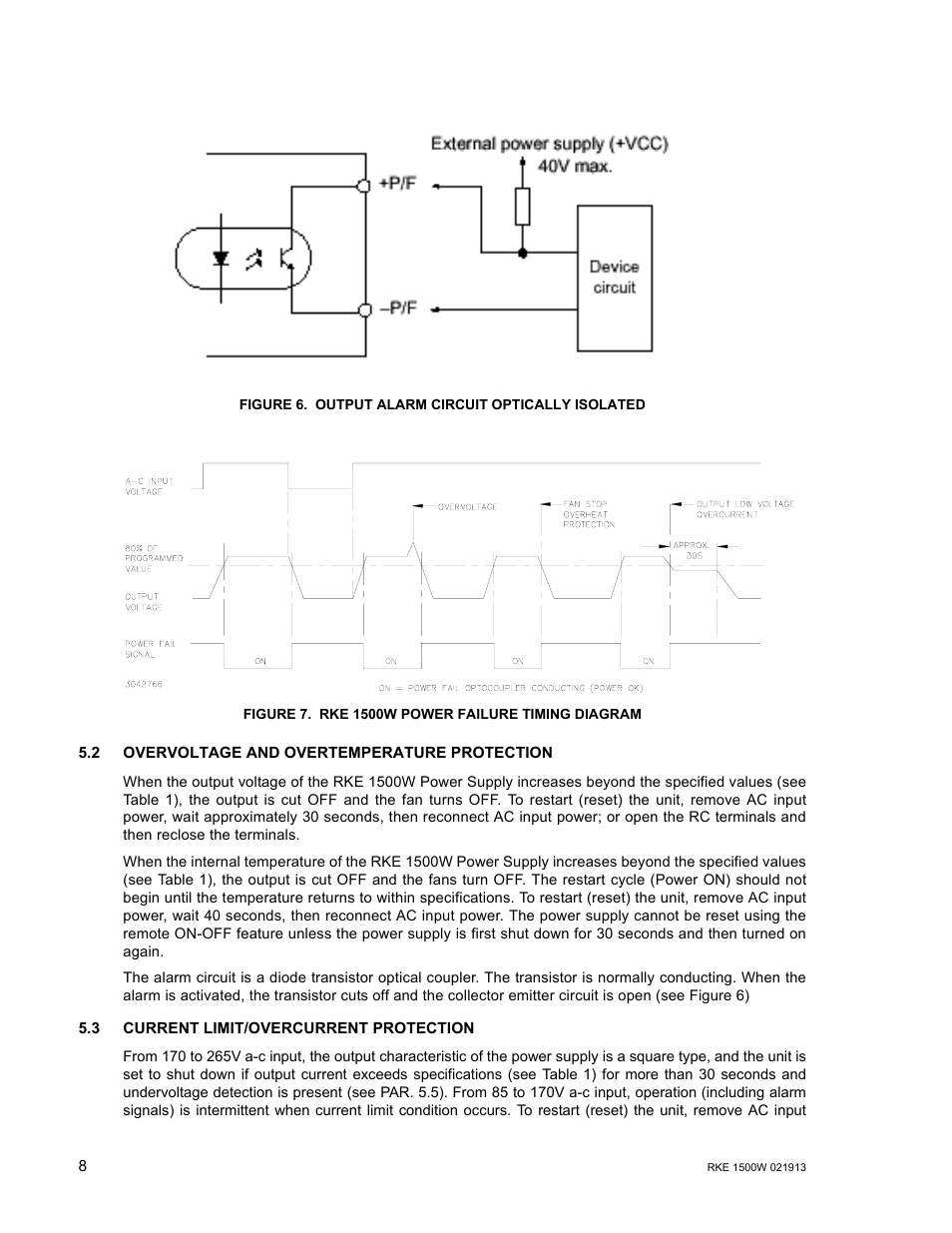

Figure 6. output alarm circuit optically isolated, Figure 7. rke 1500w power failure timing diagram, 2 overvoltage and overtemperature protection | 3 current limit/overcurrent protection, Output alarm circuit optically isolated, Rke 1500w power failure timing diagram | KEPCO RKE 1500W Series Operator Manual User Manual | Page 10 / 14 See also other documents in the category KEPCO Power suppliers:
