Sensors

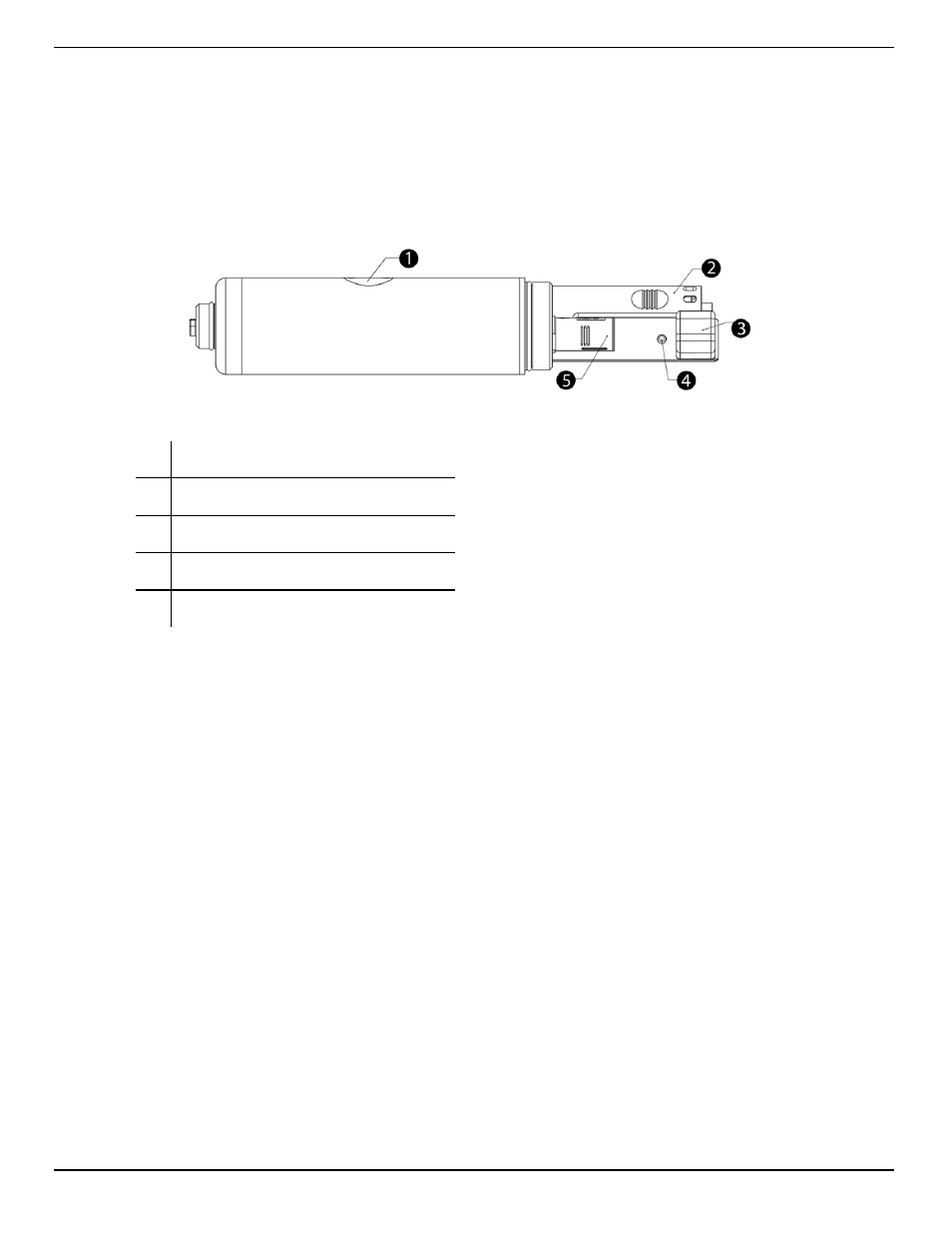

Sensors include optical RDO (Rugged Dissolved Oxygen), pH/ORP, conductivity,
pressure, and temperature.
1
Pressure sensor 76 m (250 ft)
2
pH/ORP sensor
3
Conductivity sensor
4
Temperature sensor
5
RDO Sensor
Cable
The cable includes a twist-lock connection to the instrument and a stripped-and-tinned
termination that must be wired to a controller. Cable length is customizable. Maximum
length is 1,219 m (4,000 ft) for Modbus output, and 60.9 m (200 ft) for SDI-12 output.
Win-Situ 5 Software
The Win-Situ 5 Software is used to calibrate the sensors and to configure the
instrument settings to communicate with a process controller or data logger. See the
Communication Settings and Calibration section for more details.
