ELECTRICAL SAFETY TESTER

USER MANUAL


7

13) General

Power Source

AC100V, 120V, 220V, 230V±10% 50/60Hz

Operation
Environment

Indoor use, altitude up to 2000m.
Ambient Temperature 0℃ to 40℃.

Relative Humidity 80% (Maximum).

Installation category II
Pollution Degree 2

Storage temperature
& Humidity

-10℃ to 70℃.
70% (Maximum).

Accessories

GHT-205 × 1,
GTL-115 × 1(only for GPI-745A),
Instruction manual × 1,
Interface Manual × 1

Dimension

446(D) × 330(W) × 149(H) (m/m)

Weigh

Approx. 14.9 kgs

The main purpose provided by the series of instruments is for

Puncture Testing. The specification is not for continuous test. The

temperature of heat-sink is monitored. The test procedure will stop if

the heat-sink is too hot. Please refer to Figure 2-1.

Stop the instrument for 10 minutes when continuously proceeding

30~40mA withstanding test for one hour.


ELECTRICAL SAFETY TESTER

USER MANUAL


8


100 200 300 400 500 1000 2000 3000 4000 5000 6000 V

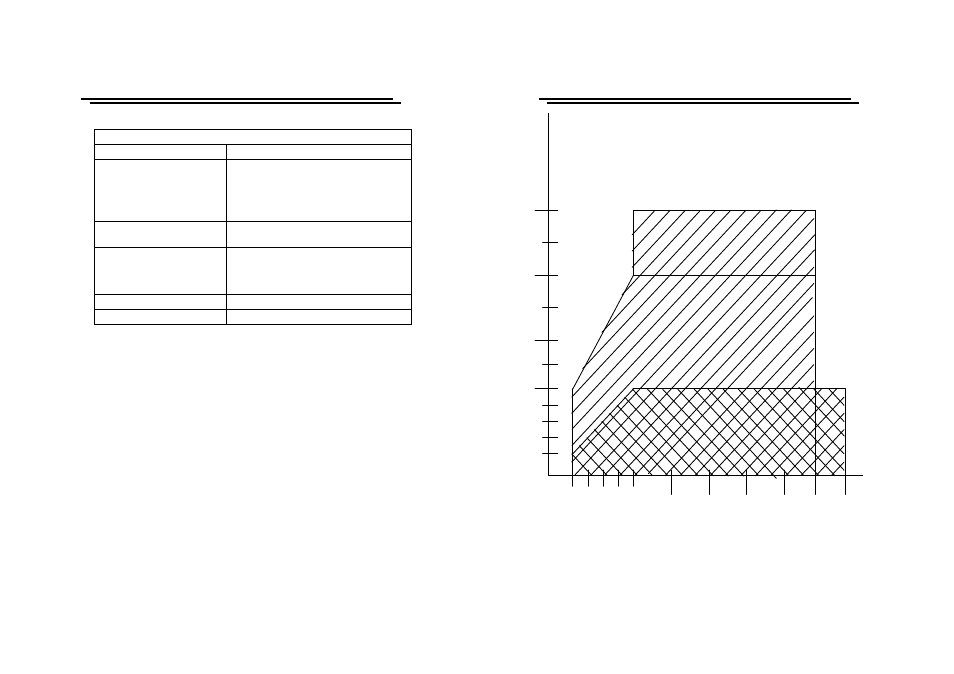

Figure 2-1

AC Hi-Pot

Spec 180sec

AC Hi-Pot Spec

Continuous

DC Hi-Pot Spec

Continuous

40

35

0

2

4

6

8

10

15

20

25

30

mA
