ELECTRICAL SAFETY TESTER

USER MANUAL


13

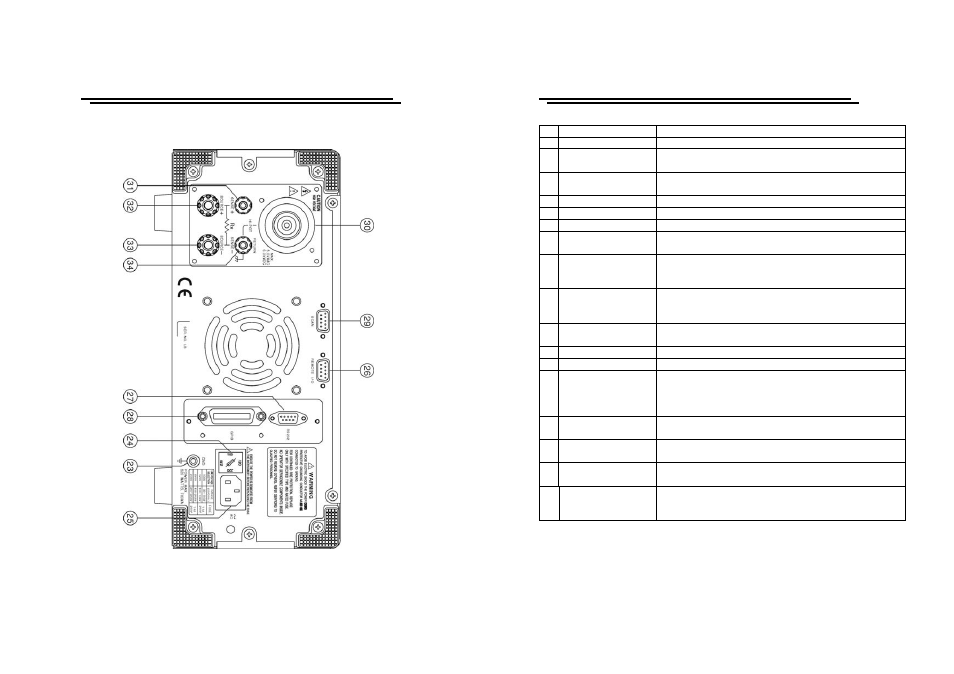

4-2. Rear Panel


ELECTRICAL SAFETY TESTER

USER MANUAL


14

1 Model Number

Model number and description

2 FAIL Indicator LED The red LED indicates failure of test procedure

3 PASS

Indicator

LED

The green LED indicates pass of test procedure

4 CAUTION

Indicator LED

During test the red LED will flash to indicate

dangerous.

5 Main Display LCD The LCD displays all message about test procedure.

6 START Button

Press the green button to start a test procedure.

7 RESET Button

Press the red button to reset/stop a test procedure.

8 MENU

Key

When you press the MENU key, the status becomes

MENU and you can browse all groups.

9 EDIT/SAVE

Key

When you press the EDIT/SAVE key, the status EDIT

is active and you can edit this step or setup. Press the

EDIT/SAVE key again will save this step or setup.

10 UTILITY Key

When you press the UTILITY key, the status

UTILITY is active and you can view all the utility

setups.

11 FIELD Key

When you edit the test step, press the FIELD key to

change the active parameter of stop.

12 Left Arrow Key

Press the arrow key to adjust knob’s resolution.

13 Right Arrow Key

Press the arrow key to adjust knob’s resolution.

14 Knob

If status EDIT is active, turn the knob to increase or

decrease the value of active parameter.

If status MENU is active, turn the knob to increase or

decrease active Step.

15 LCD Backlight

Adjustment

Turn the VR to adjust the LED backlight of LCD.

16 Buzzer Volume

Adjustment

Turn the VR to adjust the buzzer volume.

17 High Voltage Output

Seat

High voltage output terminal.

18 SOURCE-Terminal

(only for Ground

Bond Test)

High current terminal for Ground Bond test.
