High Accuracy Measurement
The accuracy of the time base oscillator is almost completely determined
by the characteristics of the crystal oscillator. The specifications of the
time base are:
Oscillation frequency
10MHz
Aging rate:
1×10
-6
/month
Temperature stability
5Ч10
-6
(25±5℃)
±2Ч10
-5
(calibration ambient temperature
0~40℃)
The temperature characteristics for the crystal oscillator used in this
instrument shown in Fig. 8, in which you can see the temperature
coefficient is as large as 25℃.

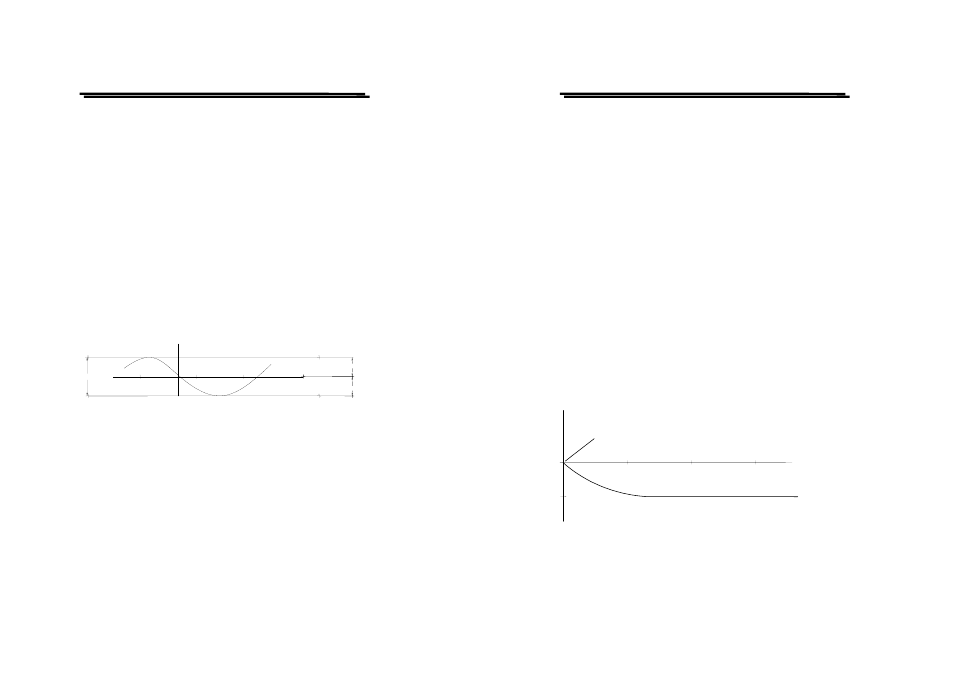

Fig. 8 Temperature characteristics of the crystal oscillator
0℃
25℃
33℃
60℃
Accuracy (temperature coefficient)
Temperature
4x10
-5
2x10
-5
2x10
-5
FREQUENCY COUNTER
USER MANUAL
16
The temperature stability of the crystal oscillator is: 2×10
-5
(temperature 0~60℃)
with 25℃ as reference. The temperature of 0~60℃ is given here because the
internal temperature rise is approximately 20 ℃ and the 0~40 ℃ ambient
temperature is because the crystal oscillator is similar to it. If the temperature of
the crystal oscillator is assumed to be 25℃ and set to 10MHz that is over the
worst case temperature stability of 2×10
-5
(0~60℃) temperature range and since
the frequency is 10MHz, a variation of only (10Ч10
6
)Ч(2Ч10
-5
) =2Ч10
2
=200Hz is
possible. In actual use, worst case conditions are produced in two circumstances:
1) Frequency calibration is performed as soon as the switch is set to ON at an
ambient temperature of 0℃ and measurement is performed after ample time
has elapsed after the switch is turned ON at an ambient temperature of 40℃.
2) Calibration is performed after ample time has elapsed after the switch has been
turned ON at an ambient temperature of 40℃ and measurement is performed as
soon as the switch is turned ON at an ambient temperature of 0℃.
Under these worst case conditions, the guarantee accuracy is 4×10
-5
(calibration
temperature:0~40℃) and becomes 0.004%.
Fig. 9 Example of crystal oscillator rise characteristics
0
5
30min
60min
90min
Time elapsed after
Switch on
X10
-6
Switch ON
Ambient temperature 23℃
