Firmware update

1.

Press

Shift

+

File

FUNC

.

2.

Select USB with the Media [F1] soft-key.

3.

Press the File Utility [F5] soft-key.

4.

Select the *.UPG upgrade file and press Select[F1]
twice. Once to select the file and once to confirm.

5.

Wait for the update to complete and reset the
power.

Warning

Do not turn the load generator off or
remove the USB memory when the
firmware is being read or upgraded.

Conventions

The following conventions are used throughout the
user manual. Read the conventions below for a basic
grasp of how to operate the PEL-3000 menu system
using the front panel keys.

Soft-menu keys

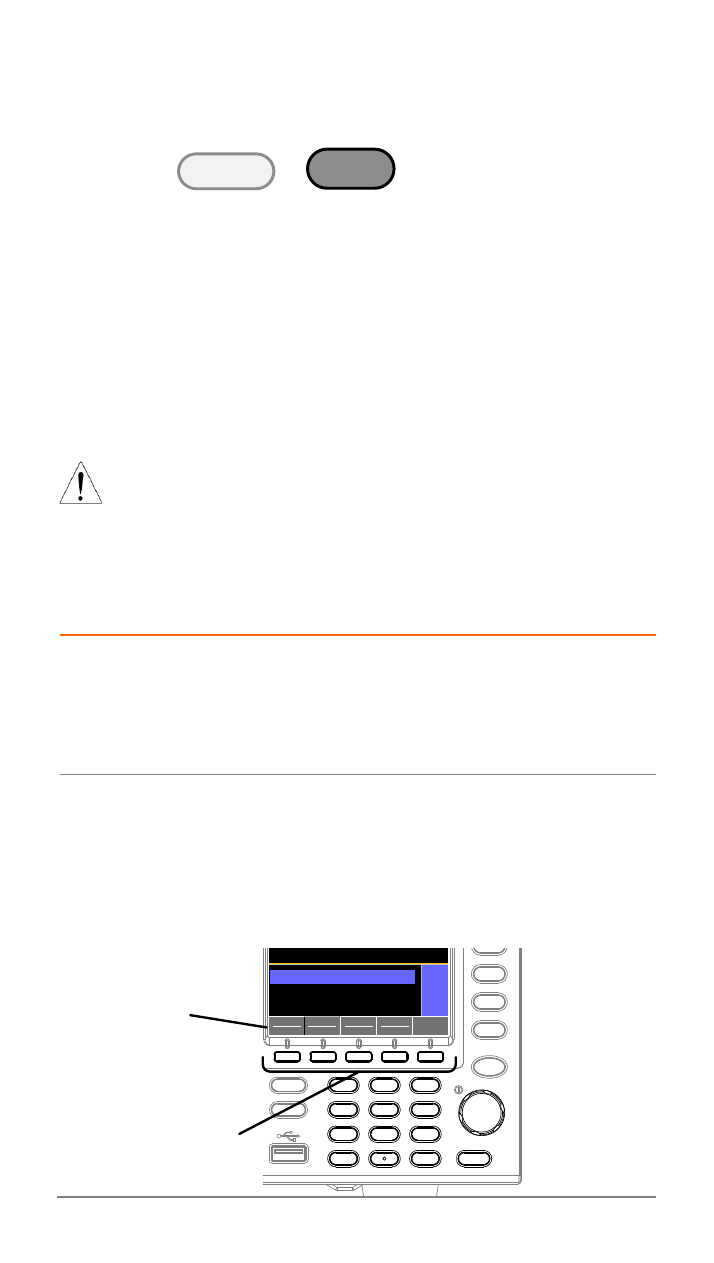

The F1 to F5 function keys at the bottom of the
display correspond directly to the soft-menu keys
on top.
