HMI Panel Instruction Manual
SmartWireless HMI Panel Instruction Manual Rev. 1.0 Page 5 of 20
turns red without a battery pack connected to the charge port, then there is a problem or issue with the port
and that port should no longer be used.
Battery packs can remain connected to the charger even after a full charge indication (Green “Charge”
LED) is shown due to the protection circuitry of the battery pack which prevents any overcharging issues.
1.6 Solar Panel (Optional)
Detcon also offers an optional solar panel to be used in conjunction with the Smart Battery Pack. It
provides 24VDC output and connects to the J5 connector of the terminal board. This option enables
continuous operation of the HMI panel and charging of the battery pack eliminating the need for external
recharging. It is an ideal choice for virtually any area with sufficient daily average sunlight. Since the
solar panel is considered and external power supply, a special conduit installation will be required.
If the optional solar panel is installed, consideration should be given to position the panel where the most
sunlight is available. The solar panel can be mounted remotely to allow for maximum sunlight exposure.
If necessary, a sunshade can be used for the HMI panel assembly to help reduce its operating temperature.

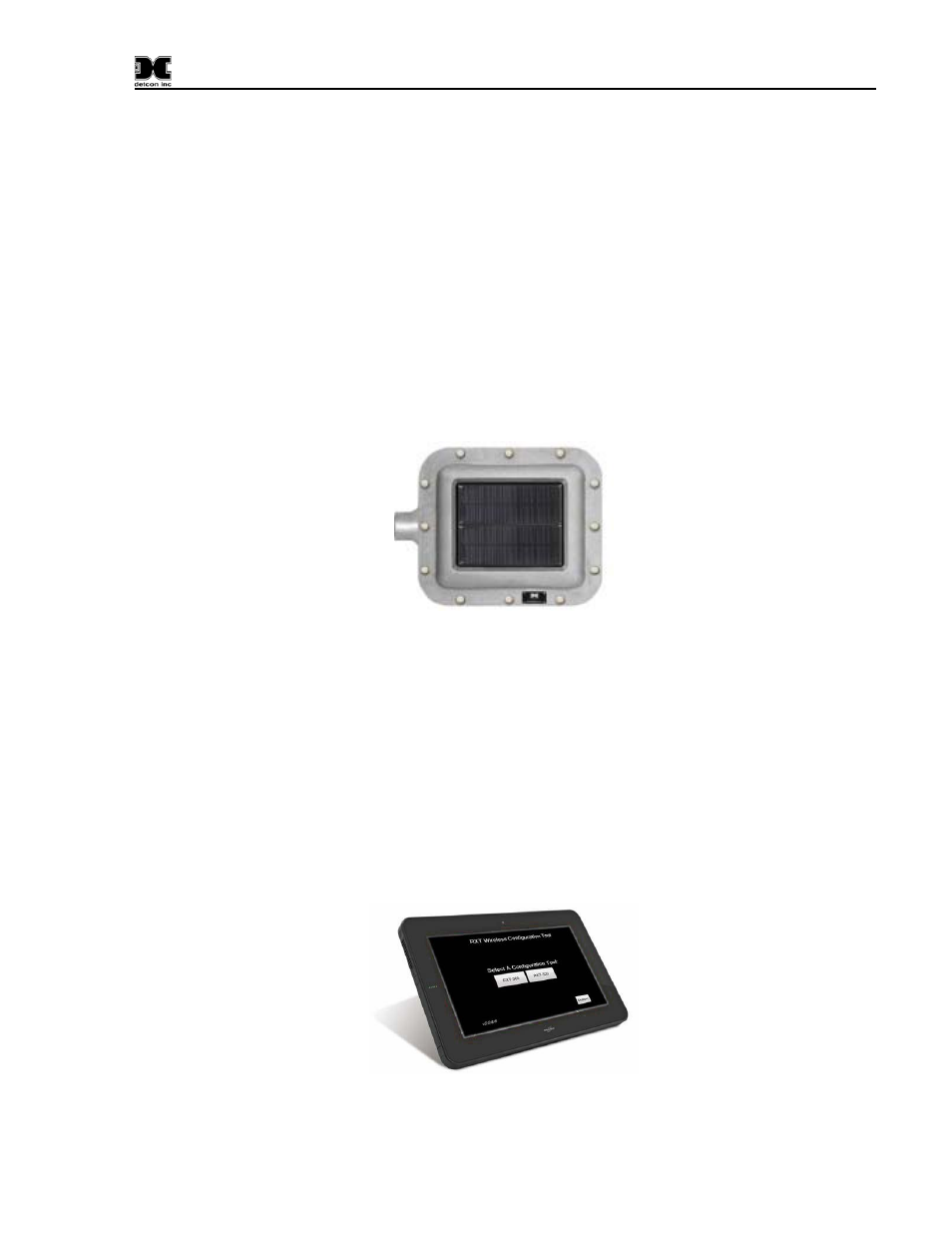

Figure 6 Solar Panel
1.7 RXT Wireless Configuration Tool (Optional)
The RXT Wireless Configuration Tool (WCT) is an optional device designed to configure Detcon’s RXT-
300 transceivers. The WCT is used to configure and change the wireless channel on a collection of RXT
transceivers and to configure RXT-300 wireless networks which interface with the SW HMI panel
assembly.
The RXT WCT is a lightweight and powerfully equipped device with a 10.1” touch panel widescreen LCD
for display and user input. It interfaces with a USB wireless radio that enables communication with
wireless radios of the same type installed in RXT-300 transceivers allowing for their configuration. It can
be powered by 100-240VAC with the supplied AC adapter or operate off of the internal rechargeable
battery for up to 8 hours on a single charge. Refer to its instruction manual for more detailed information.
Figure 7 RXT Wireless Configuration Tool
