HMI Panel Instruction Manual
SmartWireless HMI Panel Instruction Manual Rev. 1.0 Page 4 of 20

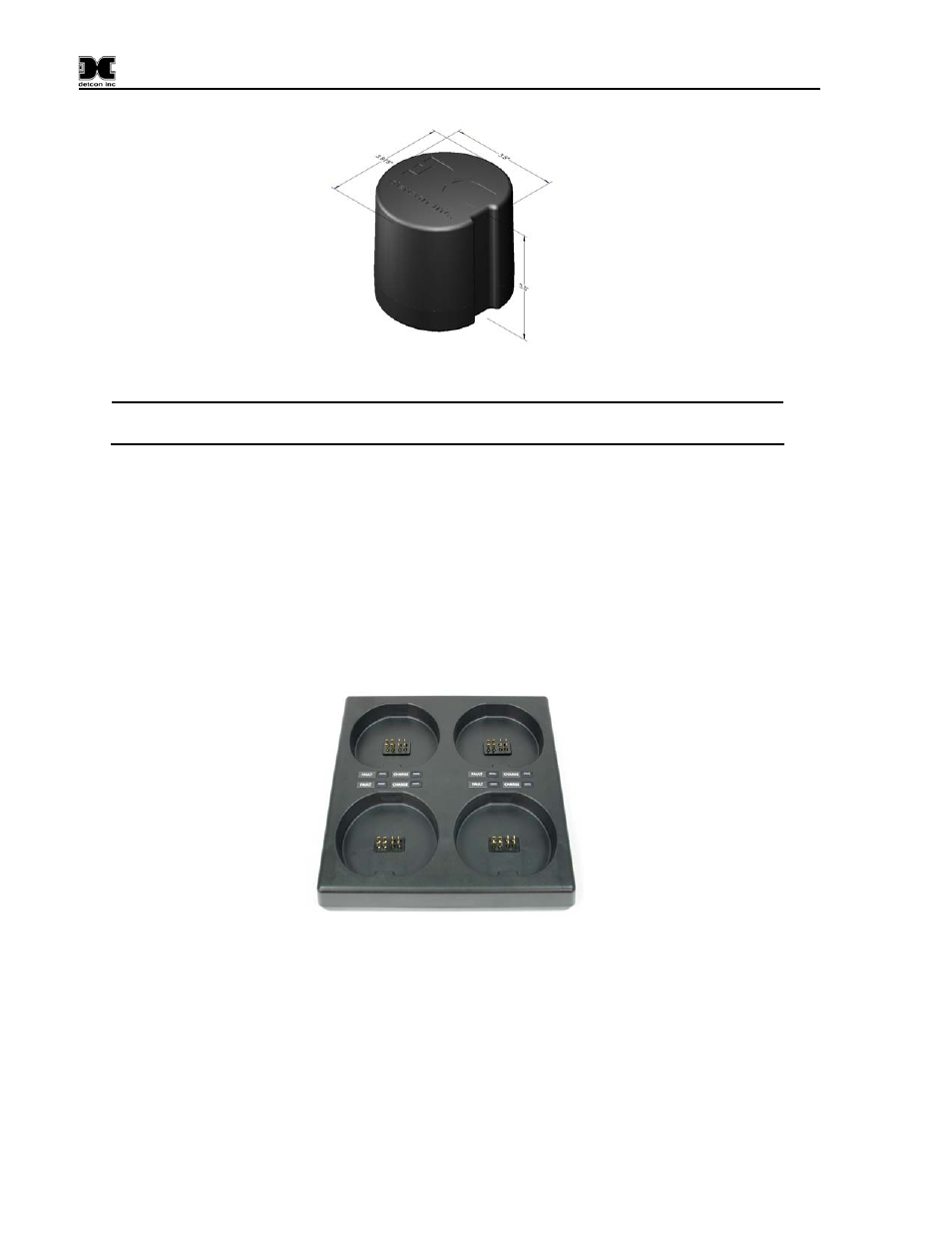

Figure 4 Smart Battery Pack
NOTE: The SW HMI panel can also be powered by a customer provided external DC power
source on connector J5 of the terminal board with a voltage range of 11.5-30VDC.
1.5 Quad Battery Charger (Optional)
Detcon’s Smart Battery Pack can be charged as needed using Detcon’s optional Quad Battery Charger
which can charge up to four battery packs at one time. The Quad Battery Charger comes with a plug-in
AC/DC adapter that plugs into a standard 120VAC outlet for power. The DC end of the adapter plugs into
the DC power jack of the charger providing 24VDC. The Quad Battery Charger has four charging ports,
each with 8-pin Beau connectors for battery pack connection. The ports and connectors are keyed to
prevent incorrect positioning and connection. Each port has its own “FAULT” LED indicator and
“CHARGE” LED indicator and will display either a red light or green light depending on the status of each
battery being charged. Charging times will vary depending on the charge state of each battery pack, but a
full charge of a depleted battery pack can take up to 24 hours.
Figure 5 Quad Battery Charger
When first powered on and with no battery packs connected to the charger, all the LED indicators on the
Quad Charger should be green. When a battery pack is seated into a charging port, the “CHARGE” LED
will change from green to red indicating the battery pack is not sufficiently charged. Once fully charged,
the LED will change from red to green and the battery pack is ready to be used.
The “Fault” LED should remain green indicating that there are no problems with the battery pack or
charging port. If the “Fault” LED turns red with the battery pack connected, then there is a problem or
issue with the battery pack and it should not be used and be removed immediately. If the “Fault” LED
