1.4 Terminal Board and Smart Battery Pack (N7 Enclosure Only)
The Model SW-HMI-32-N7 panel assembly comes with a custom terminal board (5143) and smart battery
pack mounted inside an aluminum condulet. The terminal board includes connector plugs for the
following:
J1: 6-Pin Phoenix Connector – RXT-300 Wireless Transceiver (Power, Modbus™ & I
2 C)
J2: 5-Pin Phoenix Connector – SW HMI Panel (Power & Modbus™)
J3: 6-Pin Header – RXT-300 Programming Port (Detcon Factory use only)
J4: 3-Pin Phoenix Connector – Not Used
J5: 3-Pin Phoenix Connector – External DC Power In (11.5-30VDC)
J6: 8-Pin Beau Connector – Smart Battery Pack
J7: 3-Pin Phoenix Connector – Not Used
J8: 3-Pin Phoenix Connector – Programming Interface to RXT-300 Wireless Transceiver
Refer to section 3.2 Modbus & Power Connections for more information about the setup of the terminal
board.
S E N S O R /
H M I
R B K W B U G N
J 2
B U W B K R W / W /
B R B K
W I R E -
L E S S
J 1
J 4
J 6
J 8
J 3
T P 2
m A - +
+ - S A W B W A S B
J 7
T
P
1
1 2 3
2
3
4
5
6
7
1
E x t e r n a l D C
P o w e r I n
1 1 . 5 - 3 0 V D C
N o t U s e d
R X T - 3 0 0 T r a n s c e i v e r
H M I P a n e l
R X T - 3 0 0
P r o g I n t e r f a c e
N o t U s e d
R
X
T
-
3
0
0
P
r
o
g
P
o
r t
︵
D
e
t
c
o
n
U
s
e
O
n
l
y
︶
J 5
S m a r t B a t t e r y P a c k
W /
B U
W /
G N
W / V

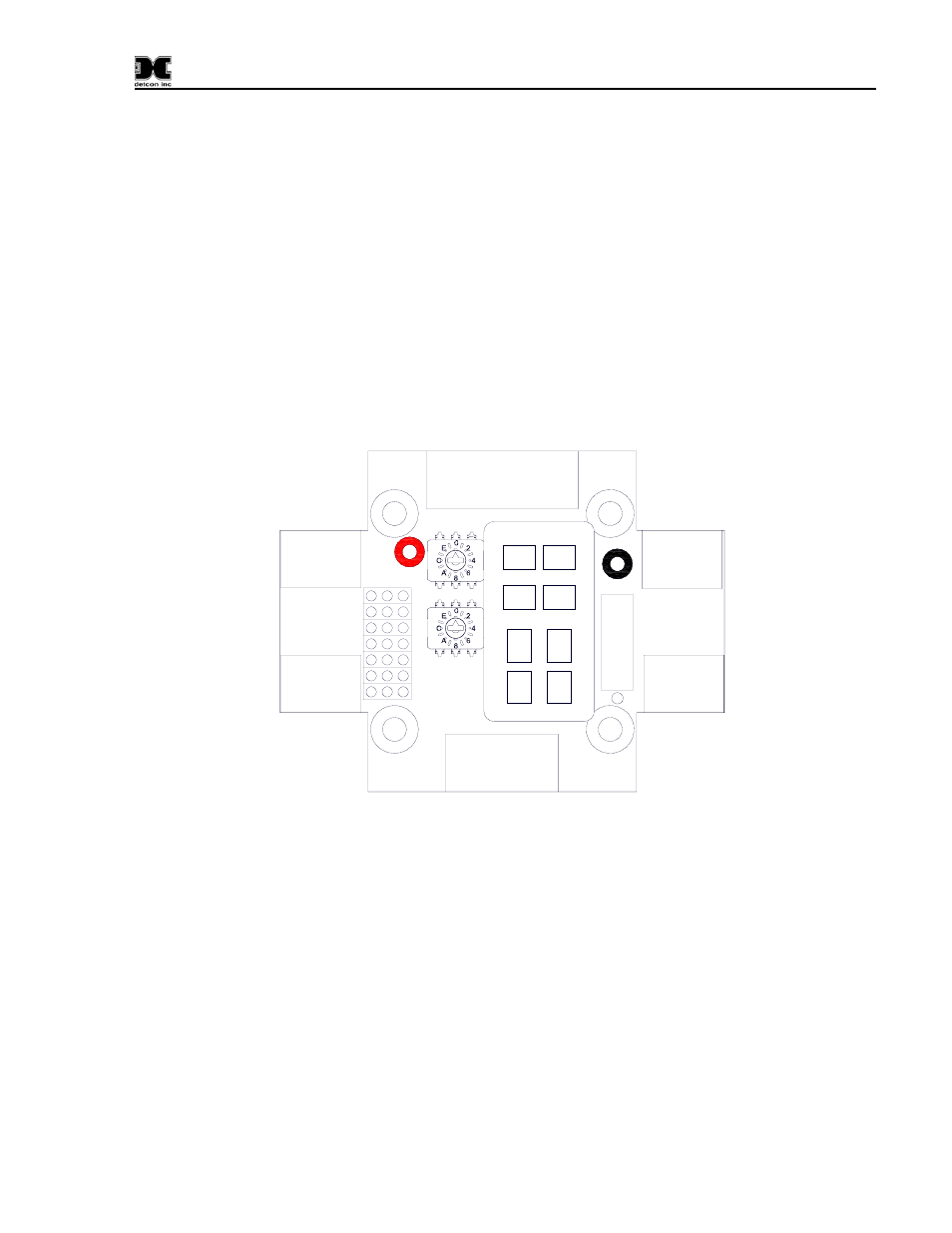

Figure 3 Terminal Board
The available battery pack for the SW HMI panel N7 assembly is Detcon’s plug-in Smart Battery Pack
which provides an output of 12VDC and allows the assembly to be remotely mounted without the need for
any cables because of its wireless operation (See Figure 4). If installed, the RXT-300 transceiver will
detect the battery and will continuously query the battery pack for remaining battery life. The battery pack
consists of rechargeable Lithium-Ion batteries and is equipped with integrated safety electronics that
include fuel gauge, voltage, current and temperature monitoring circuits. This “smart” circuitry
continuously monitors the battery’s condition and reports critical status information to the wireless
transceiver via the Modbus™ registers. The battery pack is designed to plug onto an 8-pin Beau connector
on the terminal board and should not be exposed to outside elements without being housed and protected.
Only Detcon products specifically designed to utilize these battery packs should be used. Operating
periods before recharge will vary based on devices attached along with the transceiver and the usage of
those devices, but can be as long as 2-3 months and battery life can be up to 5 years before battery pack
replacement is required. Improper use of the battery pack may be hazardous to personnel or the
environment and will void the warranty.
