HMI Panel Instruction Manual
SmartWireless HMI Panel Instruction Manual Rev. 1.0 Page 15 of 20
Use the down arrow “v” switch to move to the next menu item or use the up arrow “u” switch to move to
the previous menu item by swiping the programming magnet over the corresponding markers. Swiping the
PROG switch again will return the unit to normal operation. When the appropriate Menu Item is found, the
ENTER switch is used to enter that menu item by swiping the ENTER marker.
NOTE: The HMI automatically times out of Main Menu mode and returns to the Main
Display after 15 seconds of inactivity. While in Main Menu mode, there are no updates to gas
readings.
NOTE: The LCD has a backlight that will automatically turn off after a user-defined amount
of inactivity. The LCD backlight will come on automatically as soon as any magnetic switch is
activated. This is a feature designed to save on power.
There are 7 Main Menu items and their functional descriptions are discussed in the following sections.
MAIN DISPLAY
NORMAL OPERATION
MAIN MENU
RESPONSE TIMEOUT &
INTERPOLL DELAY
MAIN MENU
RF SILENCE & INHIBIT TIMERS
MAIN MENU
ALARM TEST MODE
MAIN MENU
SYSTEM DIAGNOSTICS
MAIN MENU
ABOUT SYSTEM
MAIN MENU
DISPLAY SETTINGS
RXT 300S: ##
RESPONSE TIMEOUT: ####
INTERPOLL DELAY: ####
ALARM TEST MODE: ON/OFF
RF SILENCE: ON/OFF
INHIBIT: ##:##
INHIBIT: START/STOP
MAIN MENU
AUTO CONFIGURE SYSTEM
BRIGHTNESS: ###
CONTRAST: ###
BACKLIGHT OFF: ##:##
LCD DISPLAY TEST
LED DRIVER TEST
EXT RESET SWITCH TEST
HMI F/W VERSION
HMI H/W VERSION
MICROCNTRL F/W VERSION
RXT-300 F/W VERSION
RXT-300 DEVICE IMAGE

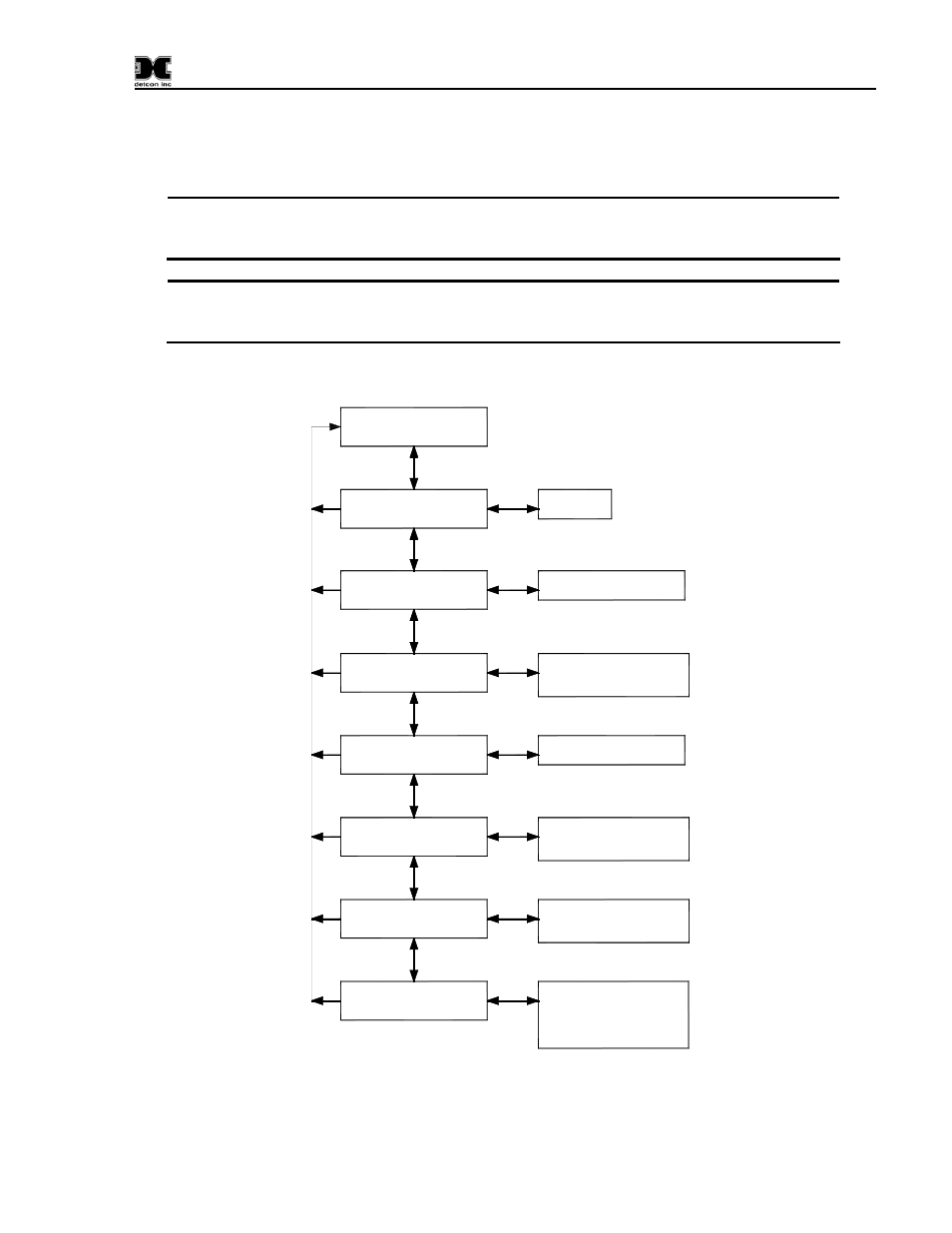

Figure 18 Menu Flow Chart
