Camera(s): area are used to record the events triggered by this digital input.

 8. Click OK.

Setting Up Digital Outputs

Once a digital output is configured, you can manually trigger the digital output in an image panel. See

Triggering

Digital Outputs

for more information.

NOTE: The dialog box may appear differently depending on the camera. Options that are not supported by the
camera will be disabled or hidden.

 1. In the Setup tab, select a camera and click

.

 2. In the Digital Outputs: area, select an output.

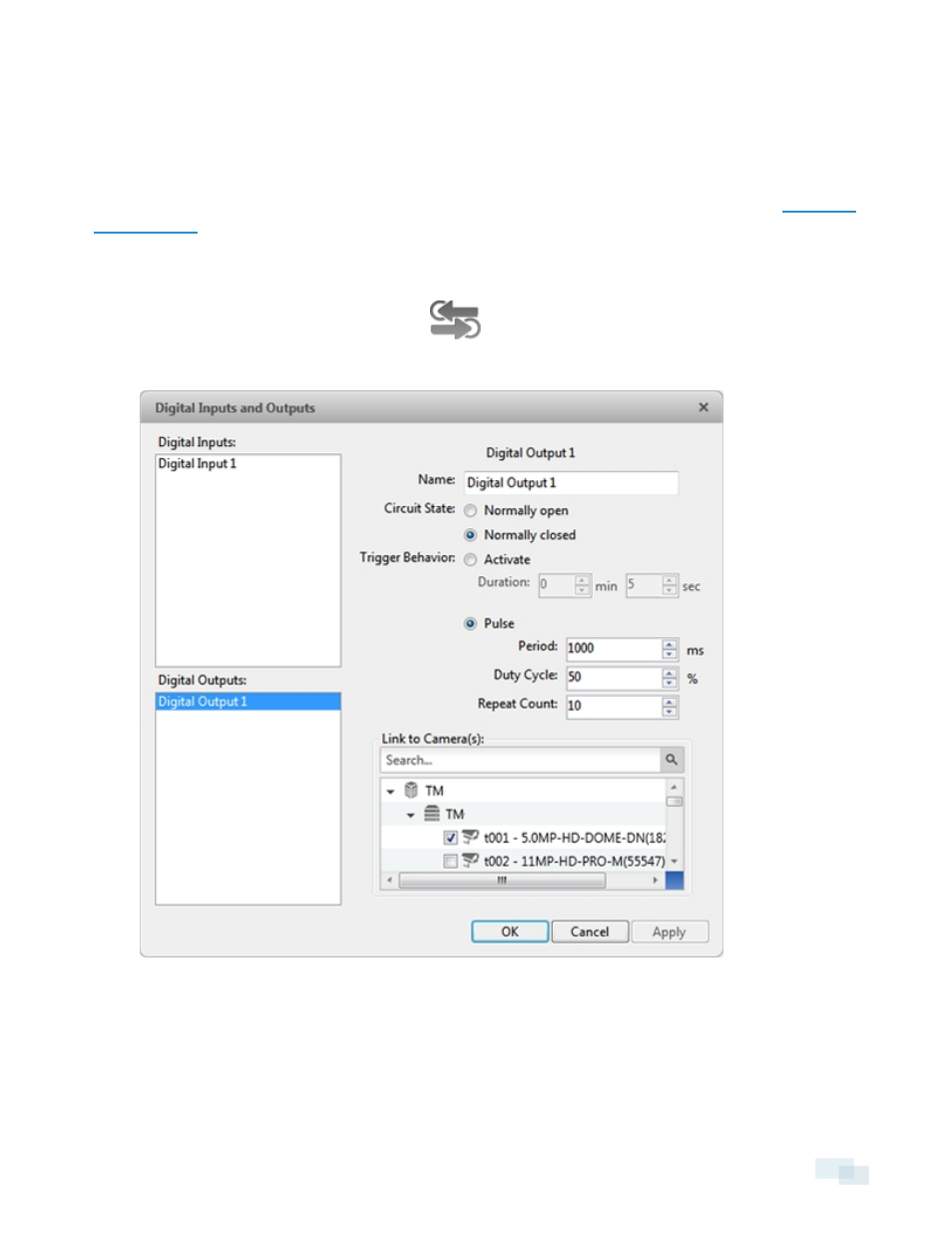

Figure 57:

Digital Inputs and Outputs box: Digital Output Settings

 3. Enter a Name: for the digital output.

 4. Select the digital output's default Circuit State:.

Setting Up Digital Outputs

75
