Network
Use the camera Network dialog box to change how a camera connects to the server network.
NOTE: Some features are not displayed if the server does not have the required license, or if you do not have
the required user permissions.
1. In the Setup tab, select a camera and click .
2. In the Network dialog box, select how the camera obtains an IP address:

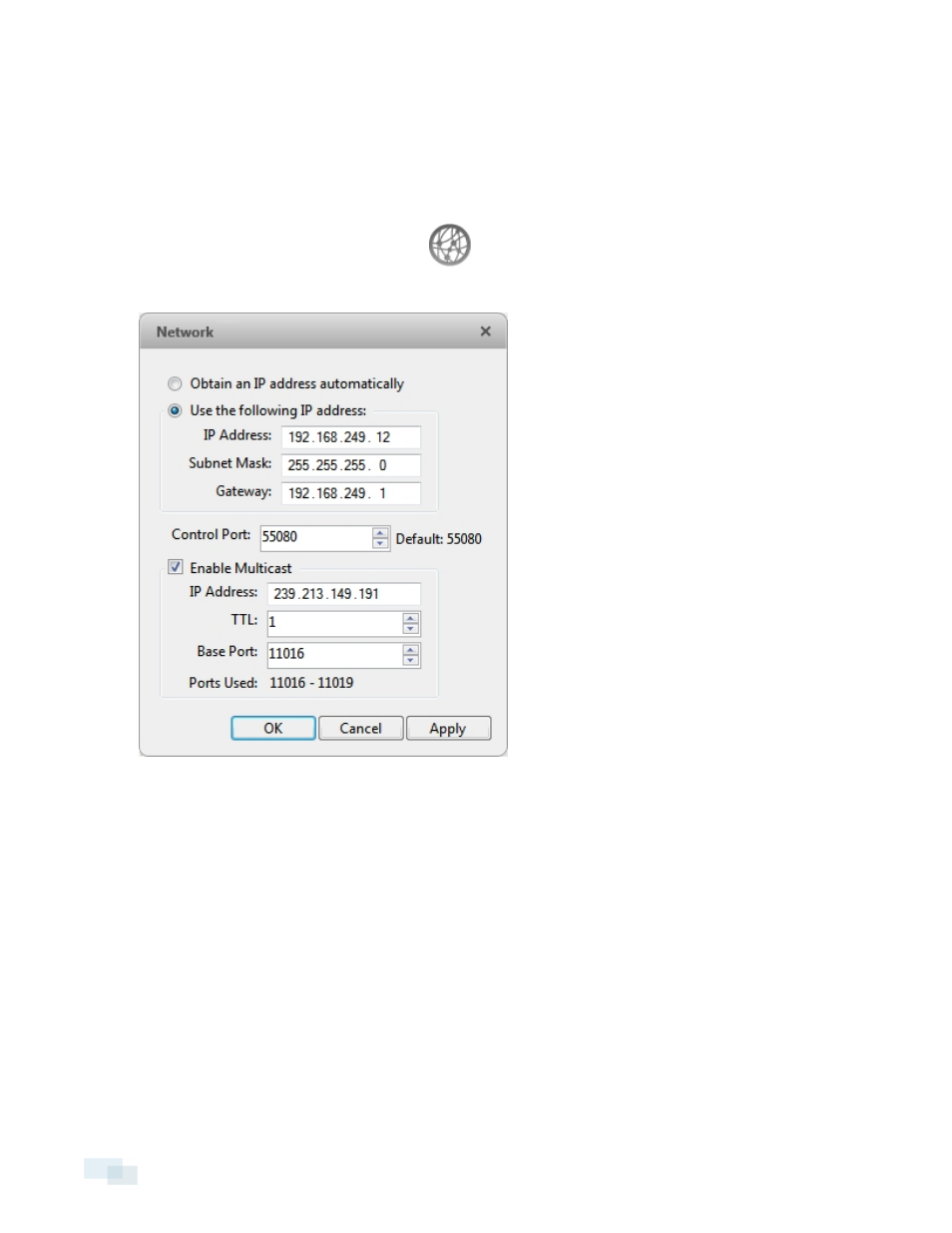

Figure 47: Network dialog box
l
Obtain an IP address automatically: select this option for the camera to connect to the network
through an automatically assigned IP address.
The camera will attempt to obtain an address from a DHCP server. If this fails, the camera will obtain
an address through Zero Configuration Networking (Zeroconf) and select an address in the
169.254.0.0/16 subnet.
l
Use the following IP address: select this option to manually assign a static IP address to the
camera.
Enter the IP Address:, Subnet Mask:, and Gateway: you want the camera to use.
3. Select the Control Port: for connecting to the camera. This port is also used for manually discovering the
camera on the network.
4. Click OK.
