Chapter 1 Introduction
Rear Panel

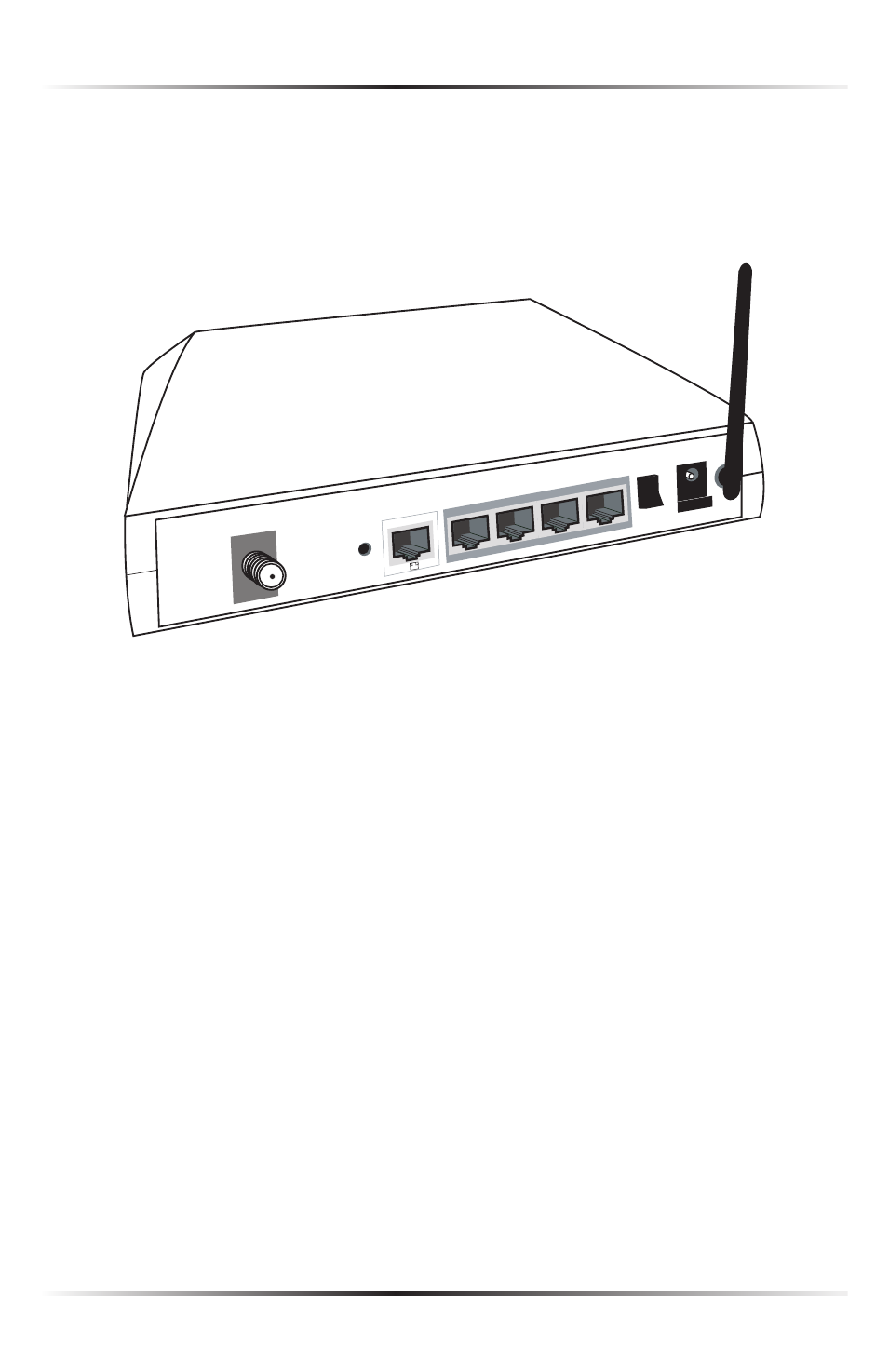

The rear panel of the Router features seven ports (Coax, Ethernet WAN , Ethernet
LAN [4], and Power), as well as a Reset button and Power switch.
1
Reset
2
3
4
100
100
Coax
Reset Reset On/Off
5VDC 3A
100
100
10
10
10
10
Coax Port
The Coax port connects the Router to the
ISP or other devices using a coaxial
cable.
Reset Button
To restore the Router’s factory default settings, press and hold the Reset button
for approximately ten seconds. The reset process will start about
ten seconds
after releasing the button. When the Router resets, all the lights on the front
panel turn off, and then the lights start flashing. The Router has completed its
reset process when the Power light glows steadily green.
M Caution: Do not unplug the Power cord from the Router dur-
ing the reset process. Doing so may result in the loss of the
Router’s configuration information. If this occurs, reset the
Router again.
