Actiontec Wireless Broadband Router User Manual
51
Chapter 5 Using Network Connections
Internet Connection Firewall
Click in the “Enabled” check box to activate the Router’s firewall on the Ethernet
connection. Actiontec does NOT recommend activating this feature.
Additional IP Addresses
Clicking New IP Address generates the “Additional
IP Address Settings” screen,
where additional IP addresses can be created to access the Router via the
Ethernet connection.

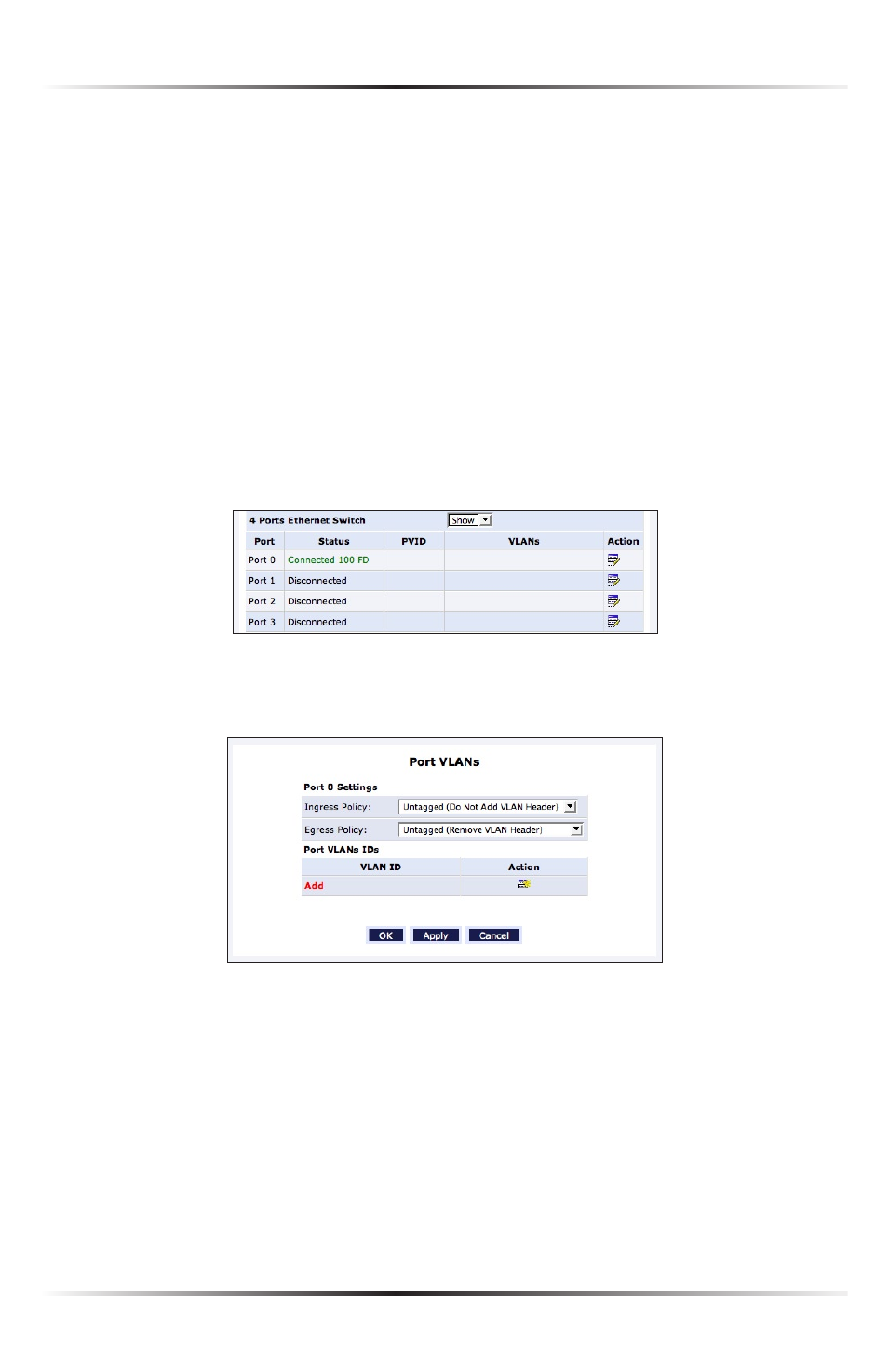

4 Ports Ethernet Switch
This section displays the connection status of the Router’s four Ethernet ports.
Clicking on a connection’s “Action” icon (in the column on the right) generates
the “Port
VLAN s” screen, where ingress and egress policies can be edited.
