Page 87
Chapter 3
77

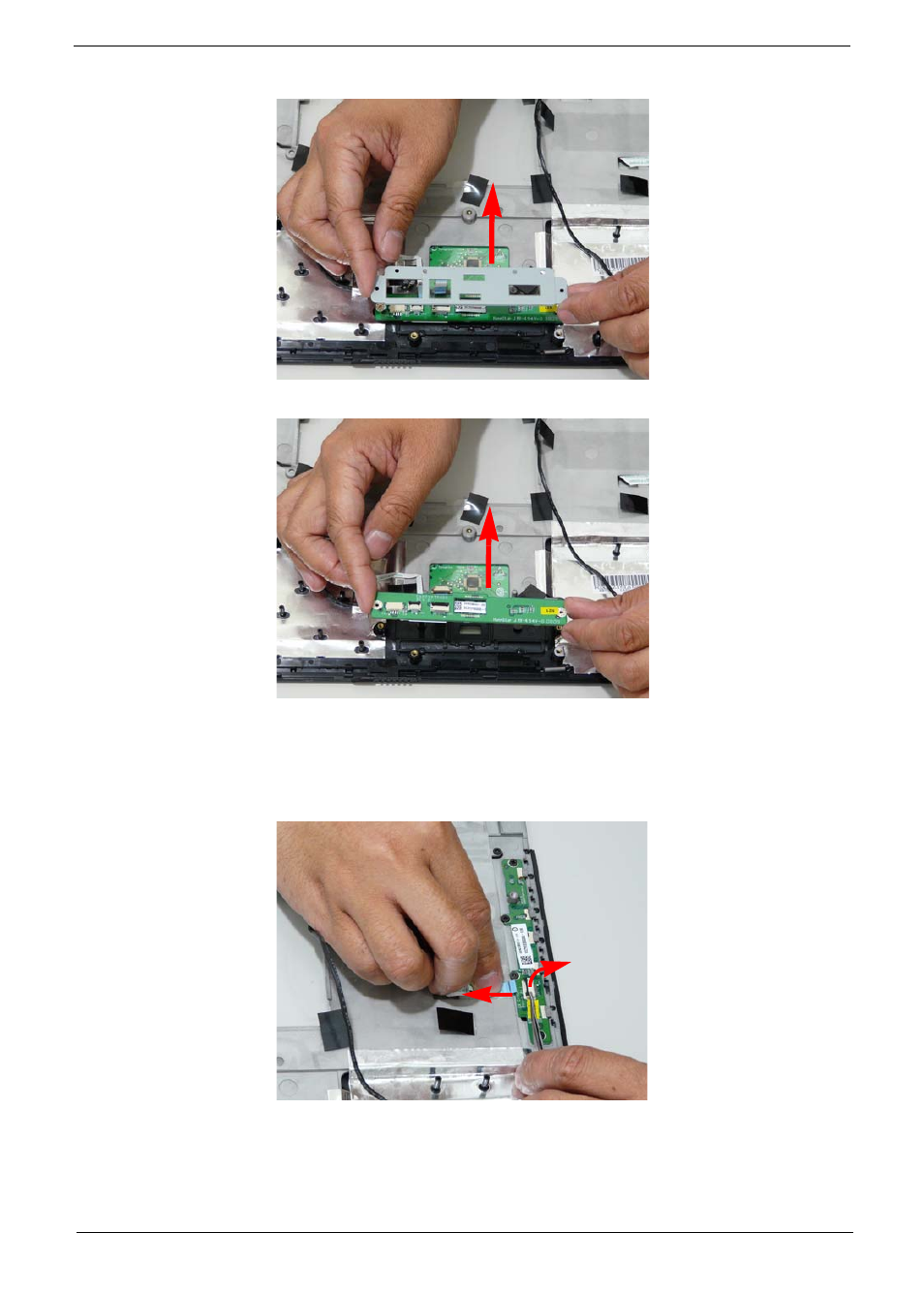

5. Remove the bracket from the board.
6. Remove the Finger Print Reader board from the Upper Cover.
Removing the Launch Board
1. Remove the Upper Cover. See “Removing the Upper Cover” on page 71.
2. Lift up the locking latch and remove the FFC cable as shown.
3. Remove the four screws from the Launch Board.
