156 Chapter 5

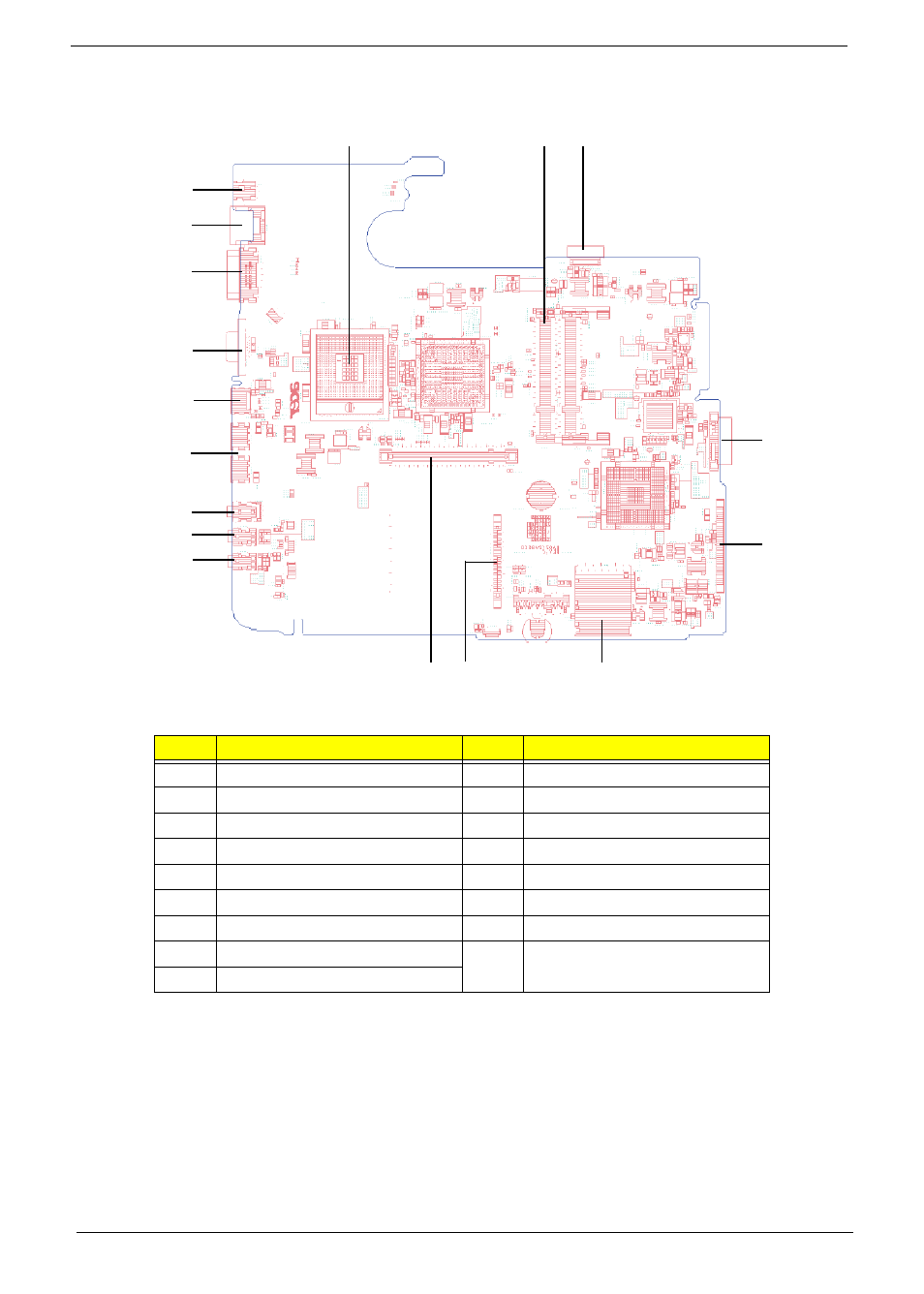

Bottom View
No. Description No. Description
1 CPU Socket 10 Audio Connector
2 DDR2 Connector 11 SPDIF Connector
3 Battery Connector 12 USB Connector
4 ODD Connector 13 HDMI Connector
5 HDD Connector 14 CRT Connector
6 Card Reader Connector 15 Docking Connector
7 HDD Connector 16 RJ 45
8 MXM Connector 17 DC Jack
9 Audio Connector
1 3 2
4
5
6 8
9
12
13
14
7
10
11
15
16
17
