Chapter 3
91

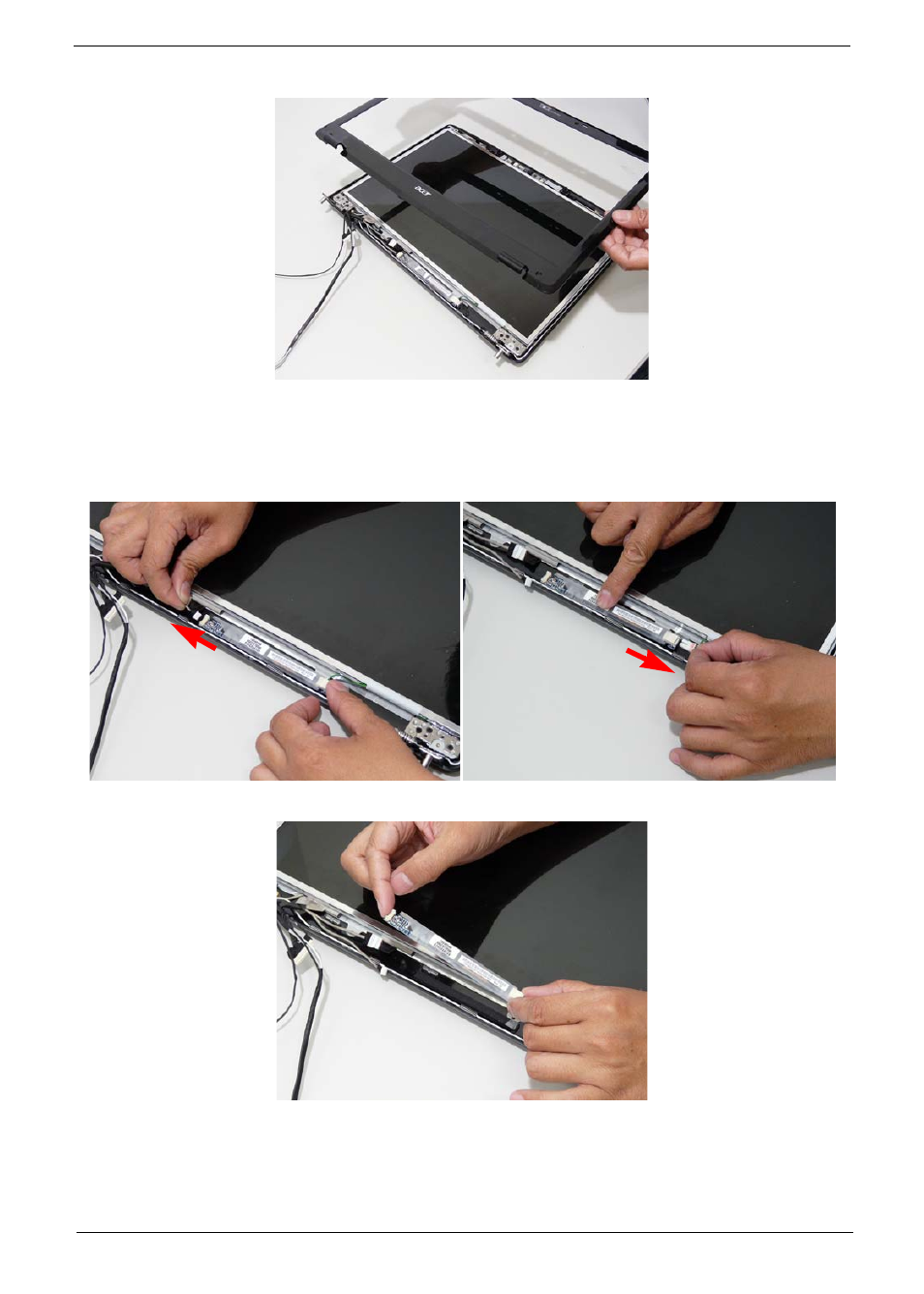

4. Lift up the bezel and remove it from the LCD Module.
Removing the Inverter Board
1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 90.
2. Disconnect the left and right Inverter board cables as shown.
3. Lift up the Inverter Board and remove.
