Caution – Hired-Hand RS-400 Door User Manual
Page 8
Part No. 4801-5170 Rev 5/08
RS 400 Door
Page 8 of 26
Right Track
Head Unit
Mounting Holes
Mounting Holes
Left Track
5.5
Attachment Points of Door
CAUTION!
Framing material must be of sufficient strength for securing screws.
When sizing the clear opening for attachment of the door, pay close attention to the following
guidelines. Fasteners mount through outer flanges of door to secure door in place. Flange widths
are shown in Diagram 3.
1. After assembling door, make sure that door is plumb & square. See Diagram 5.
2. The Head Unit has pre-drilled holes for fastening to horizontal
framing. Make sure that Head Unit will align with framing
structure.
3. The vertical members attach to framing by
mounting through outer flanges of vertical
members. Make sure outer flanges overlap
with framing structure.

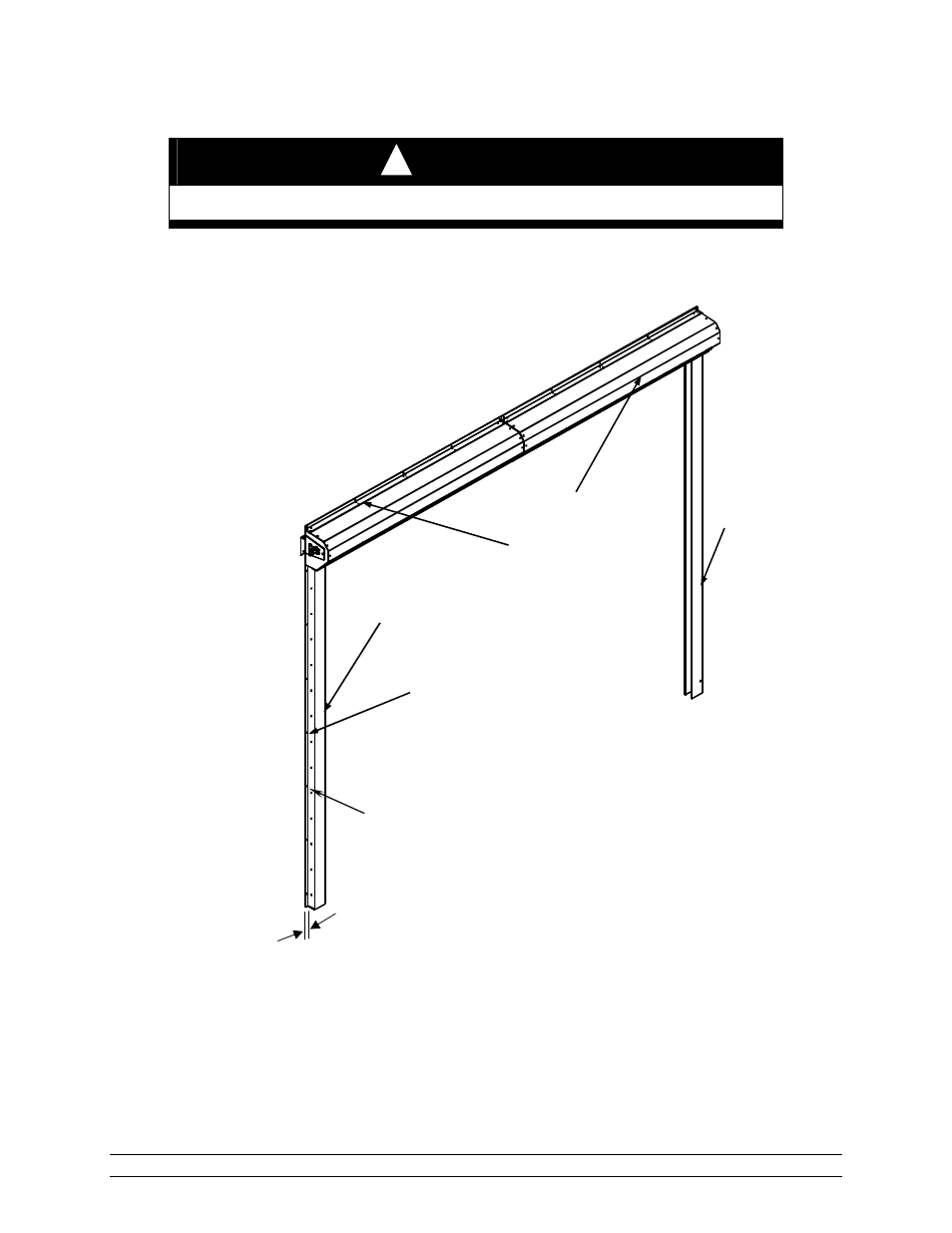

Diagram 3
Attachment Points
Mount through the outer flange
into framing members
1 1/4 in. (3.175 cm)
Outer Flange
!
