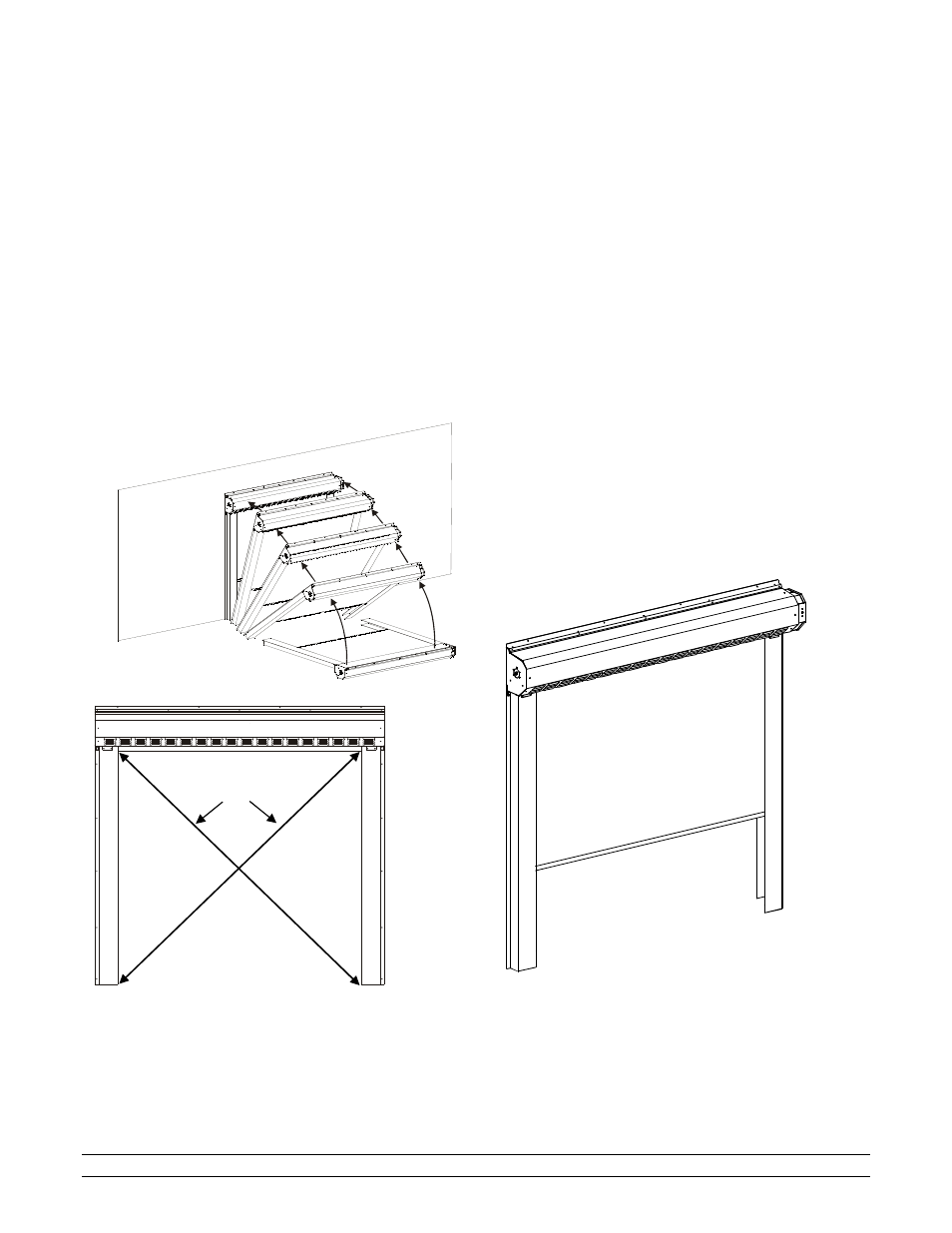

Diagram 5
Door Assembly
FRONT
5.6.2 Fastening
Door
Assembly to Clear Opening
After attaching tracks to top section, the door assembly is
ready for installation to the clear opening. Refer to
Diagram 4 and Diagram 5.
1.
Use a tape measure and make sure that the overall
height and overall width of the clear opening meet
the requirements: Overall Height = Door Opening
Height + 12.5 in. (31.75 cm) Overall Width = Door
Opening Width + 13.5 in. (34.29 cm)
2.
Make sure that the door assembly is plumb and
square. (Diagonal measurements, etc.)
3.
Center door assembly on clear opening. Align the
bottom of each vertical member with the respective
framing board or posts of the clear opening.
NOTE: The vertical members should be aligned so that
their outer flanges will exactly overlap with the
framing boards or posts when the door
assembly is raised into position.
4.
Assemble workers and equipment into position on each side
of the door assembly. SLOWLY LIFT TOP OF DOOR
ASSEMBLY TO RAISE THE DOOR.
5.
Lean door assembly upright against clear opening.
6.
Carefully press flanges of the door assembly flush against
faces of framing boards or posts. When the openings are
matched, level the top and sides using a float level on the
head unit, on each track, and verify the inside diagonal
measurements are the same.
IMPORTANT: Leveling is very important because the
curtain may bind if not leveled properly.
7.
As shown in Diagram 5, fasten Tek screws (in steel) or lag
screws (in wood) through the flanges on sides of door
assembly. Securely tighten all screws.
8.
On the end bracket and upper flanges of the head unit there
are attachment points for fastening screws. Fasten Tek
screws (in steel) or lag screws (in wood) through the holes.
This secures the top of the door to the clear opening.
NOTE: Shift bottom of door right or
left until both diagonal
measurements are equal. At
that point, the door is square.
The two diagonals
must be equal.
This ensures that
the RollSeal Door is
mounted square.
