Hired-Hand PowerTrak: Auxiliary Status Switch Kit User Manual
Auxiliary status switch kit, Power-curtain, Ordering number

Auxiliary Status Switch Kit
for
OR
POWER-CURTAIN
™
HIRED-HAND MFG., INC.
• 1733 Co Rd 68 • Bremen, Alabama 35033 • Phone 256-287-1000 • Fax 256-287-2000
Manual Part No. 4801-5320 rev 3-04 Page
1 of 6

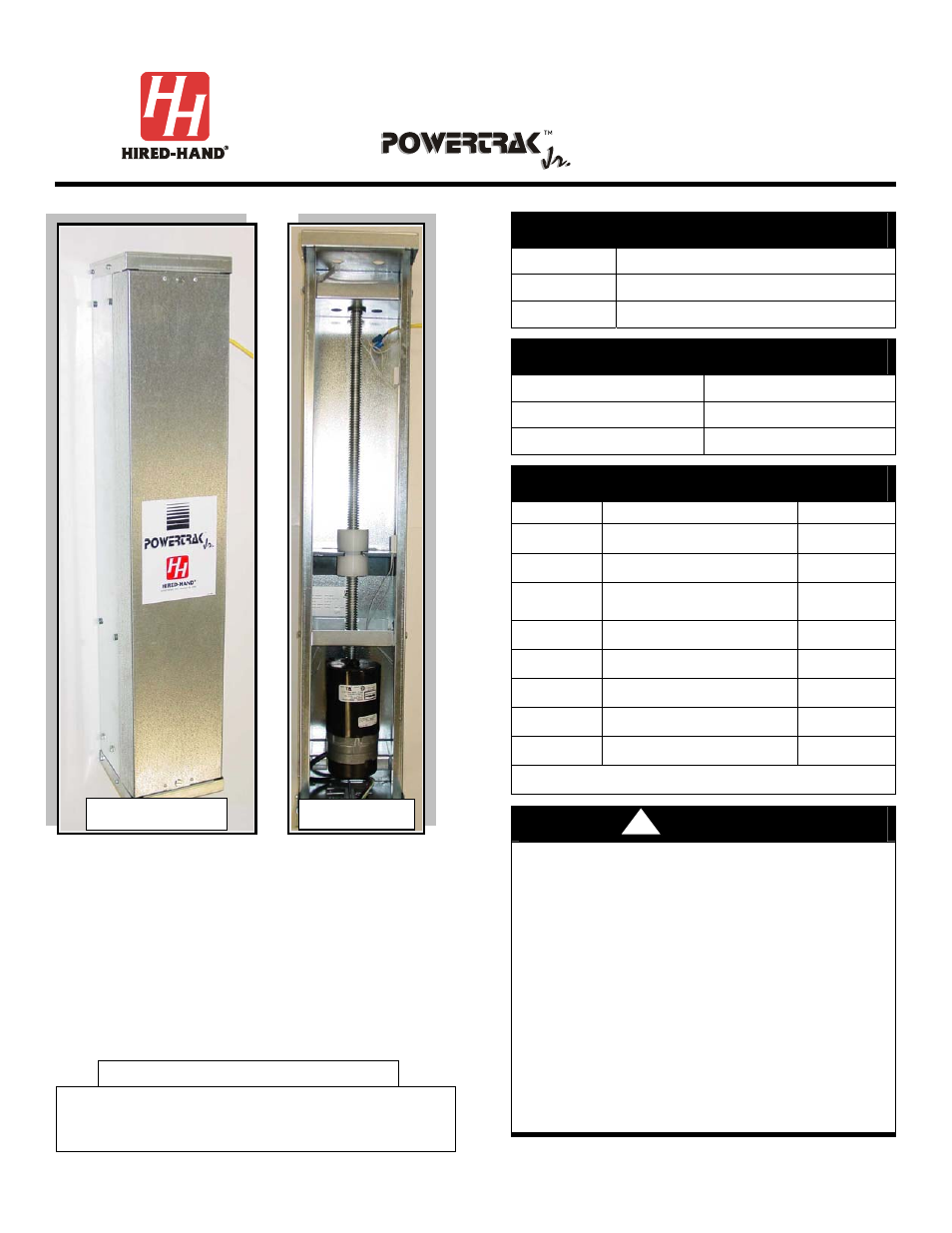

FIGURE 1
FIGURE 2
DESCRIPTION
The Auxiliary Status Switch Kit can be added to a new or
existing PowerTrak™ Jr. unit or to an existing
PowerCurtain™ unit to provide upper and lower
curtain/vent height status.
NOTE: The insulated cable is not included with this kit.
When the status switch kit is received, check for
shipping damage or missing parts.
Important Installation Tip
Installation of this kit must be conducted only after the
PowerTrak™ Jr. / PowerCurtain™ unit is mounted, fully
functional, cable setup complete to the curtains or vents,
and the units limit switches already set.
Ordering Number
Part Number
Description
6650-0151
Auxiliary Status Switch Kit for PowerTrak™ Jr.
6650-0150
Auxiliary Status Switch Kit for PowerCurtain™
Tools Required
Drill Safety
Glasses
1/2" Drill Bit for cable grommet
Alcohol
Wipes
Required Parts
Notes Description Quantity
Mount on Load
Block
Magnet (Switch Activator)
2 (One is a
spare)
Mount for
Limits
Magnetic Reed Switch
2
Extra tape if
needed for
repositioning
Double-Sided Adhesive Tape
3 inches
Secure wires &
cable tie
Cable Tie Mount
2
Used for Cable
End Wiring
Grommet
(for PowerTrak Jr. ONLY)
1
Secure wires
3” Cable Tie
2
Wire-Nut Connector
4
Customer
Supplied
Insulated Cable
2 Cables
* Refer to Figures 4 and 6 for photos of the listed parts.
DANGER
Failure To Follow These Instructions May Result in Injury!
1. Disconnect All Electrical Power Sources To PowerTrak™ Jr.
/ PowerCurtain™ And Controller Before Installation Of
Auxiliary Kit.
2. When Connected To An Automatic Controller, PowerTrak™
Jr. / PowerCurtain™ MAY START AT ANY TIME.
3. Wiring And Connections Must Comply With All National
And Local Electrical Codes. Installation By Qualified
Electrician Required!
4. Use Caution When Handling Sharp Metal.
5. Always Wear Safety Glasses When Drilling, Fastening, Or
Cutting Metal.
6.
When Used In A Life Support Ventilation System Where
Failure Could Result In Loss Or Injury, The User Should
Provide Adequate Back-up Or Accept The Risk Of Such Loss
Or Injury!
POWERTRAK™ Jr.
Inside View
(shown without Cover)
!
