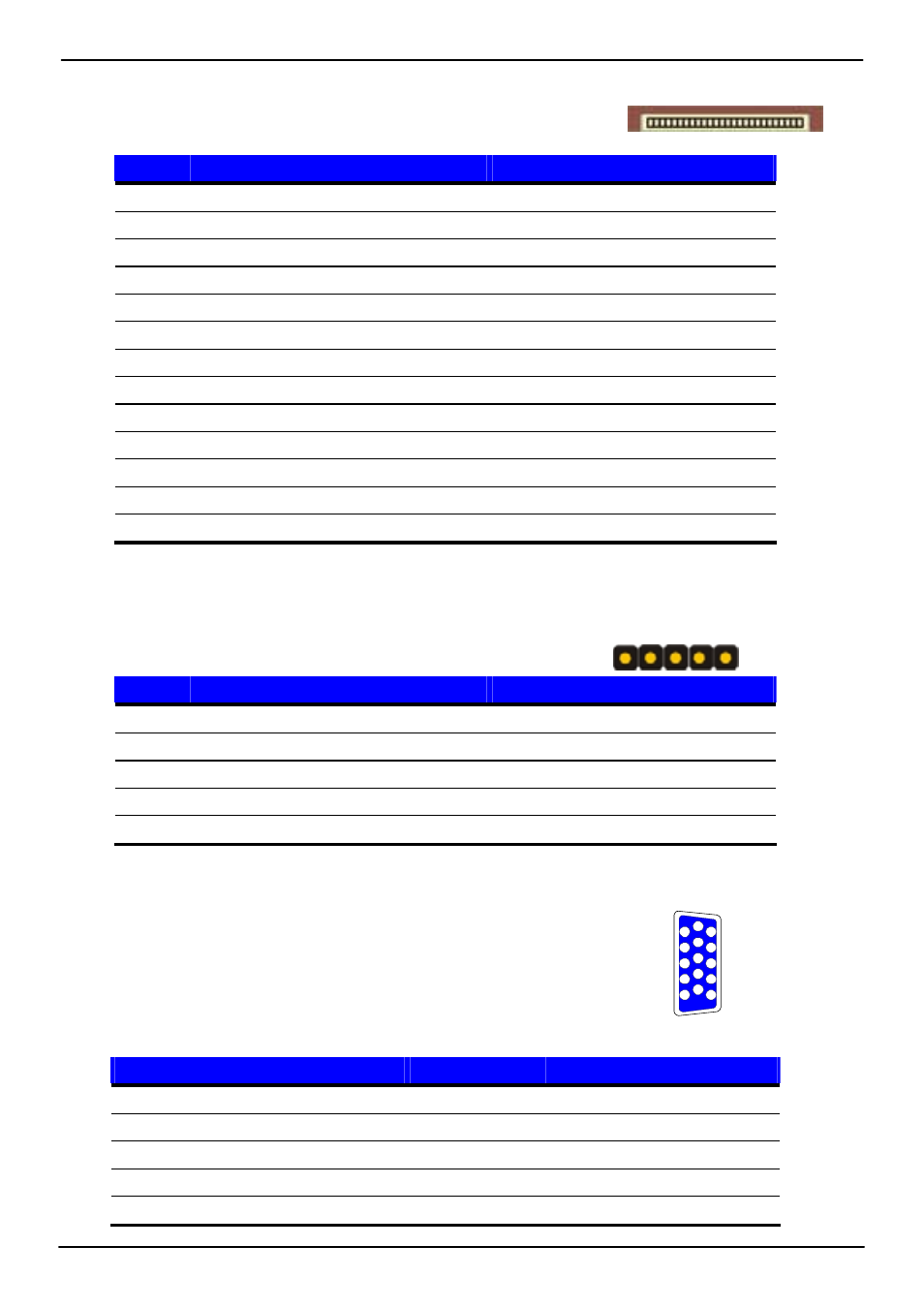

LE-363 User’s Manual

A.2

Connector: FDD
Type: 26-pin connector

Pin

Description

Pin

Description

1 VCC

2 INDEX

3 VCC

4 DRX

5 VCC

6 DSKCHG

7 N/C

8 N/C

9 N/C

10

MTR0

11 RPM

12 DIR

13 N/C

14 STEP

15 Ground

16 WRITE

DATA

17 Ground

18 WRITE

GATE

19 Ground

20 TRACK

0

21 N/C

22 WRX

23 Ground

24 RDATA-

25 Ground

26 SEL

A.3

5

1

Connector: CN_IR
Type: 5-pin header for SIR Ports

Pin

Description

1 Vcc

2 N/C

3 IRRX

4 Ground

5 IRTX

6

10

A.4 < VGA Port >

11

12
13

14

15

1
2
3
4
5

Connector: CRT
Type: 15-pin D-sub female connector on bracket

Pin

Description

Pin

Description

Pin

Description

1 RED

6 Ground

11 N/C

2 GREEN

7 Ground

12 5VSDA

3 BLUE

8 Ground

13 HSYNC

4 N/C

9 N/C

14 VSYNC

5 Ground

10 Ground

15 5VSCL
