LE-363 User’s Manual Hardware Setup

2.10

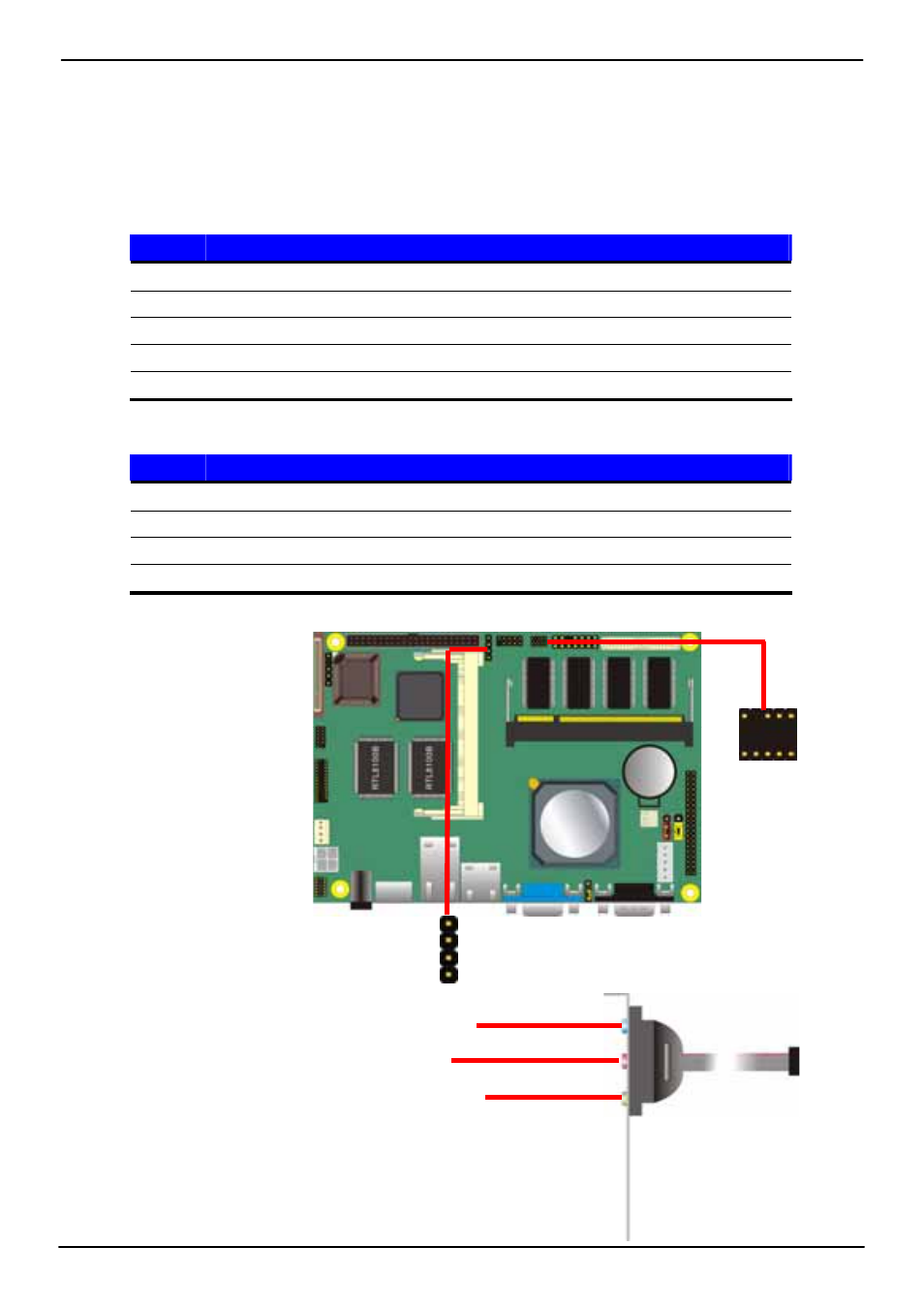

The board provides onboard AC97 audio interface with REALTEK ALC201A codec. Please

use attached audio cable in the package to have Line-out, Line-in and MIC-in interfaces.

Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header

Pin

Description

Pin

Description

1

Line – Right

2

Ground

3

Line – Left

4

MIC

5 MIC

6 Ground

7

N/C

8

Line Out – Left

9

Line Out – Right

10

Ground

Connector: CDIN
Type: 4-pin header 2.54mm pitch header

Pin

Description

1

CD – Left

2 Ground

3 Ground

4

CD – Right

9

1

1

CN_AUDIO

2

10

CDIN

4

Line-In

MIC

Line-Out

Onboard Audio Interface
