LE-363 User’s Manual Hardware Setup

2.7

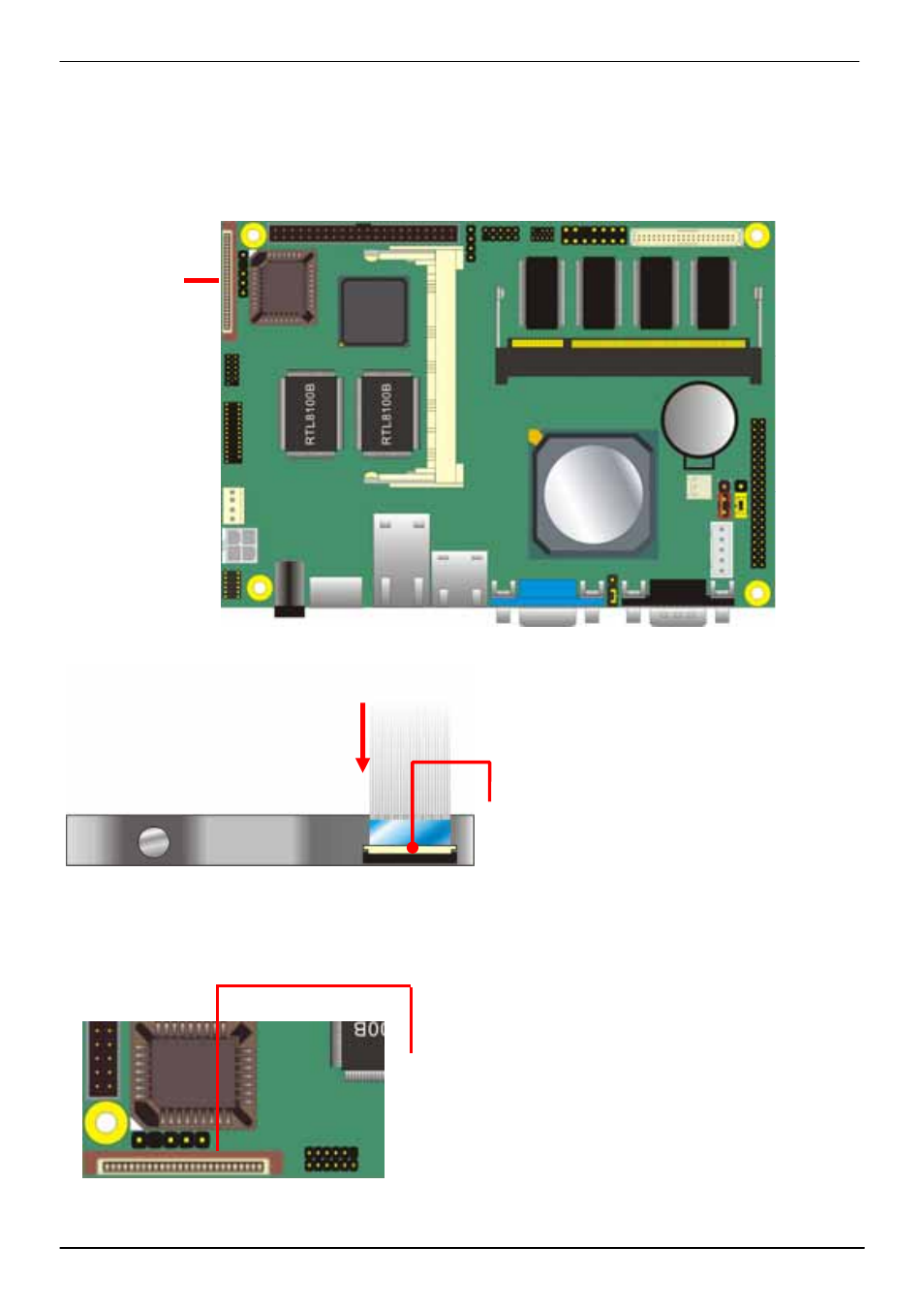

The board provides a slim type floppy port; please use the 26-pin ribbon cable in the

package to connect the floppy device.

FDD

4.

Lift up this plastic bar

5.

Slot the cable in (Blue paste for outside)

6.

Press back the plastic bar

Floppy rear side

1.

Lift up the brown plastic bar

2.

Slot the cable in (Blue paste for

brown bar side)

3.

Press back the plastic bar

Floppy Port

17
