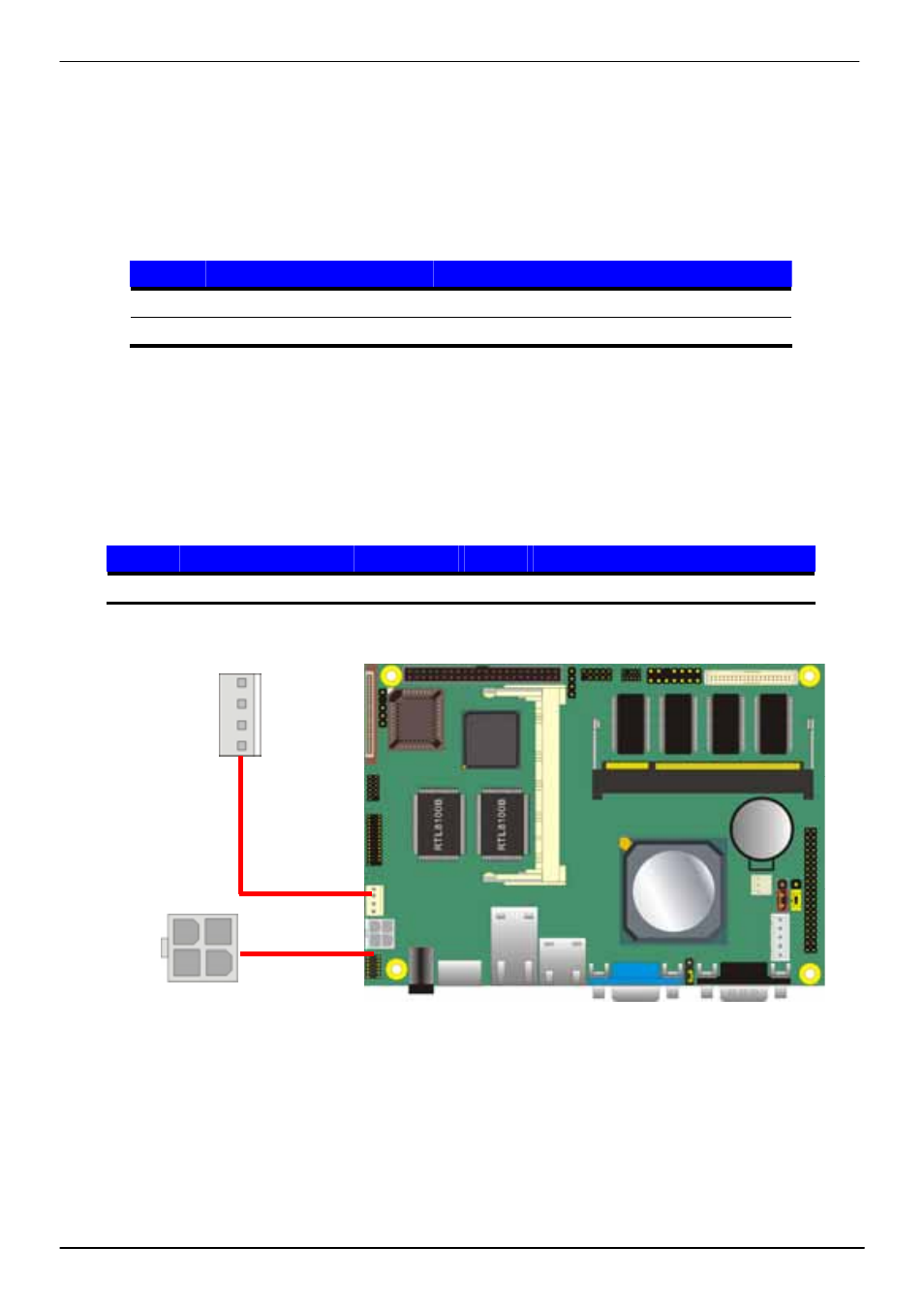

LE-363 User’s Manual Hardware Setup

2.13

2.13.1

The board requires DC 12V input with onboard DC jack or 4-pin 12V DC connector.


Connector: CN_12V
Type: 4-pin standard ATX2.0 +12V power connector

Pin

Description

Pin

Description

1 Ground

2 Ground

3 +12V

4 +12V

2.13.2

The board also provides one 4-pin connector with +5V/+12V output.

PS: Maximum output current for 5V/1A & 12V/1A

Connector: CN_SPWR
Type: 4-pin P-type connector for +5V/+12V output

Pin

Description

Pin

Description

Pin

Description

Pin

Description

1 +12V

2

Ground 3

Ground 4

+5V

4

CN_SPWR

2

1

3

4

1

CN_12V

Power Supply
