Chart 5.1 • Parts List
18
5.0 Parts • Heater Components and Parts List
5.0 Parts
1
264B, E, D
207
97
218
219
55A
1402
851B
3252
70
828
1325 826
1428
31B
83, 83A
212
208A
840A, 841A
223
204
200A or 201B
303A
12
9
10
217
5
380
15
14
16
21B
222A
214

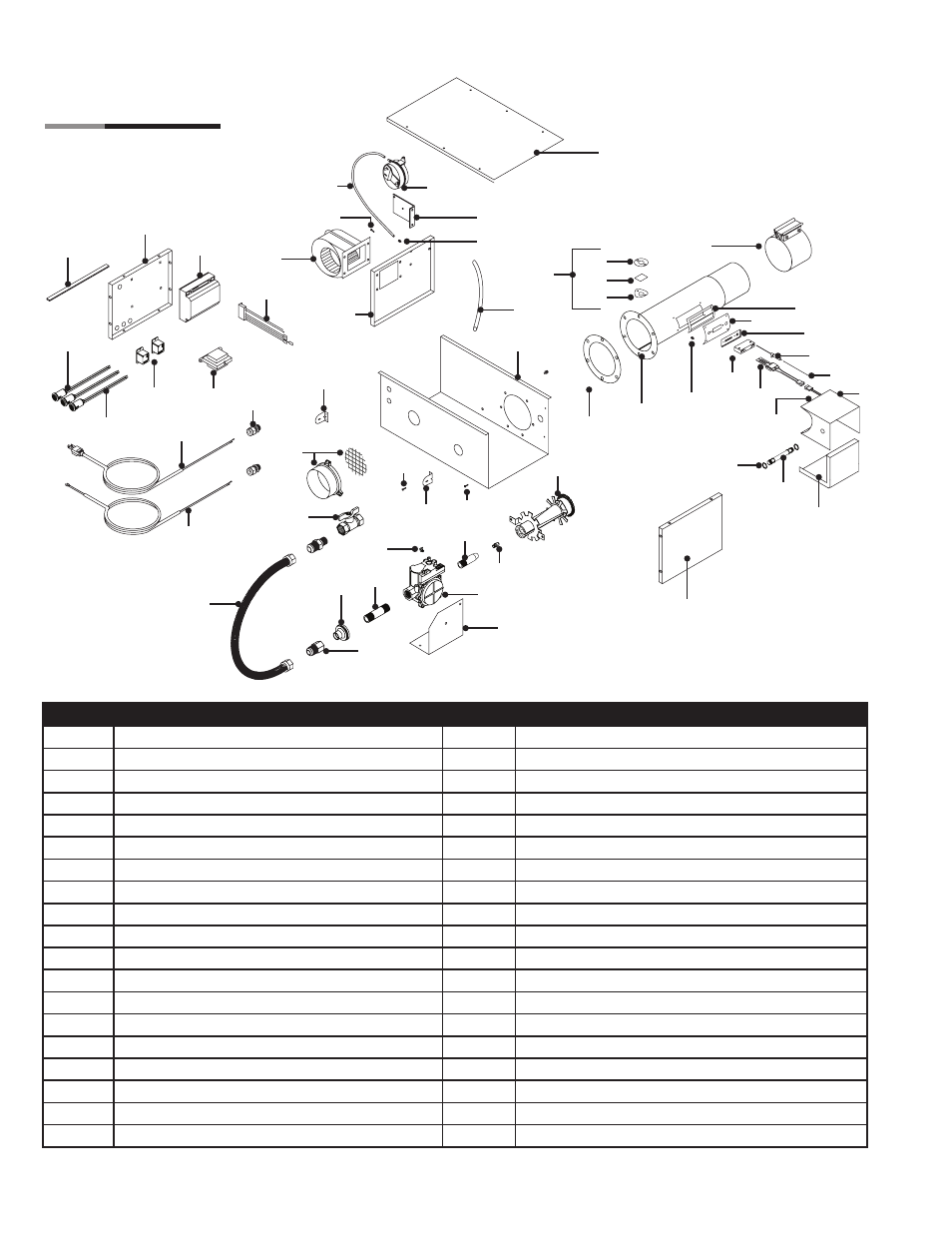

Figure 5.1 • Burner Assembly
Components
304
76
* Optional or upgrade item. ** 6 feet total required to cover outer edges of the burner control box.
31B
13
13
17
AG2 Series
301
334
114
333
68B
Part No. Description Part No. Description
TP-1 Control Box Cover TP-31B Control Box Mounting Bracket
TP-5 Flange Gasket TP-33B 1/2” Shut-Off Ball Valve / Inlet Tap
TP-9 Conduit Coupling TP-50 Glo-Bar Ignitor
TP-10 Conduit 4” x 1/2” TP-55A Fan Blower
TP-11 Glo-Bar Ignitor Box TP-65 I 36” Interlocking Turbulator Baffle
TP-12 Glo-Bar Ignitor Box Cover TP-68B Large Strain Relief Bushing with Lock Nut
TP-13 8 x 1/2” Self-Drilling Screw TP-70 Control Box Cover Gasket (per foot**)
TP-14 Sight Glass Gasket TP-76 Rubber Grommet
TP-15 Sight Glass TP-82 Reflector Center Support (RCS)
TP-16 Sight Glass Washer TP-83 24” Stainless Steel Flexible Gas Connector
TP-17 Sight Glass Kit TP-83A 24” PVC Coated S.S. Flexible Gas Connector*
TP-19B 4” Wire Hanger with Tension Spring TP-84 1/2” Female / Male Flare Fitting
TP-19E Optional 4” Elongated Wire Hanger* TP-97 1/4” x 1/4” Brass Int./Ext. Atmos. Barb Fitting
TP-20C 120” Aluminum Reflector TP-105 Aluminum Reflector End Cap
TP-20D 120” Stainless Steel Reflector* TP-106 Reflector End Cap Clips (8 pcs.)
TP-21B 4” Standard Tube Clamp TP-113 Reflector Tension Spring
TP-26F 10 ft. Uncoated (ALUM) Combustion Tube TP-114 Plastic Air Orifice with Screen
TP-26G 10 ft. Uncoated (AL-TI) Combustion Tube TP-200A Burner (65-100 MBH Models)
TP-26C 10 ft. Hot Rolled Steel (HRT) Radiant Tube TP-201B Burner (125-150 MBH Models)
