steP 8

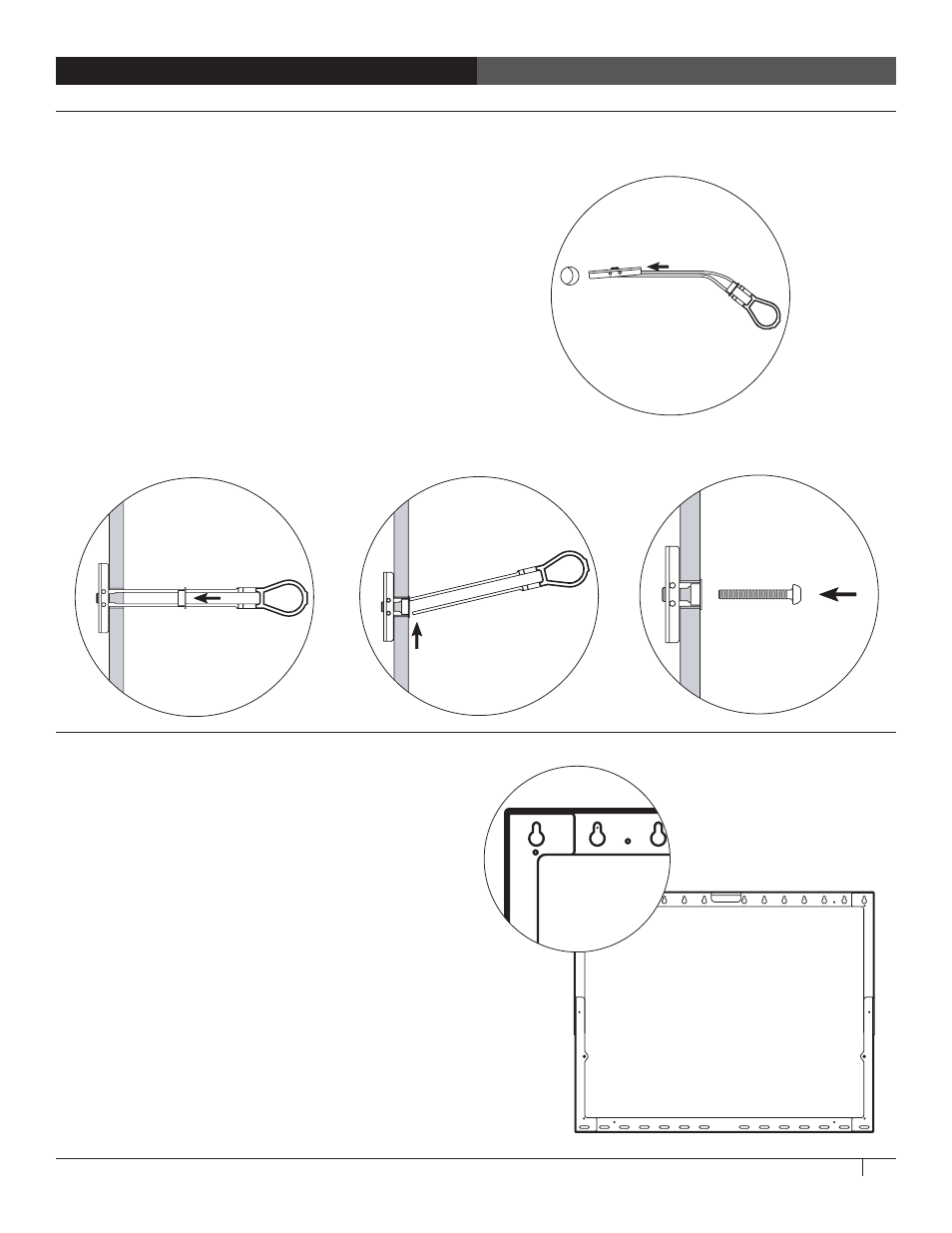

install one toGGler™ for Drywall installation
¡
Drill 1/2” diameter hole in your wall at the mounting
point.
¡
Insert a TOGGLER into a hole, metal end first.
¡
Pull the plastic ring end so the metal channel rests
flush behind the wall. With your other hand, slide the
plastic cap along the straps until the flange of the cap
is flush with the wall.
¡
Place your thumb between the plastic straps. Push
side to side, snapping off the straps at the wall.
¡
Insert a 1-5/8" long screw into the TOGGLER, but don’t
tighten all the way. Leave the bolt head about 1/4”
from the plastic cap.
steP 9
install remaining toGGlers
this is a two-person step!
¡
Lift the eNook Frame onto the bolt. Using a level to
make sure that the Frame is level, mark the second
mounting point as shown. Be sure that you mark your
spot in the center of the small keyhole!
¡
Mark the third and fourth mounting points along the
bottom hole array. Set aside the Frame.
¡
Drill 1/2” diameter holes on the 2nd, 3rd, and
4th mounting points and install TOGGLERs as
instructed above.
A
B
C
D
