welcome
Thank you for purchasing eNook ® !
This installation is a two person job.
If you have any questions or if we
can help you in any way, please
contact us at 800.325.3841.
note: We provide do-it-yourself
hardware and instructions for
installation to wood studs and dry
wall. Your eNook can be mounted
to other surfaces (like concrete
and brick), and this work should be
done by a qualified contractor.
PArts list
These instructions are for Anthro’s eNook.™ Before beginning
assembly, please take a moment to review the parts list below
to verify that your shipment is complete.
The following tools are required but not included:
¡
Power Drill
¡ 1/8" drill bit (for mounting to wood wall studs)
¡ 1/2" drill bit (for mounting to drywall)
¡ Phillips screwdriver (or Phillips bit for your drill)
¡ Level
¡ Stud Finder (for mounting to drywall)
2

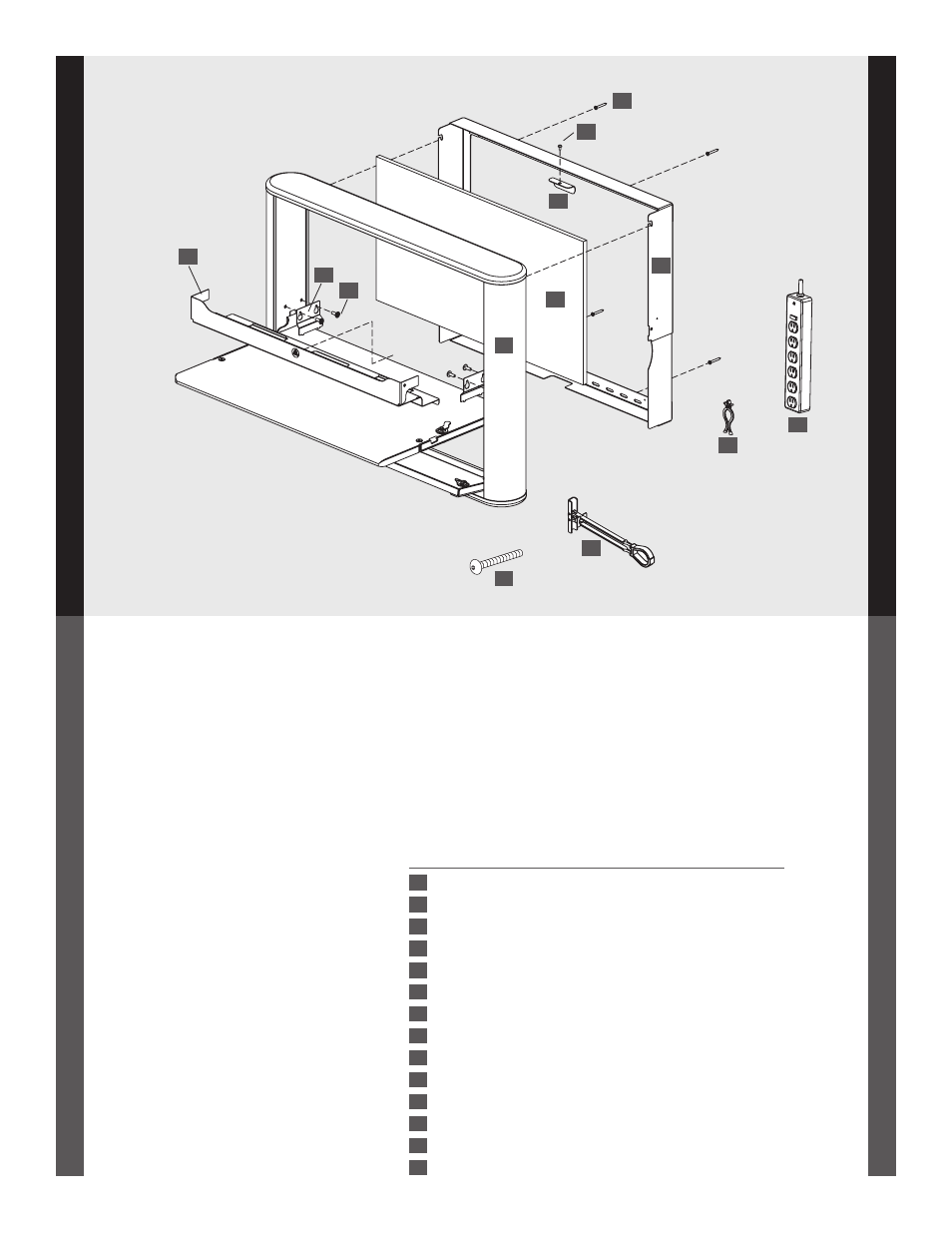

Product Quantity Part number
01 eNook Wall Frame 1 225-2247-23
02 6 Outlet Surge Protector 1 400-5190-06
03 1.5" Screws 4 325-5358-00
04 Workstation Screws 4 325-5092-00
05 3/8" Screw 1 325-5172-00
06 Cable Clips 6 175-5217-00
07 Toggle Bolt Dry Wall Anchor 4 325-5394-00
08 1-5/8" Screws 4 325-5086-00
09 Anthro Hex Driver (not shown) 1 375-5000-00
10 Cross Tray 1 225-2408-23
11 Main Unit 1 835-5200-xx
12 Pinch Cover 2 225-2418-23
13 Tack Board 1 100-6603-xx
14 Tack Clip 1 225-2424-23
08
01
02
06
04
03
05
07
12
14
10
11
13
