4 Questions? Call us at 800.325.3841 or visit anthro.com. We’re happy to walk you through the assembly!
steP 6
Attach lower screws to studs
¡ Once the frame is on the wall, mark the mounting points for lower screws into the same studs.
¡ Using the 1/8" drill bit, drill one hole in each stud about 1-1/2" deep.
¡ Attach the 1-1/2" long screws and tighten all four screws fully so that the Frame is snug against the wall.
Proceed to Step 11 for Monitor version; proceed to Step 12 for the Laptop version.
steP 5
lift enook Frame onto screws
¡ Lift the eNook frame onto the first mounting screw. Keyhole slots
on the frame are spaced every 2", so you can position the eNook
where you want it.
¡ While one person holds the eNook frame level, the second person
marks the installation point of the second 1-1/2" long screw. Make
sure that the second screw goes into a stud, too!
¡ Remove the frame from the wall and drill the second hole with the
1/8" drill bit.
¡ Using a Phillips driver, attach the second 1-1/2" long screw. Stop
tightening when the screw head is abut 1/4" away from the wall.
¡ Lift the frame onto the two mounting screws.
steP 7
Determine the mounting Point on Drywall
¡ Determine the optimal desk height for the eNook
work surface, refer to image for typical shelf heights.
¡ For the 36w eNook Pro, measure up 14-3/4" from
the shelf location and mark that point. For the
28w eNook Pro, measure up 14-1/4" from the shelf
location and mark that point.
¡ Once you determine the right height for your eNook
mark one mounting point hole location. When
choosing the first mounting point, remember that the
two upper mounting points should be at least 16"
apart to keep the eNook stable. To help you visualize
where eNook will be on your wall, use the eNook
Frame as a template.
14.75"
23"

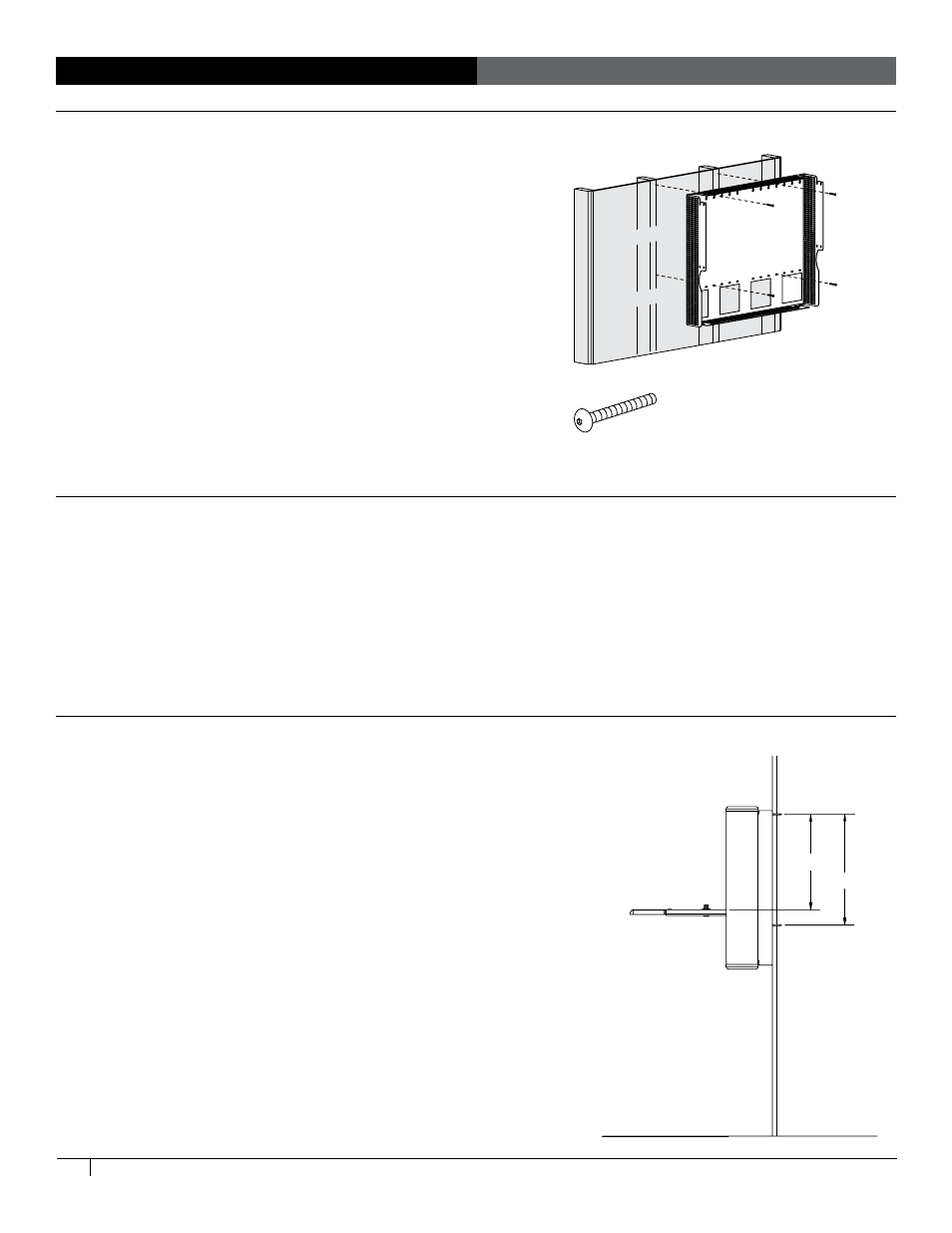

image: show the back panel of the 36w enook Pro on a wall
with the four mounting screws aligned and hovering.
ADD FAstener imAGe
36w version shown
1-1/2" screw
325-5358-00
