ive Users Manual - Models ICL-R & IC215S-R

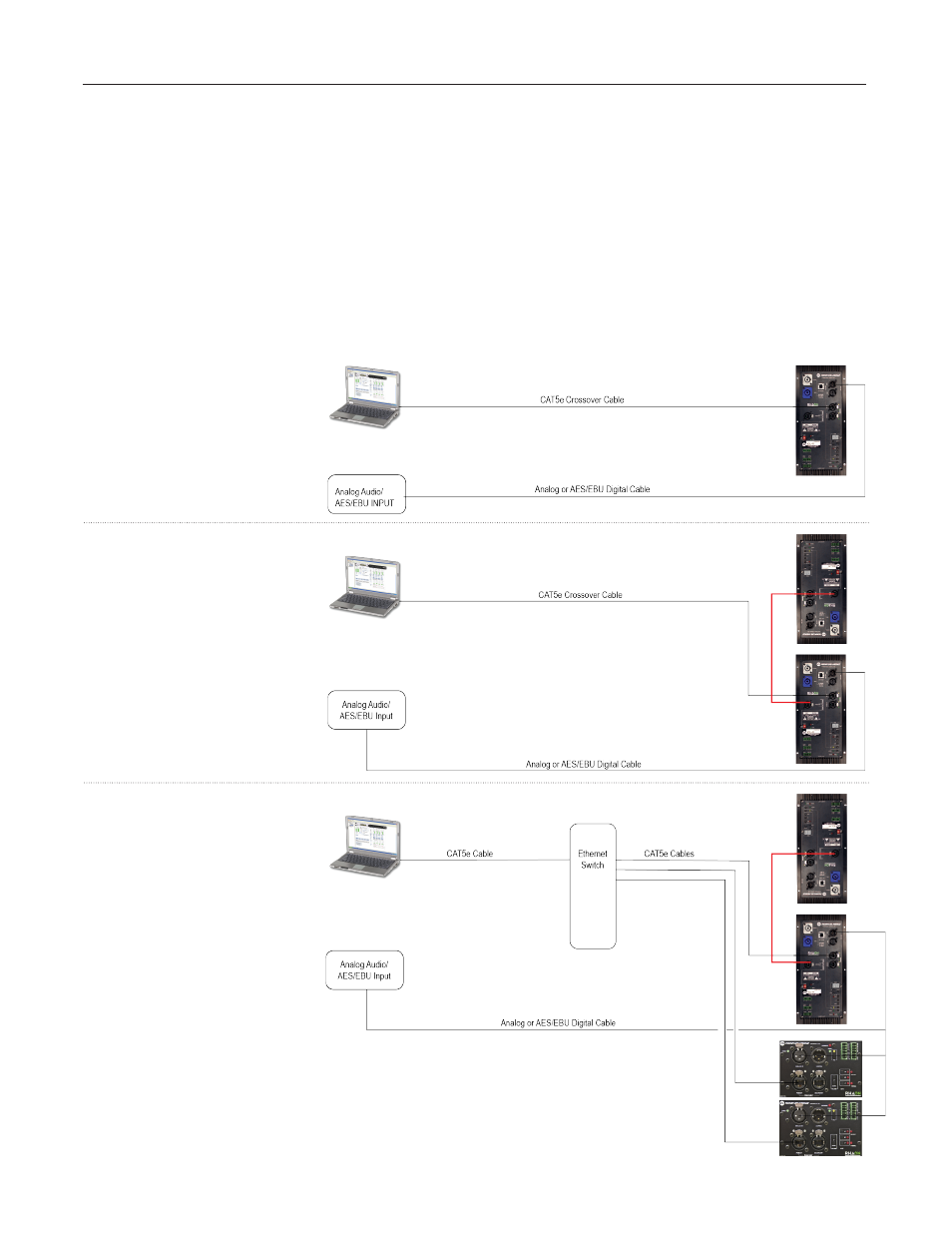

System Wiring With PC Control

Notice that no Ethernet switch is needed in single array setups. Instead, only a simple Ethernet Crossover cable is required.

An Ethernet switch is needed only when there are two or more devices, such as an array and a subwoofer. A stacked array is treated as a

single device since it performs as one even though it has two modules.

Satisfactory 100 BaseT Ethernet switches of many sizes (output ports) are available from a number of sources. Unmanaged switches are

adequate for most applications. Managed switches are not required.

Systems using CobraNet digital audio distribution require either a suitable analog to CobraNet converter or a mixing console with a Co-

braNet output. Suitable analog to CobraNet converters are available from a number of sources, such as Bi-Amp, Peavey and others. The

converter’s output would plug into one of the Ethernet switch ports.

Single

ICL-R Array Setup

with Computer Control

Stacked (Dual)

ICL-R Array Setup

With Computer Control

Stacked (Dual) ICL-R Array

and

Dual IC215S-R Subwoofer Setup

with Computer Control
