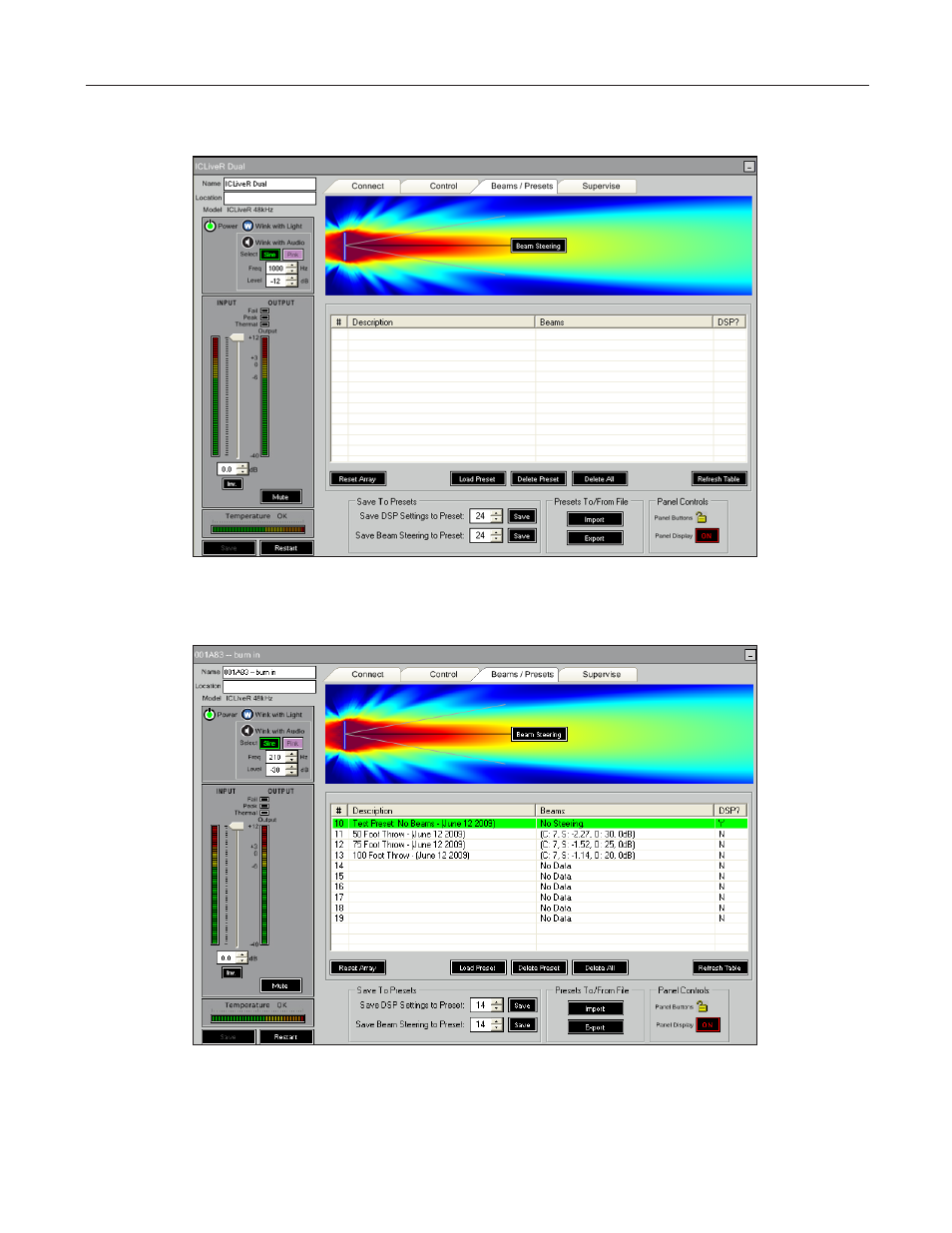

Computer selection of Presets is accomplished in the Beams / Presets window.
If you are operating in the virtual mode (no array connected) the white Presets field will be blank. When an array is connected, the listing
fields will be populated with a list of the Presets stored in the Array’s memory and a green bar will indicate which preset, if any, is loaded
into the array. See below.
The Steering column in the Preset window contains steering information on the Preset. The C: figure identifies the acoustic center location,
the S; figure the aiming angle, the O: figure the opening angle and the final numbers the amount of attenuation assigned to the beam. The
DSP? column shows whether or not the Preset includes DSP data (EQ settings for example).
