ive Users Manual - Models ICL-R & IC215S-R

Updating DSP Firmware (Continued)

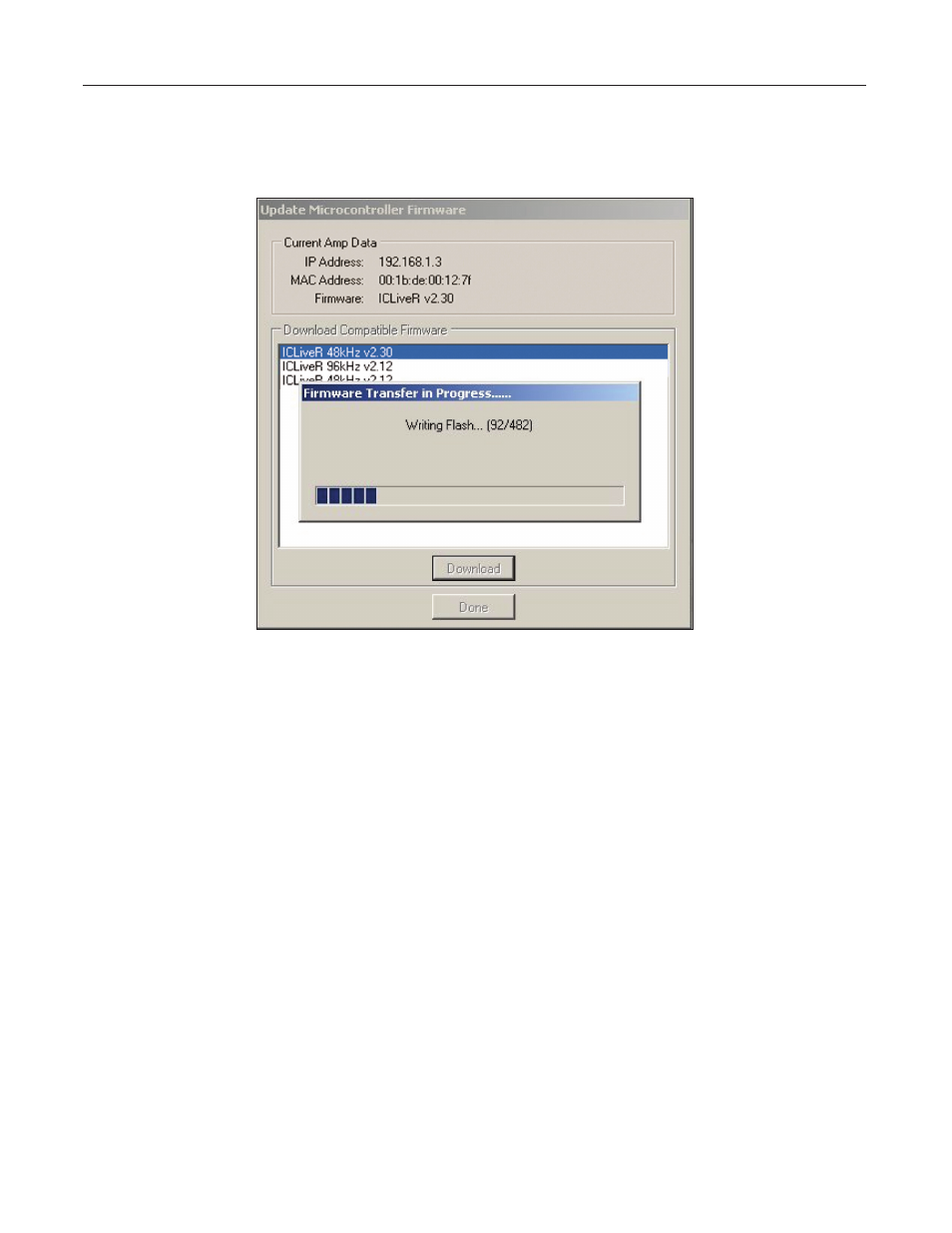

Step 3: Wait for the Firmware transfer to complete. When finished, control will be returned to the dialog window. Select “Done”.

Note: If you are installing the DSP Firmware into a Dual Array (Stacked Array), you need to update both modules. Disconnect the signal

cable from its normal connection to the Master (lower) Module and insert it into the Primary Ethernet input on the Slave (upper) Module

and reset the Dip Switches on the Slave Module to designate it as a Master (set to 00). Then proceed to update the DSP Firmware just as

you did for the lower module.

When the DSP Firmware transfer is complete, select Done. Then disconnect the signal cable from the upper module and reconnect it to

the lower module. Finally, reset the upper modules dip switches to Slave (set to 01).

Please be aware that the Mutes and the Analog Input Pad will be On after the update completes and may need to be reset.
