ive Users Manual - Models ICL-R & IC215S-R
10
ICL-R
Control Panel
Array Connections

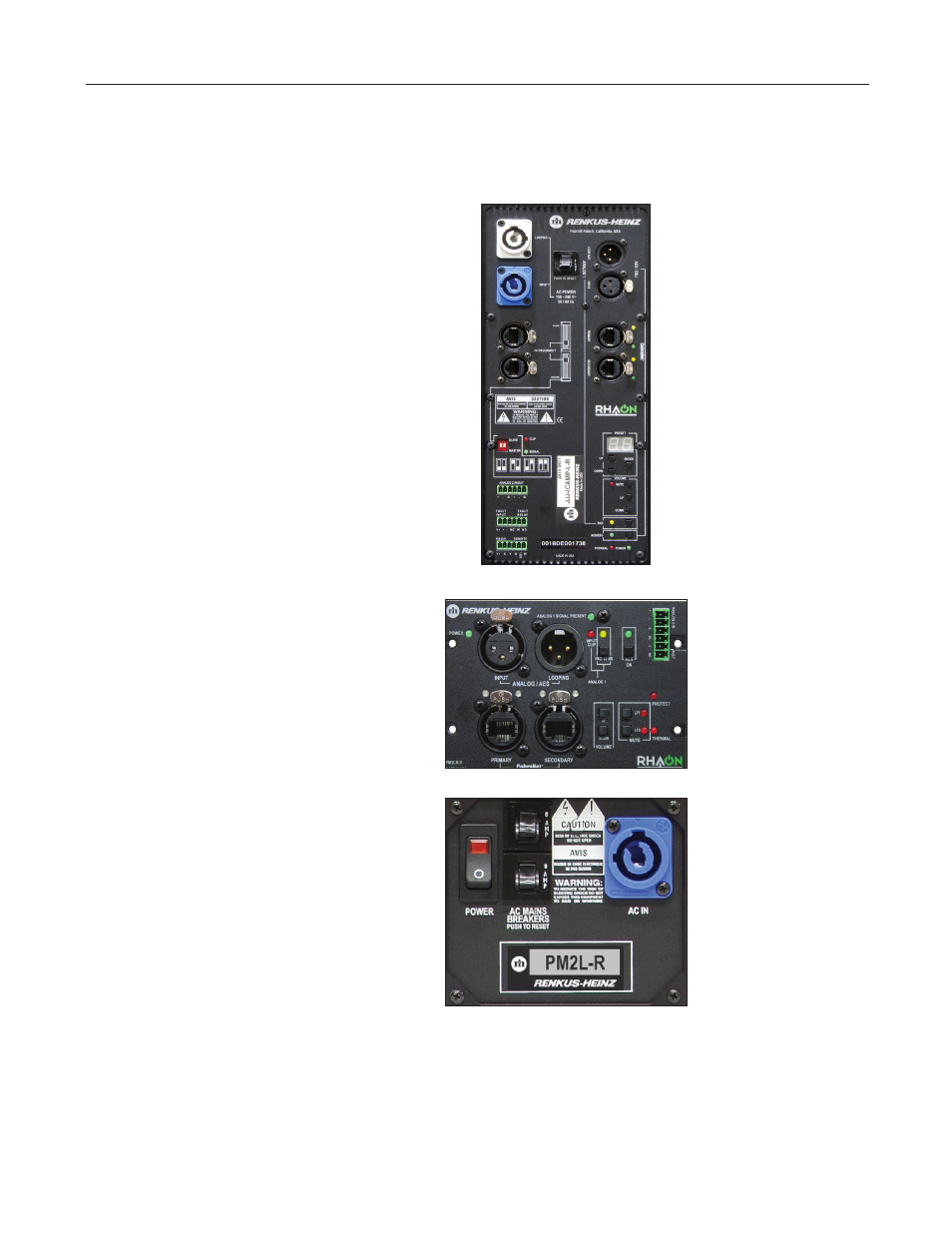

The ICL-R array and IC215S-R Subwoofer Input/Control panels are shown below.
Looping AC Power Connector
90/260 V AC Power Connector
Master/Slave Link Cable Connectors
Master/Slave Setup Switches
Signal Present & Clip
Status Indicators
Analog 1 - AES/EBU Input Connector
Looping Analog -AES/EBU Connector
Primary & Secondary Ethernet
Input Connectors
Preset Controls
Operating Controls
AES/EBU Input Selector
Analog 1 - AES/EBU
Primary Input &
Looping Output
Primary & Secondary Ethernet
Input Connectors
IC215S-R
Input / Control Panel
Analog - AES/EBU
Secondary Input
Mute Controls
Level Controls
IC215S-R
Power Control Panel
Power On / Off
AC Power Connector
Notice that on both the ICL-R and IC215S-R the Analog and AES/EBU inputs share common input connectors. The AES/EBU Input Selec-
tor switches the amplifier between Analog and AES/EBU input modes.
Important: If you are working with a stacked array and one or two subwoofers, make sure your power source (power strip) is adequate to
handle the power drain. A stacked array will draw up to 13 Amps at 120 Volts and each IC215S-R needs a 15 Amp source.
