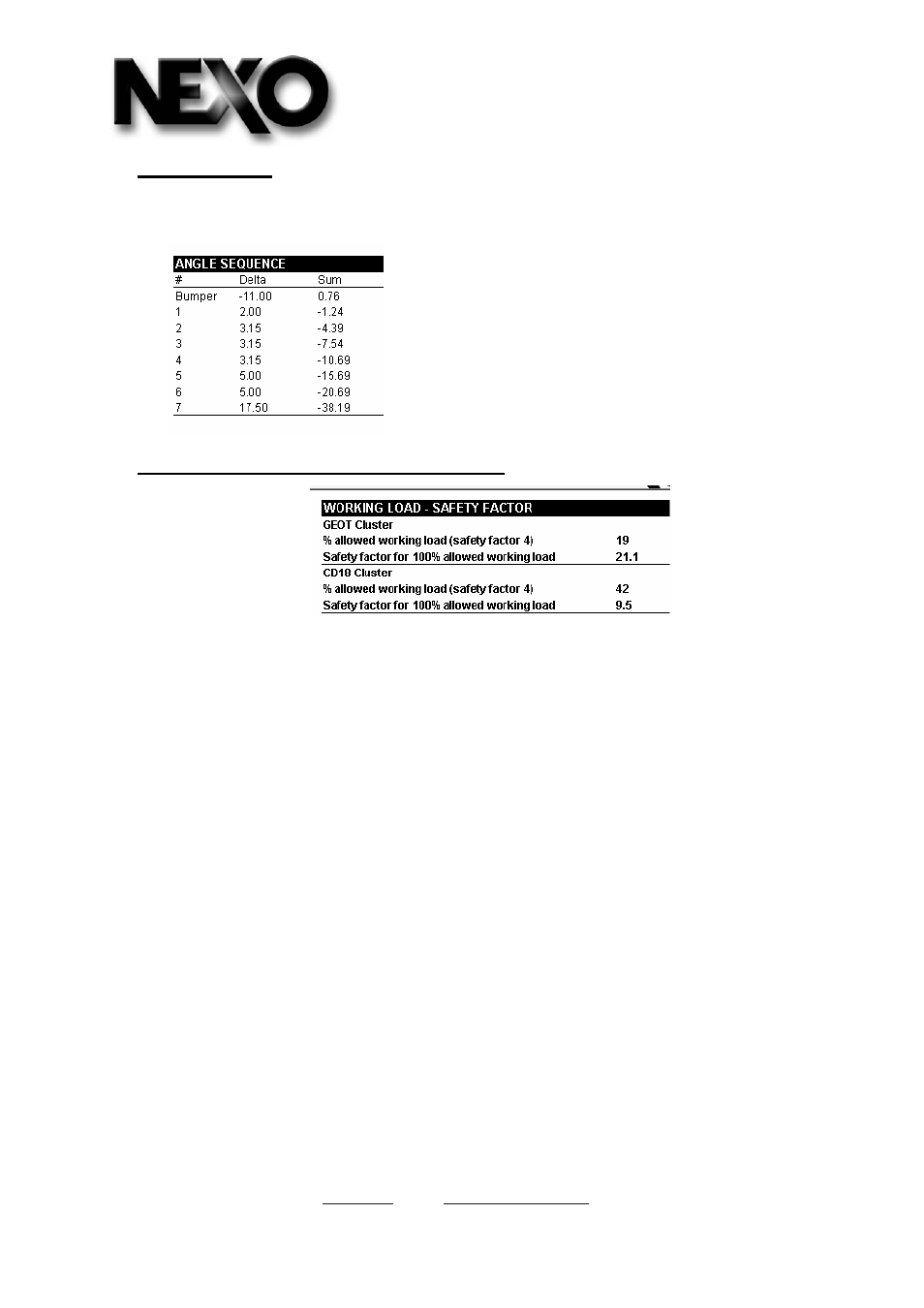

Angle Sequence

Delta: Inter Cabinets Angle Sequence

Sum: Cumulative Angle Sequence

Working Load – Safety Factor – Lifting Factor

GeoT cluster - Percentage of Allowed Working Load

Is based on the ratio of all applied moments and forces to their limit

Is determined by the component which is the closest to its limits

Corresponds to a Safety Factor of 4 when is equal to 100%

Must not be above 100% (turns red if so)

GeoT cluster - Safety Factor for 100% of Allowed Working Load

Project configuration Safety Factor

Must not be below 4 (turns red if so)

Can be used to comply with local regulations

CD18 cluster - Percentage of Allowed Working Load
