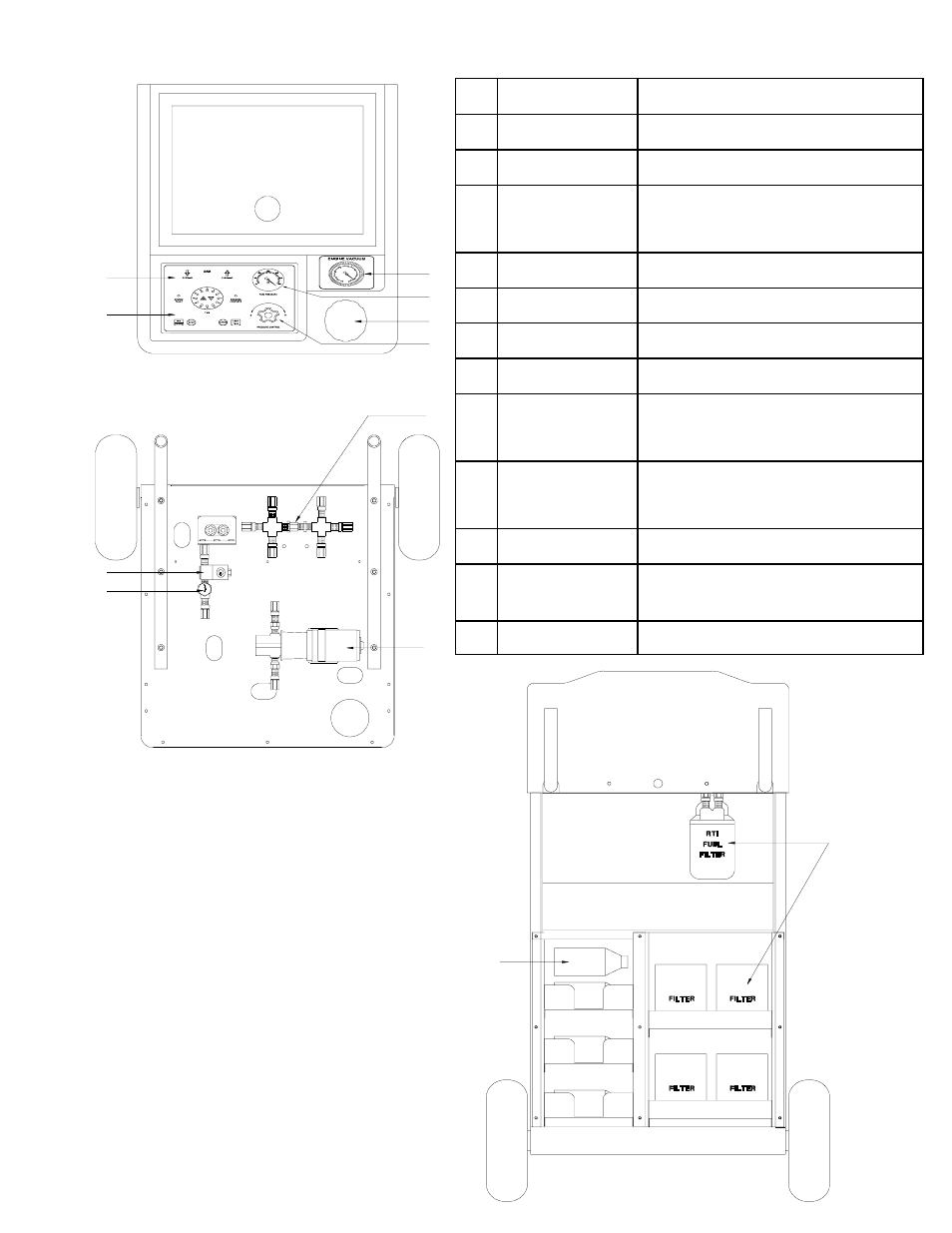

PARTS IDENTIFICATION
Part No.
Description
1
024-80080-00
Keypad Overlay ESX
2
024-80081-00
Circuit Board ESX (12VDC)
3
025-80333-00
2-Way Solenoid (Viton)
1/4 FPT (12VDC)
4
022-80111-00
Pressure Switch 4-6 psig
5
026-80238-00
Gauge 30"- 0 PSIG (2 1/2")
6
026-80252-00
Gauge 0 - 160 PSIG (2 1/2")
7
021-80164-00
Spout Fill Assy ATX/ESX
8
022-80113-00
Needle Valve (Viton)
1/4 FPT X 1/4 MPT
9
022-80114-00
Relief Valve 115 PSIG
1/4 FPT X 1/4 FPT (Viton)
10
026-80251-00
Pump Gear .33 GPM 12VDC
11
310-80024-00
RTI FUEL SYSTEM CLEANER
Case of 12 (8 oz bottles )
12
026-80253-00
RTI SPIN-ON FUEL FILTER
