Throttle body injection (tbi) setup, Page 13 – MAHLE RTI ESX-2 User Manual
Page 14
Page 13

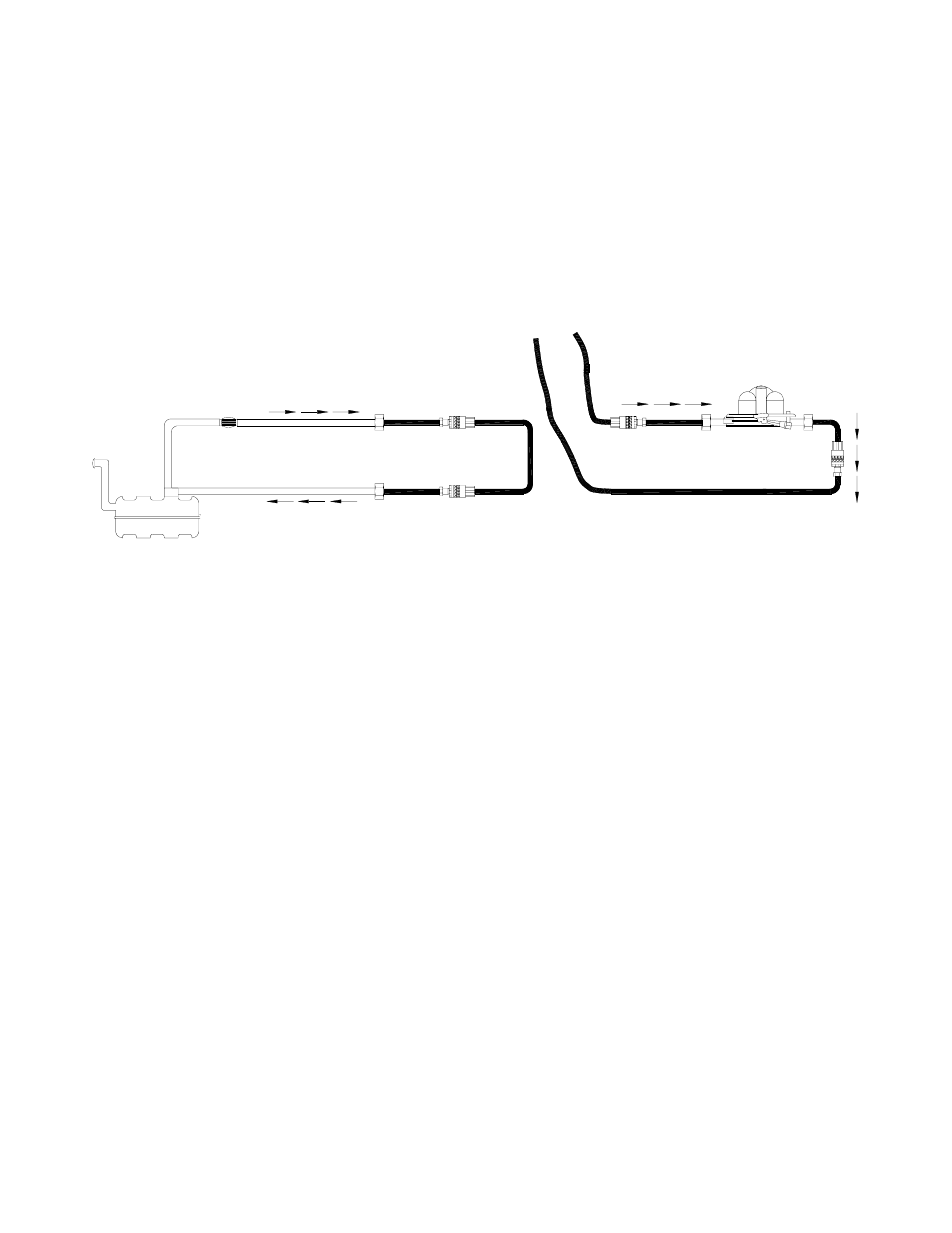

FILTER
VEHICLE FUEL TANK
ADAPTER
RETURN LINE
ADAPTER
PRESSURE LINE
LOOP
ADAPTER
ESX BLACK HOSE
THROTTLE BODY UNIT
PRESSURE LINE
ADAPTER
ESX RED HOSE
RETURN LINE
ADAPTER
Throttle Body Injection (TBI) Setup
14.
Carefully disconnect the Loop adapter from the return lines. Close the valve on the Tee
adapter and carefully disconnect the Tee adapter from the ESX Red Hose and the pressure
lines.
15.
Connect one end of the Loop adapter to the pressure line coming from the vehicle fuel tank.
Connect the other end of the loop adapter to the return line going back to the fuel tank. This
forms a loop making it unnecessary to disconnect the fuel pump. This connection is illustrated
below.
16.
Connect the ESX Red Hose to the pressure line going into the TBI unit. Connect the ESX
Black Hose to the return line coming from the TBI unit. These connections are shown in the
illustration above.
