2-5 IM WX1-07E
1
2
3
Index
Operat
ng
Note
• If you connect to an unsupported devices, “Unknown” is displayed for the model.
• It is not supported in the UP55A’s remote-mode operation. If the operation mode is
REMOTE, it is handled as LOCAL.
• If the result, model name, control mode, control output or option functions found by
automatic model determination differ, the tag list in the tag settings dialog box is initialized.
If the tag list was modified from the initial condition, the message, “OK to initialize tag list?”
is displayed. Click the Yes button to implement the search results and initialize the tag list.
Click the Cancel button to quit without applying the results of automatic model determination
to the model settings page.
・ The automatic model determination function registers the UT55A as the UT551, the UT52A
as the UT520, the UT35A as the UT351, the UT32A as the UT321, UP55A as the UP550
and the UM33A as the UM331. The position proportional type UT35A, UT32A, UP55A and
UP35A are registered as the standard type UT351, UT321, UP550 and UP35A, respectively.
Heating / cooling type UT52A are registered as the Heating / cooling type UT551.
From the above, the one actually connected may differ from the one displayed on screen, as
follows.
Dsplayed Actually connected model
UT551 UT55A, UT52A
UT520 UT52A
UT351 UT35A
UT321 UT32A
UP550 UP55A
UM331 UM33A

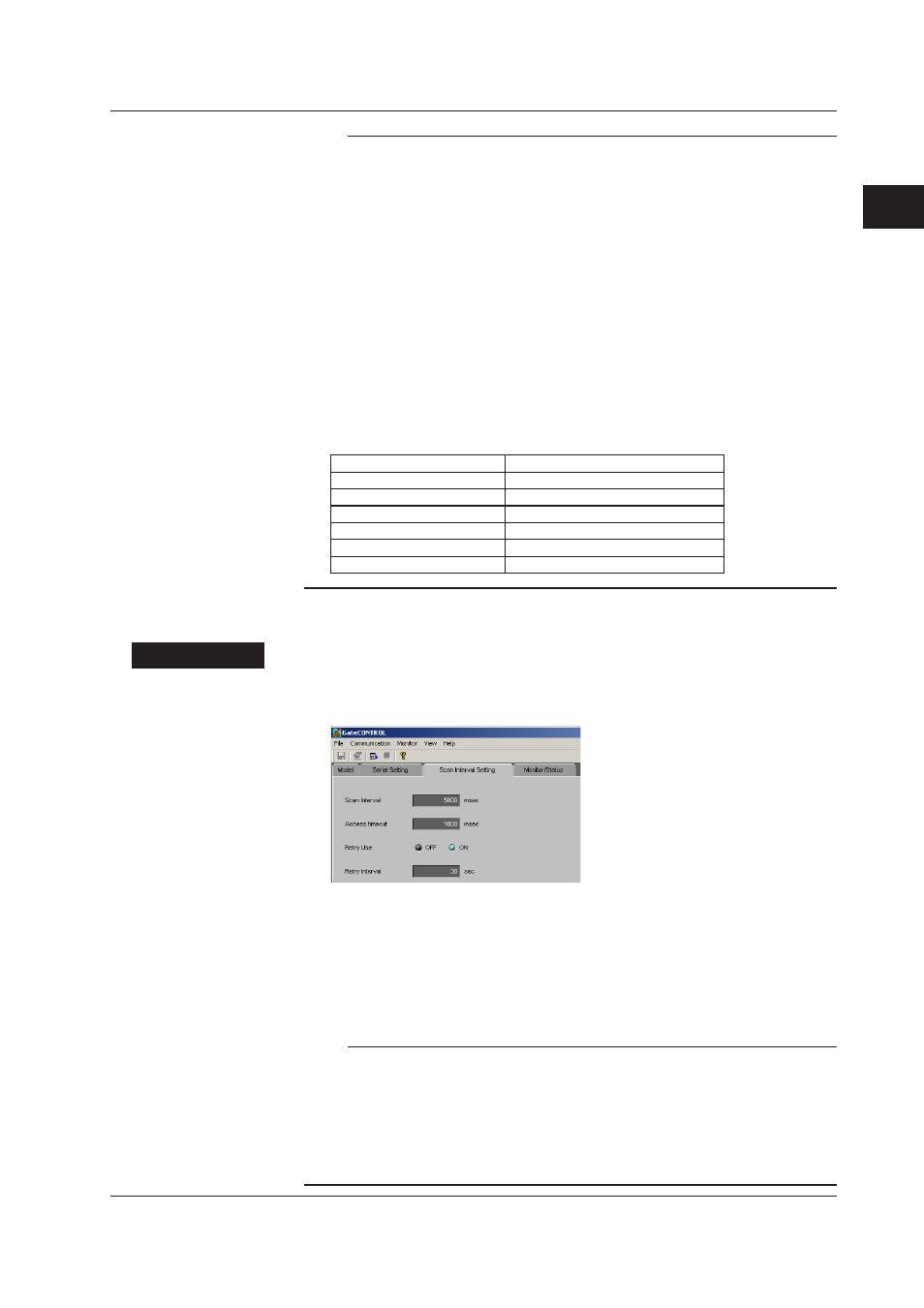

Data Acquston Condtons
Procedure
1. Click the Scan Interval Settng tab or choose Vew > Scan Interval Settng from
the menu bar.
2. Set the scan interval, access timeout, retray use, and retry interval.
Scan interval: 0.5–60 s (or 500–60000 ms: initial value is 1000 ms)
Access timeout: 1–10 sec (or 1000–10000 ms: initial value is 5000 ms)
Retry Use: Select whether or not to retry communications (ON/OFF).
Retry interval: The interval between communication retries (30–3600 sec).
Note
• Retries are performed every scan interval at the specified retry interval until communication
is restored. Retries are also performed on instruments with which a communication error
occurred during the first communication. At the point that communication is restored, alarm
values and other information are retrieved from the connected temperature controllers or
signal conditioners and data is acquired.
• If Retry is turned OFF, you can retry the connection manually by clicking the Retry
Connection button on the Monitor/Status tab.
2.2 Enterng Envronment Settngs
